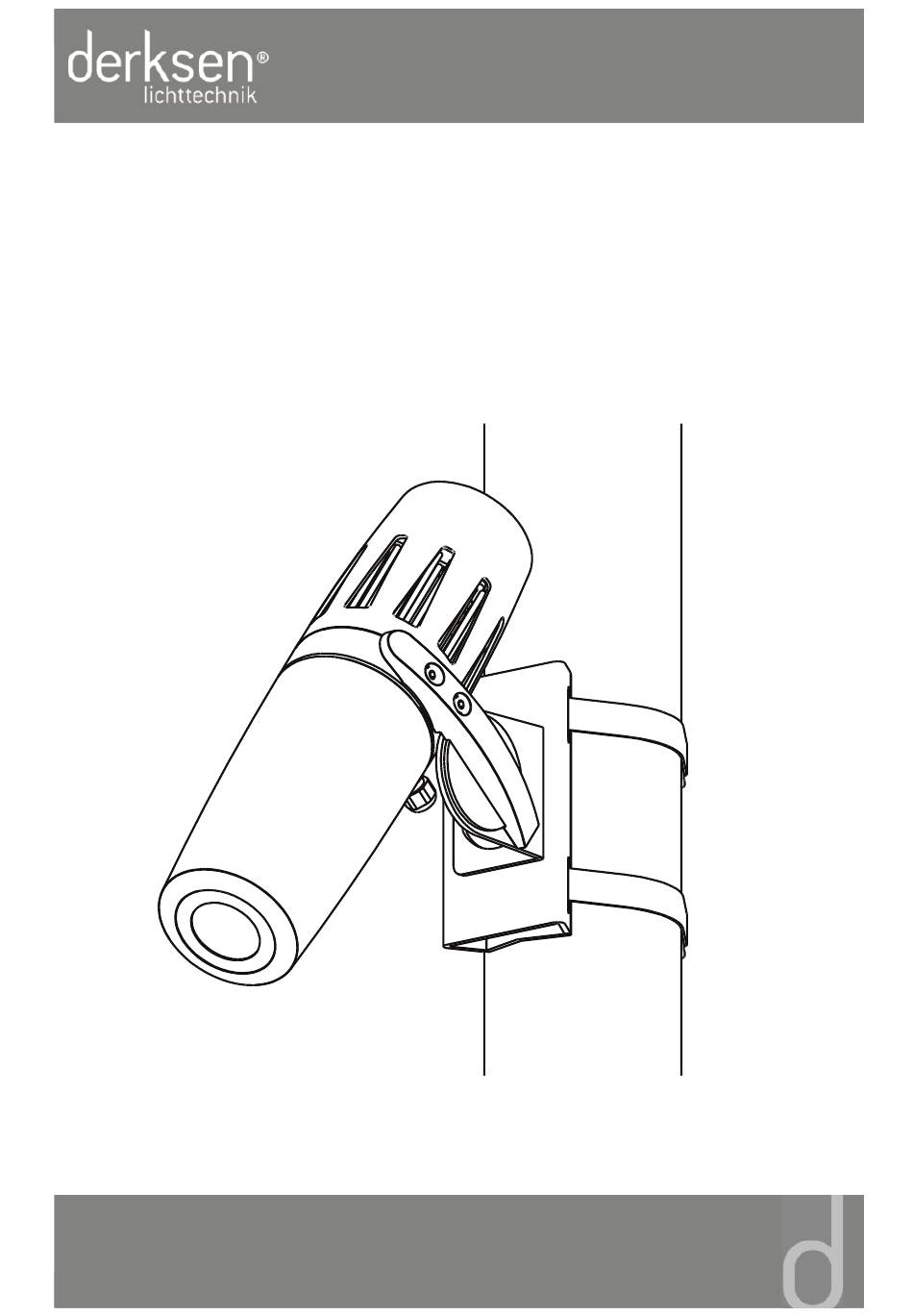

- Page 1 PHOS 25–85 pole mount LED-projector moun�ng / comissioning / opera�ng PHOS pole mount 1 / 28...
- Page 2 Brand names and trademarks used: All product designa�ons men�oned in this document are trademarks of the respec�ve companies. Technical and design features may be subject to change. For any technical enquiries, please contact our customer service: info@derksen.de 2 / 28 Derksen Lich�echnik...
-
Page 3: Table Of Contents
Table of contents 1. Safety instruc�ons ........................4 1.1. General understanding of safety ....................4 1.2. Intended use ..........................4 1.3. Danger of electric shock......................4 1.4. Heat and fire hazard ......................... 5 1.5. Op�cal radia�on hazard ......................5 1.6. Assambly instruc�ons ......................5 2. -
Page 4: Safety Instruc�Ons
�on mo�fs or objects in the projector! The projector shock and fire and must be replaced immediately. can be damaged by unsuitable projec�on mo�fs and can result in fire. • Only operate the device with a fully enclosed housing. 4 / 28 Derksen Lich�echnik... -
Page 5: Heat And Fire Hazard
Safety instruc�ons • Never pour or spray any liquids on the projector. The • Never look directly into the beam of light at close ran- projector is only suitable for indoor use in dry areas ge (<1 m). Permanent eye injury may occur if you ex- and must never be exposed to rain or humidity. -
Page 6: Overview Of The Phos Pole Mount
⑤ & ⑥ ⑮ Mast / support system projector head Knurled screws for gobo case-holder and ⑦ & ⑨ ⑯ Mounting plate projection lens holder ⑧ Gobo case ⑰ Power cable with 4-pin/8-pin plug ⑩ Projection lens 6 / 28 Derksen Lich�echnik... -
Page 7: Defini�On Of Terms
Defini�on of terms 3. Definition of terms Term Defini�on An op�cal device that uses an internal light source (LED) to display a two-dimensional LED projector template (gobo) on an image surface. Light Emi�ng Diode Semiconductor component that emits light. Projec�on mo�f Gobo A glass template used to display logos, pa�erns, texts or images with a projector. -
Page 8: Assembly And Installa�On
Plastic masts are not suitable. • Use only original accessories and spare parts from Derksen that have been specially designed for fitting to the device. Do not modify, disassemble or damage the mounting accessories, as they may then not meet the safety requirements. - Page 9 Assambly Assambly Thread the mounting strap into the mounting plate. The angled surfaces of the mounting plate and the turnbuckle, which will later surround the mast, must be aligned. Loop the mounting strap around the mast. As far as possible, position the turnbuckle opposite the moun- ting plate and ensure that the head of the clamping screw is on the top.
- Page 10 10. Lock the clamping screw with the nut to prevent loo- sening as a result of vibration. 11. Repeat steps 1 to 10 to fit the second mounting strap. 10 / 28 Derksen Lich�echnik...
-
Page 11: Fi�Ng The Moun�Ng Bracket
Assambly 4.2. Fitting the mounting bracket When completing the following steps, ensure that you fit the screws, spring rings and washers in the sequence specified. Use the hexagon socket wrench supplied to do Position the mounting bracket over the fixing arm of the PHOS pole mount so that the centre hole is over the upper thread. -
Page 12: Assembling The Projector
Fit the cylinder head screw (c.) with spring ring (b.) and washer (a.) into the long hole. The mounting plate has two threaded holes to allow fitting in any position. a. b. c. 12 / 28 Derksen Lich�echnik... -
Page 13: Electrical Installa�On
Installa�on 4.4. Electrical installation The electrical connection can be implemented in various ways, depending on the design of your projector. The projector heads of the PHOS 25 and PHOS 45 have a power cable with a 4-pin plug for direct connection to the IP-certified electronic ballast. - Page 14 Ensure the device is powered with the power supply voltage specified on the product data sheet (230 V) and your supply cable is connected to a protective conductor via the corresponding contact on the termi- nal block. 14 / 28 Derksen Lich�echnik...
- Page 15 Installa�on Lock the sleeve with the threaded sections of the strain relief using the specified torque. 2,5 Nm Screw the caps onto the strain relief using the specified torque. 2,5 Nm PHOS pole mount 15 / 28...
-
Page 16: Se�Ng Up And Opera�Ng The Projector
This can take a few days. If moisture still condenses on the front glass, the drypack must be replaced (see sec- tion 5.5). Remove visible water droplets with a dry cloth. • Carefully remove the casing from the projector head. 16 / 28 Derksen Lich�echnik... -
Page 17: Inser�Ng/Changing The Gobo
Se�ngs 5.1. Inserting/changing the gobo 1. Loosen the knurled screw. 2. Remove the gobo case. Unscrew the gobo case halves. Insert the gobo into the case with the motif back-to- front. The front side must face the light source. (Note: Touch only the edges of the gobo when inser- ting it into the case.) Ensure that the gobo is placed flat in the case. -
Page 18: Adjus�Ng The Focus Of The Mo�F
Tighten the screw in the rotation point. 5.3. Adjusting the focus of the motif Loosen the knurled screw. Reposition the projection lens within the case until the motif is in focus. Tighten the knurled screw. 18 / 28 Derksen Lich�echnik... -
Page 19: Aligning The Mo�F
Se�ngs 5.4. Aligning the motif Loosen the knurled screw until the gobo case can be rotated. Rotate the gobo case until the motif has been aligned as desired. Tighten the knurled screw. 5.5. Changing the drypack 1. Release the two countersunk screws and remove the drypack holder from the support rail. -
Page 20: Locking The Projector Head
The sealing ring must not be contaminated with oil, lubricant or other agents. Screw the casing onto the projector head with at le- ast 6.0 Nm to ensure that it is leak tight. 20 / 28 Derksen Lich�echnik... -
Page 21: Cleaning
This directive was enacted in German law with the national Electrical and Elec- tronic Equipment Act (ElektroG). In accordance with the ElektroG, Derksen Lichttechnik GmbH is registered as a manufacturer on the German EAR register (Register of Used Electronic Devices). WEEE Reg. No.: DE 98055625 Our products are manufactured exclusively for the B2B (business to business) sector, and they must not be disposed of with household waste or at collec�on points at local public waste disposal facili�es. -
Page 22: Technical Specifica�Ons
20045510 – white 20065510 – white 20085510 – white Order numbers 20025520 – black 20045520 – black 20065520 – black 20085520 – black 20025530 – silver 20045530 – silver 20065530 – silver 20085530 – silver 22 / 28 Derksen Lich�echnik... -
Page 23: Dimensions
Technical specifica�ons 8.2. Dimensions Depending on the focal length of the projection lens selected, the total length A of the projector head is as follows: Projection lens focal length PHOS pole mount 25 – 85 Extra wide angle, f=45mm 16.3 in / 415 mm Wide angle, f=63mm 15.4 in / 392 mm Standard, f=85mm... -
Page 24: Projec�On Sizes
Ultra wide-angle lens, f=45 mm, 48° Colour code for projec�on brightness = under normal interior ligh�ng, suitable for coloured pa�erns = in poorly lit rooms, for colourless pa�erns = recommended only for darkened rooms 24 / 28 Derksen Lich�echnik... - Page 25 Technical specifica�ons Wide-angle lens, f=63 mm, 35° • The results presented here are approximate values. The result may deviate from reality. • The projec�on sizes provide the maximum diameter that can be projected with a ø 40 mm image. • The projec�on pa�ern is circular and fills the gobo’s image area.
- Page 26 Technical specifica�ons Standard lens, f=85 mm, 26° Telephoto lens, f=135 mm, 17° 26 / 28 Derksen Lich�echnik...
-
Page 27: Declara�On Of Conformity
Declara�on of conformity 9. Declara�on of conformity Derksen Lich�echnik Manufacturer: Derksen Lich�echnik GmbH 45889 Gelsenkirchen Johannes-Rau-Allee 4 This declara�on of conformity is issued under our sole responsibility Product: PHOS LED-Projector • PHOS 15 indoor • PHOS 45 downlight • PHOS 85 s pole mount Type: •... - Page 28 Derksen Lichttechnik GmbH Johannes-Rau-Allee 4 D-45889 Gelsenkirchen Tel: +49 (0) 2 09 / 9 80 70-0 E-Mail: info@derksen.de Web: www.derksen.de...
