Sofia Outdoor Setting
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
1
2
long screw
short screw
x12
x12
4
5
nut
washer
x4
x4

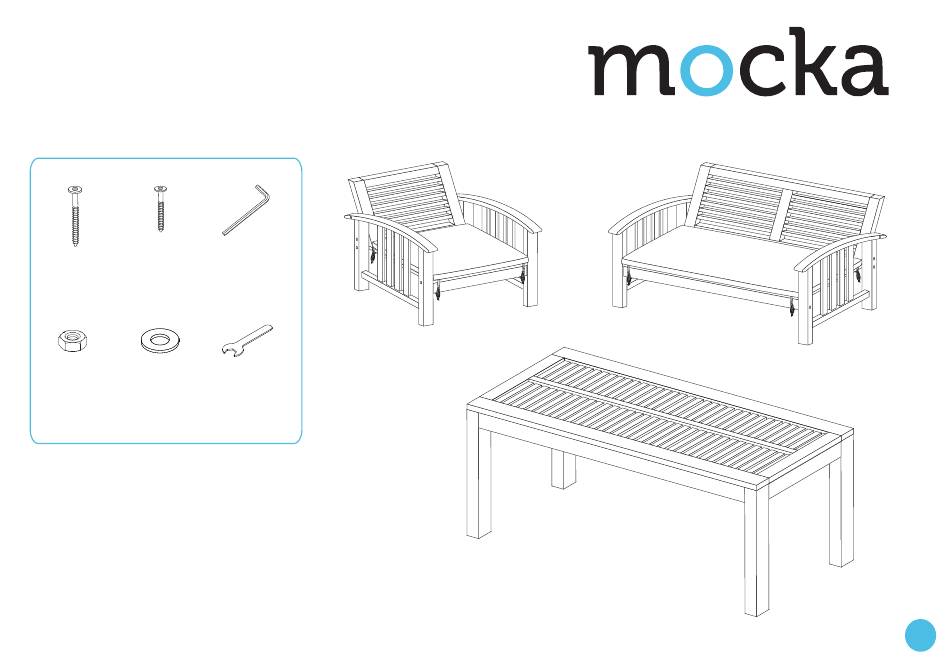

Hardware Supplied
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
3
allen key
x1
6
spanner
x1
1
Advertisement
Related Manuals for Mocka Sofia Outdoor Setting
Summary of Contents for Mocka Sofia Outdoor Setting
- Page 1 Sofia Outdoor Setting Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. long screw short screw allen key washer spanner Hardware Supplied mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 2 Attach 2x panel (A) to panel (B) with 4x bolt [1]. Attach panel (C) to panels (A) with 4x bolt [2]. Tighten all bolts with allen key [3]. Tighten all bolts with allen key [3]. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 3 Place armchair cushion on top of panel [B] and tie the cushion down to Repeat steps 1 to 3 for assembly of second armchair. panel [B]. Once assembled, carefully lift armchair into place, do not drag. You're done, enjoy! mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 4 Attach panel (F) to panels (D) with 4x bolt [2]. Tighten all bolts with allen key [3]. Tighten all bolts with allen key [3]. Repeat steps 4 and 5 for assembly of second bench. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 5 Place bench cushion on top of panel [E] and tie the cushion down to Repeat steps 4 to 6 for assembly of second bench. panel [E]. Once assembled, carefully lift bench into place, do not drag. You're done, enjoy! mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 6 Insert 4x panel (H) into panel (G) and attach with 4x washer [5] and 4x nut [4]. Tighten all nuts with spanner [6]. Once assembled, carefully flip table over and lift into place, do not drag. You're done, enjoy! mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
