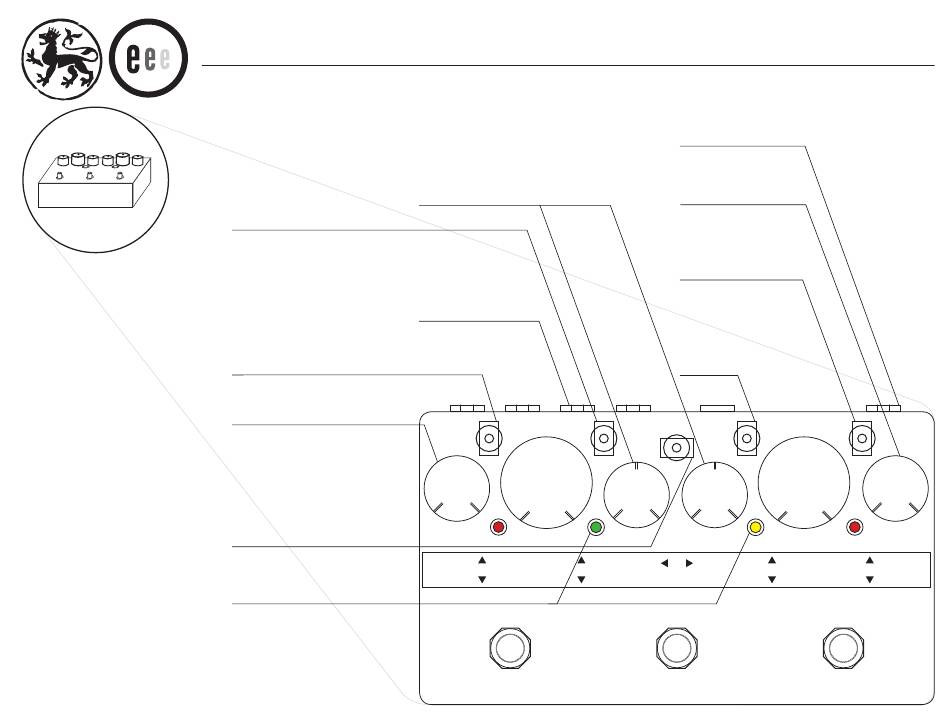

Toneczar Effects Echoczar Instruction Diagram

Delay 1 (Green) - use this channel for
your short delay setting.
Delay 2 (Yellow) - use this channel for
your long delay setting
switch between the two settings at any
time with the Delay 1/2 footswitch
add feedback/self-oscillation at any time
with the Feedback footswitch
if feedback runs away from you, turn
the Safety knob clockwise in small
increments until feedback is controlled
the same Safety setting will provide
a reasonably predictable feedback
response for both Delay 1 and Delay 2
may be used in an amp's effects loop
Parallel loop - set Mix at 100% wet
Series loop - set Mix at 50/50
may be used either before or after
distortion but delay after distortion is
usually preferred
© 2008 Ed Rembold, Toneczar Effects
ed@toneczareffects.com
echoczar
analog stereo delay
EFFECT OUT PHASE-SELECT (switch)
useful in correcting or creating a focused or
wide stereo image when using two amps or
when using both channels of a single amp like a
Fender Twin Reverb
EFFECT OUT MUTE/NORMAL (switch)
one amp: leave switch in the NORMAL position
two amps: when switched to NORMAL the
Direct Out and Effect Out jacks feature
hardwired, true-bypass switching
when switched to MUTE, the Direct Out
jack features hardwired, true-bypass
switching but the Effect Out jack will be
muted when footswitched to bypass
REPEATS
1 repeat at MIN
feedback/self-oscillation at MAX
MULTI-HEAD MODE (center off switch)
add to either the Vintage or Modern Mode
Global - affects both Delay 1 and Delay 2
REVERB - sustains the repeat and adds reverb
S-BACK - adds slapback prior to main repeat
effect will vary with Delay Time settings
WARNING: will self-oscillate with Repeat
knob on MAX in either Multi-Head Mode
CHANNEL INDICATOR LEDS
(GREEN or YELLOW)
flash to the exact delay time setting (tempo)
Actual Size:
4 ¼" deep
7 ½" wide
MIX 1 & MIX 2
individual Mix knobs allow each channel (Delay 1 and Delay 2)
to have a separate mix
for two amp (stereo) applications, the Mix knobs allow any
amount of delayed signal to be sent to the EFFECT amp
from 100% wet (delay only) to any mixture of delay and dry
DRY amp receives 100% dry signal from the Direct Out jack
EXPRESSION PEDAL INPUT
controls number of repeats for
both Delay 1 and Delay 2 or use
a channel insert cable to access
the delay path effects loop
EFFECT DIRECT
OUT OUT
delay 1
green channel
min max
100 ms 1 sec
On/Bypass
(red LED)
NORM
REPEATS DELAY 1
FX OUT
MUTE
ON/BYPASS
2 ¼" tall
EXPRESSION PEDAL INPUT
controls Delay 2 (yellow) delay time
SAFETY
active only in the Feedback Mode
wild feedback/self-oscillation at MIN
dampened feedback/self-oscillation at MAX
VINTAGE/MODERN MODE (switch)
Vintage Mode - 100ms to
over 1 second, warm and thick
Modern Mode - 50ms to over 750ms,
brighter with more detail
ECHO/DELAY MODE (switch)
Echo Mode features repeats
which decay in a natural
manner, with soft feedback
Delay Mode features repeats
which can go on and on with
choppy feedback
IN 18 VDC IN
50/50 mix 50/50 mix
100% 100% 100% 100%
dry wet dry wet
Delay 1
(green LED) (yellow LED)
multi-head
reverb off s-back
IN ECHO
MIX 1 MIX 2
PHASE MODE
echoczar
OUT DELAY
DELAY 1/2
instruction diagram
delay 2
yellow channel
min max
100 ms 1 sec
Delay 2 Feedback On
(red LED)
VINT
DELAY 2 SAFETY
MODE
MOD
FEEDBACK
