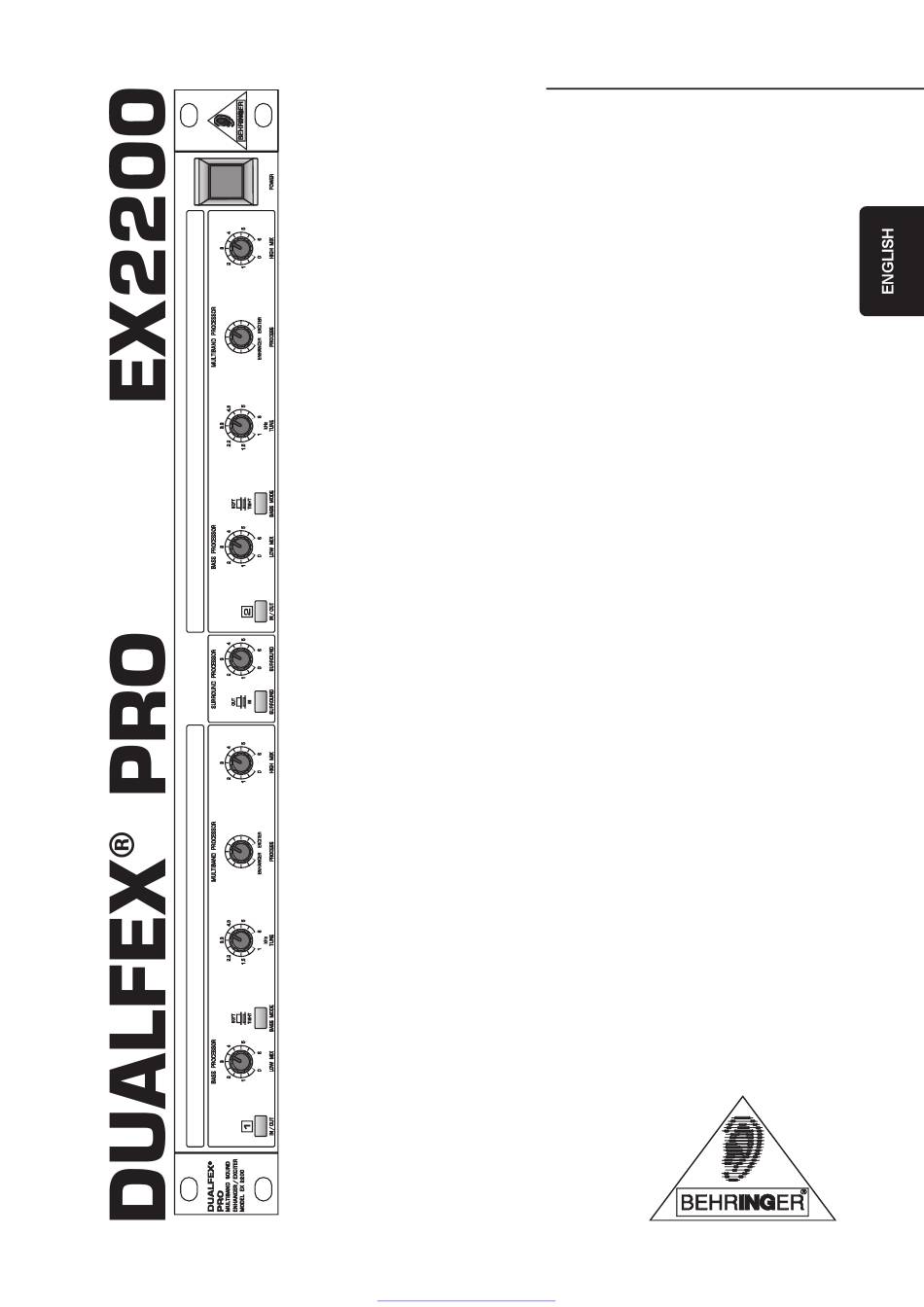

- Page 1 User’s Manual Version 1.3 April 2001 www.behringer.com See more at http://safe-manuals.com...
- Page 2 DUALFEX PRO EX2200 SAFETY INSTRUCTIONS CAUTION: To reduce the risk of electric shock, do not remove the cover (or back). No user serviceable parts inside; refer servicing to qualified personnel. WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
- Page 3 Welcome to the team of DUALFEX PRO users and thank you very much for expressing your confidence in BEHRINGER products by purchasing this unit. It is one of my most pleasant tasks to write this letter to you, because it is the culmination of many months of hard work delivered by our engineering team to reach a very ambitious goal: making an outstanding device better still.
- Page 4 DUALFEX PRO EX2200 DUALFEX ® Professional and multi-purpose Sound Enhancement system for studio and home applications s Gives your music that extra sparkle and makes your instruments and mixes stand out s Releases untapped resources and details instruments, vocals and mixed program material s Multiband concept for bass power and high frequency transparency s “Natural Sonic”...
-
Page 5: Table Of Contents
DUALFEX PRO EX2200 TABLE OF CONTENTS 1. INTRODUCTION........................6 1.1 The Design Concept ........................6 1.2 Before You Begin ..........................7 1.3 Control Elements ..........................8 1.3.1 The Bass and Multiband Processor Section ................8 1.3.2 Surround Processor Section ....................9 1.3.3 Rear Panel Control Elements of the DUALFEX PRO ............. -
Page 6: Introduction
The DUALFEX PRO is one of our state-of-the-art sound enhancement systems offering a special combination of sound improvement designs. The unit can be used wherever professional sound improvement is required. The BEHRINGER DUALFEX PRO is the no-compromise answer when the situation demands a no-compromise solution. -
Page 7: Before You Begin
Shipping claims must be made by the consignee. The BEHRINGER DUALFEX PRO fits into one standard 19" rack unit of space (1 3/4"). Please allow at least an additional 4" depth for the connectors on the back panel. -
Page 8: Control Elements

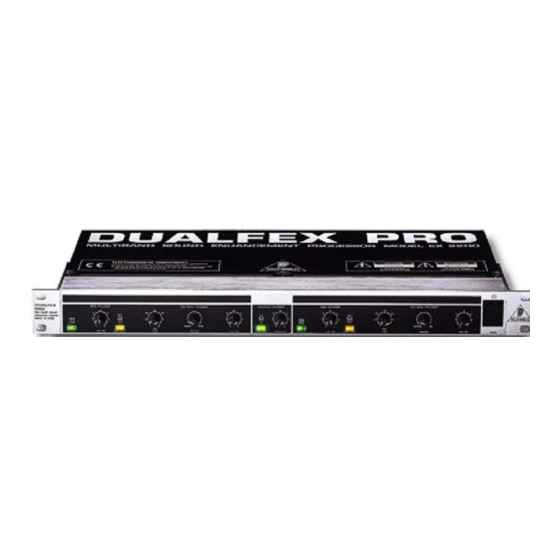

DUALFEX PRO EX2200 1.3 Control Elements Fig. 1.1: DUALFEX PRO front panel The BEHRINGER DUALFEX PRO has two identical channels and provides two illuminated push-button switches and four rotary controls. 1.3.1 The Bass and Multiband Processor Section Fig. 1.2: Controls of the bass and multiband processor section The IN/OUT switch activates the corresponding channel into operation. -
Page 9: Surround Processor Section
14 days after the date of purchase, so as to be entitled to benefit from our extended warranty. Or use our online registration option available on the World Wide Web under www.behringer.com. FUSE HOLDER / VOLTAGE SELECTOR. Please make sure that your local voltage matches the voltage indicated on the unit, before you attempt to connect and operate the DUALFEX PRO. -
Page 10: Applications
1. If your mixer features subgroup outputs with insert points, you can process the subgroups separately. 2. You can also combine monitor and effect paths and route them via the BEHRINGER DUALFEX PRO to a free input channel. The respective signals have to be taken “pre-fader”, the respective channels must be muted. -
Page 11: Enhancing The Sound Of Tape Duplication
2. The sound of any PA system will be improved by using the BEHRINGER DUALFEX PRO. For example, the vocals of music groups or speech transmissions will be considerably more transparent and intelligible, the instruments can be distinguished more easily. -
Page 12: Sound Enhancement In Hi-Fi And Video
2.2.7 Sound Enhancement in Hi-fi and Video Of course, the BEHRINGER DUALFEX PRO can also find applications in the fields of hifi and video. The unit is simply placed between the signal source (cassette recorder, tuner, VCR etc.) and the power amplifier. We recommend using the “tape monitor”... -
Page 13: On Psycho-Acoustic Devices
So-called “treble boosters” achieve this effect by emphasizing the high frequencies, which the listener perceives as a transparent sonic image. Within the BEHRINGER DUALFEX PRO, any frequency correction is combined with a frequency-dependent phase shift, which results in a sound that is “warmer” and more musical. -
Page 14: Phase Shifting
3.4 The Bass Processor of the DUALFEX PRO Apart from processing the upper harmonic ranges, users of the BEHRINGER DUALFEX PRO have access to an innovative bass processor. The numerous stages of processing during the recording, reproduction, copying and effecting processes, increasingly delay the phase of the bass frequencies, when compared to the remaining frequency ranges. -
Page 15: Audio Connections And Installation
Externally induced mains hum etc. will be effectively suppressed. The audio inputs on the BEHRINGER DUALFEX PRO are balanced. If possible, connect the unit to other devices in a balanced configuration to allow for maximum interference immunity. -
Page 16: Specifications
3.4 kg BEHRINGER is constantly striving to maintain the highest professional standards. As a result of these efforts, modifications may be made from time to time to existing products without prior notice. Specifications and appearance may differ from those listed or shown. -
Page 17: Warranty
(user included) will void the warranty. at its sole discretion, either repair or replace the product. 6. If an inspection of the product by BEHRINGER shows that the 2. If the warranty claim proves to be justified, the product will be defect in question is not covered by the warranty, the inspection returned to the user freight prepaid.
