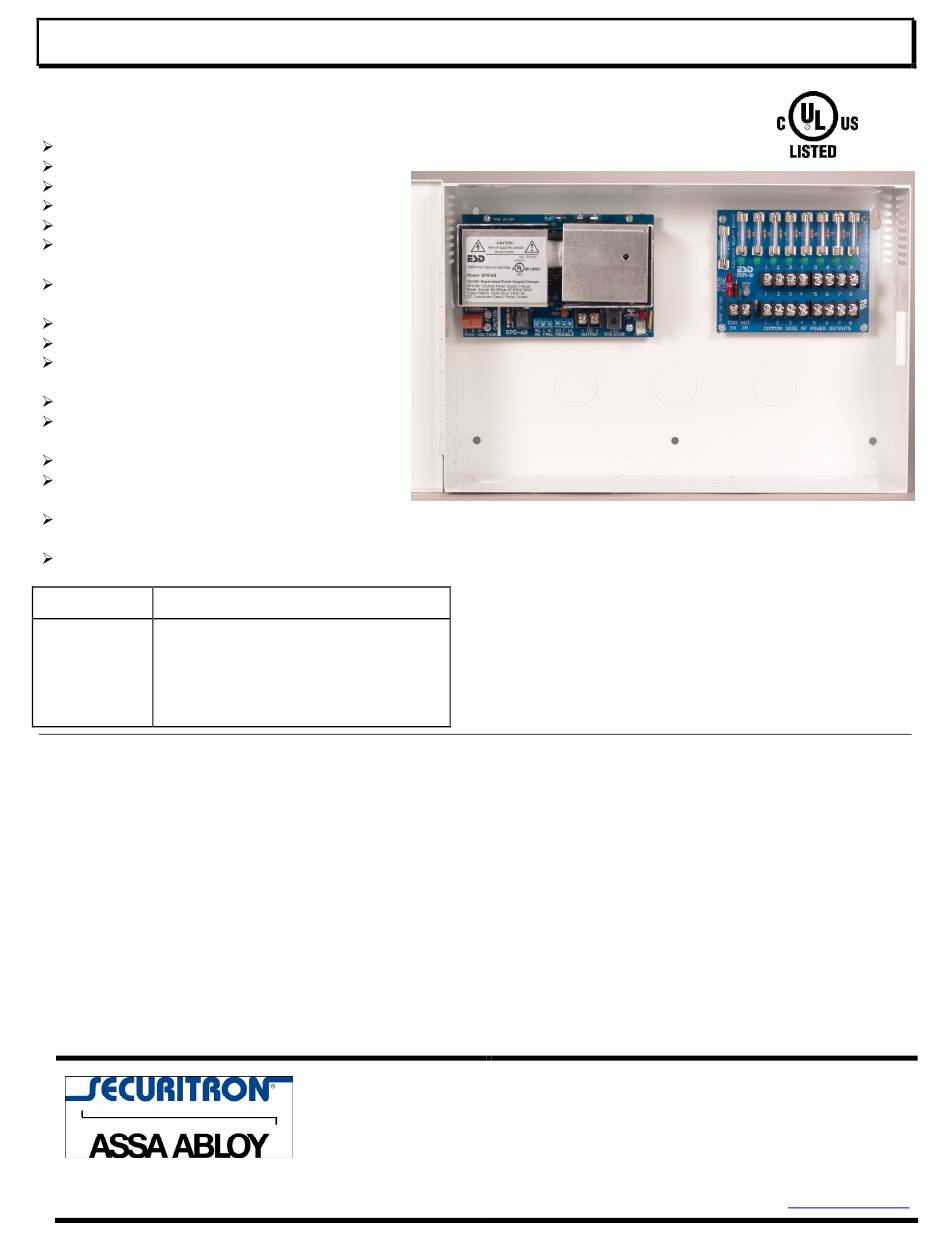

Securitron AQD5 Series Installation Manual

Installation Manual
Small – Light – Efficient – Clean Power
Universal AC Input 90-250vac
12vdc 5A/24vdc 3A Switch Selectable
Smooth Linear Output Performance
Input and Output Surge Protection
Precise Battery Regulation for Wet, AGM,
and sealed Lead Acid Battery(s)
Power Limited Output with Thermal
Protection
Reverse Battery Protection
AC , Trouble, and DC LED's
Battery Online, No Drop or Switch Over
with AC Power Fail
Quality Manufactured in the USA
UL Listed Access Control & Burglar
Alarm systems
Relay "C" Contacts Indicates AC Power Status
Relay "C" Contacts Indicates Low Battery
Amber LED Indicates Power Normal
Battery Cut-Off Relay Disconnects Battery(s)
when Depleted
DC Output is Class II Power Limited
Ordering examples:
AQD5 Supervised Power Supply/Charger module with
a 14"x8.5"x3.5" Enclosure
-4F AQD5 with one PDB-4F
-4C AQD5 with one PDB-4C
-8F AQD5 with two PDB-4F
-8C AQD5 with two PDB-4C
-1R AQD5 with one PDB-FT
-8C1R AQD5 with one PDB-8C1R
-8F8R AQD5 with one PDB-8F8R (Not UL Listed)
The AQD5 are heavy duty self contained, efficient,
clean, linear performance off-line switching power
supplies that are slide switch selectable between 12vdc
at 5 Amps, and 24vdc at 3 Amps.
precision lead acid battery(s) charger that obtains
maximum battery life while providing a 12vdc or 24vdc
uninterruptible power supply for access control security
systems. The universal AC input allows these power
supplies to be powered anywhere in the world without
any alteration. The AQD5 has exceptional brown out
capability with operation down to 60vac. The AQD5
has an extensive filtering system that provides linear
output performance.
protected against Battery(s) reversal, shorting or
overloading. The DC output is power limited, and
Securitron Magnalock Corporation
st
10027 S. 51 St.
Phoenix, AZ 85044
AQD5 Series 12/24 Power Supply/Charger
12VDC @ 5 Amps / 24VDC @ 3 Amps

Description / Instructions

Both have a
The AQD5 is electronically

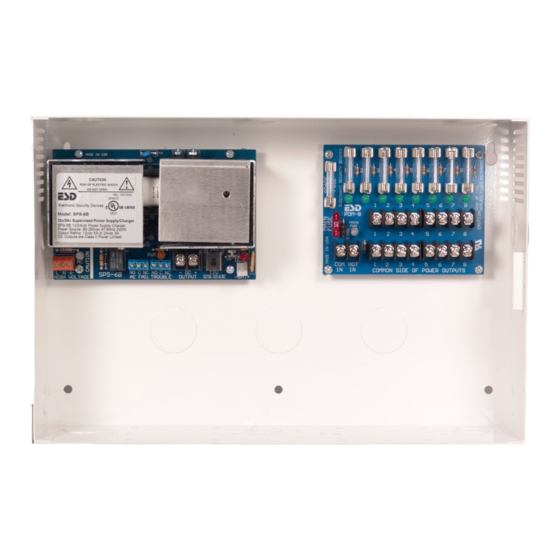

AQD5 12v/24v Series Power Supplies
Life Time Warranty
AQD5-8F
thermally protected. Each of these protective features
will self-restore. Before connecting load and battery(s),
slide 12v/24v selector switch to desired voltage.
Caution, damage can occur when switched with DC
output load. Confirm proper voltage before connecting
devices. The AQD5 is UL Listed and has the additional
supervisory features of a Battery disconnect relay when
battery(s) are depleted, a set of form "C" relay contacts
that indicates AC power failure, a set of form "C" relay
contacts to indicate low battery(s) and the DC Output is
Class II power limited. Depending on load, low battery
trouble indicates 50-75% battery capacity remaining.
Because the output of the AQD5 is Class II Power
Limited, all output devices connected to the AQD5
would automatically become class II Power Limited.
