Summary of Contents for Securitron EcoPower EPS-05
-
Page 1: Installing The Ecopower Power Supply

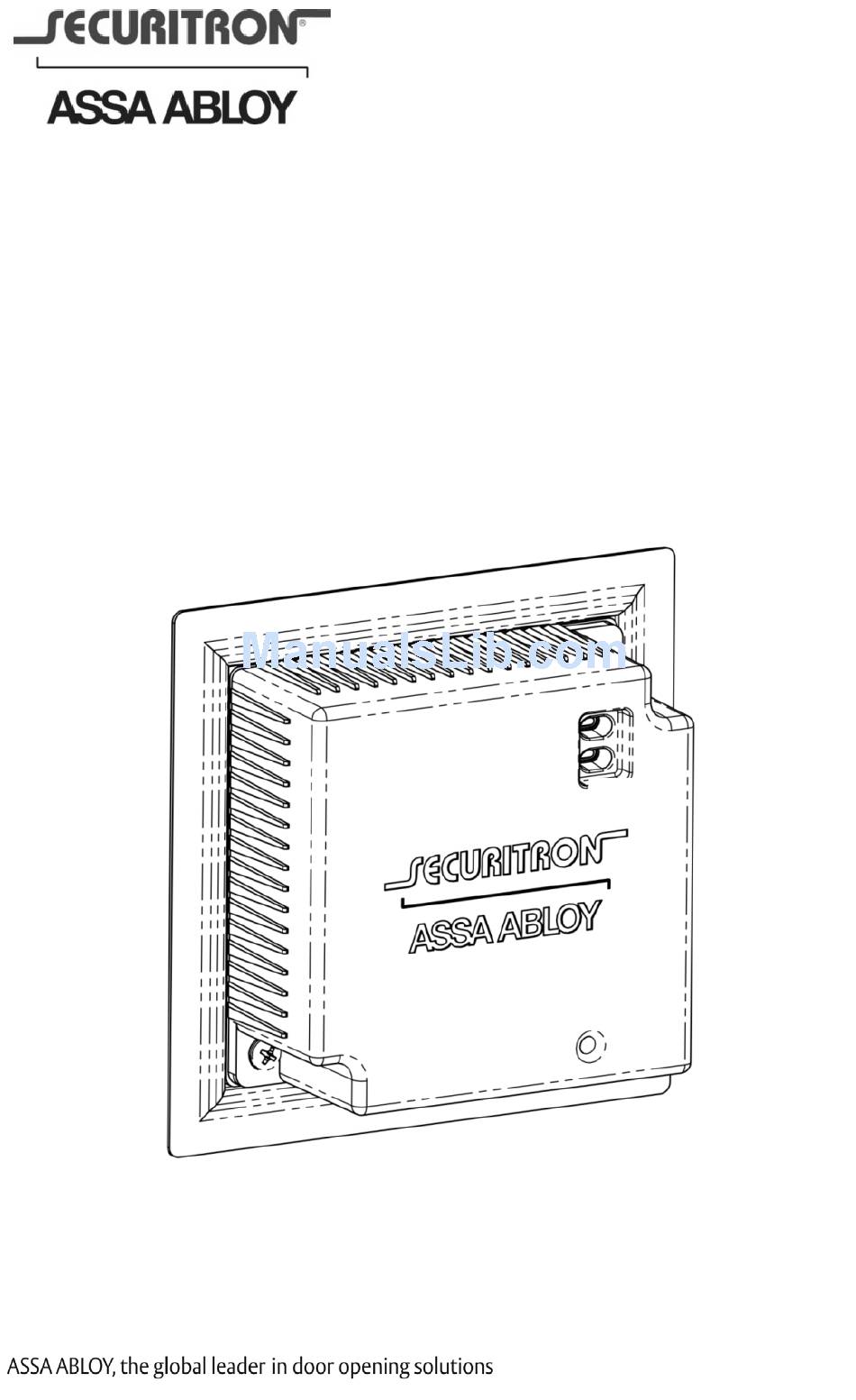

EcoPower™ Power Supply Owner’s Manual 500-33530, Rev B... -
Page 2: Table Of Contents
No registration is required. Product will be replaced forever, for any reason, including but not limited to installation error, vandalism, or act of God. Replacement product is shipped at Securitron’s expense next day air if needed. For more information, visit www.securitron.com 500-33530, Rev B... -
Page 3: Models
Models EPS-05 EcoPower Power Supply in Enclosure EPS-05B EcoPower Power Supply PCB only Structure 500-33530, Rev B... -
Page 4: Block Diagram
Block Diagram Specifications Environmental Parameter Value Operating Ambient Temperature 0 to +49° Celsius (C) Design Product Life 10 years, +49°C ambient, continuous full load Storage Temperature -25 to +85°C Operating Humidity 5 to 90%, non-condensing 500-33530, Rev B... -
Page 5: Mechanical
Mechanical Parameter Value Enclosure Polycarbonate, UL294 Level 1 Enclosure dimensions 4 1/8” X 4 1/8” X 3 13/16” AC input wiring 3-wire with strain relief DC1, LOCK, BAT, FAI, ACC wiring 10-position terminal strip Electrical Parameter Value Input Voltage Range 100–240 VAC, ±10% Input Frequency 50–60 Hz... -
Page 6: Regulatory Certifications
Output Voltage Ripple and Noise < 0.14 Vpp (20 MHz bandwidth limit measurement) Output Surge Resistance 2400 Vpk Output Over Voltage Protection Under any single point condition, output voltage shall not exceed 120% of nominal voltage Battery Type and Capacity Sealed Lead Acid (SLA), 12V, 0.8 Ah Battery Standby Time... -
Page 7: Regulatory Compliance
Regulatory Compliance • EN60950-1:2006+A11:2009+A1:2010+A12:2011, "Information Technology Equipment–Safety” • FCC Part 15, Subpart B, "(unintentional radiator), Class A for industrial and commercial use" • EN55022:2010, "Class A for industrial and commercial use” • EN55024:2010 • EN61000-3-2:2006+A1:2009+A2:2009 • EN61000-3-3:2008 • CE LVD and EMC directives currently in effect •... -
Page 8: Status Signaling
Status Signaling Green LED Signaling AC Power Mode: Solid on AC Standby Mode: 2s on / 2s off AC Lost Mode: 1s on / 2s off Output Voltage Abnormal: OFF Battery Disconnected: Rapid flash (4 times per second, then off for 1 second) NOTE: Black text indicates condition;... - Page 9 Access Control DIP Switch Settings Output Input Access DIP LOCK Access Dry Lock Type DIP FAI LED Switch Output Contact State Switch Setting (RED) Setting Voltage Open Open Closed Closed Closed Closed NOTE: Because the lock circuit fails secure, listed panic hardware shall be used to allow emergency exit from the protected area.
- Page 10 NOTE 1: Unit should only be connected to a fire alarm panel when used in a FSA configuration. NOTE 2: If the DIP switch for FAI latching is set to the “Latched” Position, the LOCK output and the red LED will remain in fire alarm state even when an active FAI input is removed.
-
Page 11: Install The Ecopower Power Supply Using The Included Enclosure Box (Flush With The Wall Stud And Wall Surface)
Installing the EcoPower Power Supply NOTE 1: Installation should be performed by a qualified service person, who conforms to all local codes and complies with The National Electrical Code (or equivalent). NOTE 2: The EcoPower Power Supply can be installed in either a standard, existing 2-gang junction box (flush with the wall stud), or the included enclosure box (flush with the wall stud and drywall surface), or an enclosure surface mounted on... - Page 12 3. PLACE sticky shims on the side of the enclosure to be mounted to the stud. NOTE: Drilling two small pilot holes (approximately 1/16”) for the included mounting screws eases installation. 4. MOUNT enclosure to stud using the two included screws. 500-33530, Rev B...
- Page 13 5. PEEL off the backing for the double-stick tape on the back of the dress ring, and PUSH the dress ring onto the enclosure. 500-33530, Rev B...
- Page 14 NOTE 1: It is recommended that the conduit be installed on the top and bottom of the enclosure box for wiring and the battery be installed horizontally. NOTE 2: These products are intended to be installed with conduit fittings in the field. Connections should be used that are compatible with the Type 1 rated enclosure.
-
Page 15: Install The Ecopower Power Supply Using The Included Enclosure Box And Surface Mounted
11. CONFIGURE the dipswitch settings as needed for your application. 12. CONNECT AC mains power and Earth Ground, and Earth Ground connections so continuity is maintained. 13. MOUNT the cover to the enclosure using the two captive screws. Install the EcoPower Power Supply using the included enclosure box and surface mounted 1. - Page 16 4. ATTACH appropriate drywall anchors (one example shown). 5. MOUNT enclosure box to drywall using the screws to attach it to the drywall anchors. NOTE: It is recommended that the conduit be installed on the top and bottom of the enclosure box for wiring and the battery be installed horizontally.
-
Page 17: Install The Ecopower Power Supply Flush With The Stud In An Existing 2-Gang Junction Box
10. (Optional) INSTALL power supply module back into the cover and SECURE with two installation screws. 11. CONNECT AC mains power and Earth Ground, and Earth Ground connections so continuity is maintained. 12. MOUNT the cover to the junction box using the two captive screws. Install the EcoPower Power Supply flush with the stud in an existing 2-gang junction box NOTE:... - Page 18 3. PEEL off the backing for the double-stick tape on the back of the dress ring, and PUSH the dress ring onto the junction box. NOTE: It is recommended that the conduit be installed on the top and bottom of the enclosure box for wiring and the battery be installed horizontally.
- Page 19 NOTE: Wiring must be Class 1. 7. CONNECT the access control device, access control panel, fire alarm interface, battery, and lock wiring to the power supply module terminals. 8. (Optional) INSTALL the power supply module back into the cover, ensuring the LEDs are facing out at the top right, and SECURE with the two installation screws.
- Page 20 Securitron Phoenix, AZ Tel: 1.800.624.5625 Mon-Fri: 6:00am - 4:00pm PDT Fax: 1.800.232.7329 www.securitron.com techsupport@securitron.com © 2015, Hanchett Entry Systems, Inc., an ASSA ABLOY Group Company. 500-33530, Rev B...
