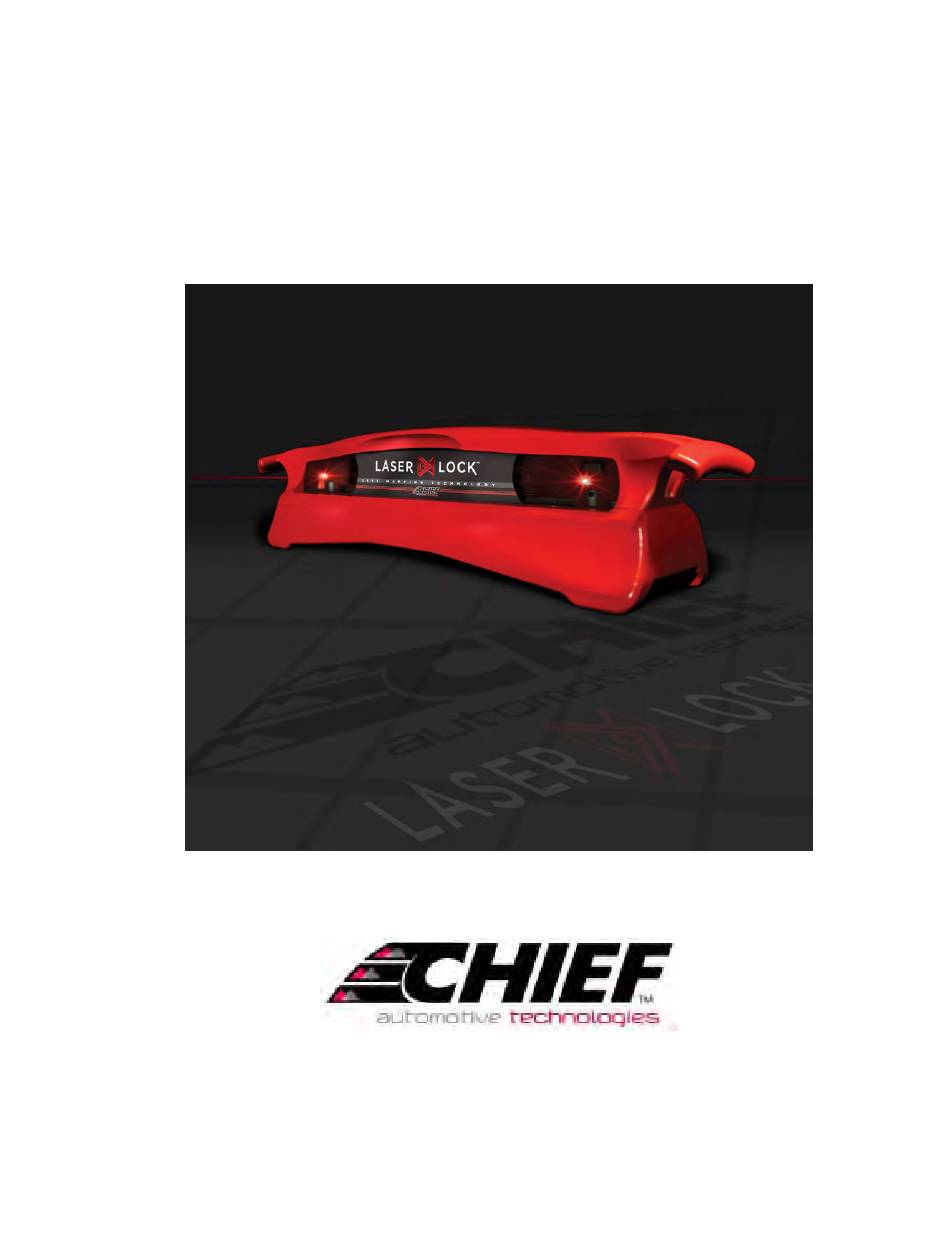

- Page 1 LASER LOCK LIVE MAPPING SYSTEM USERS MANUAL For: Spanish See DVD sent with unit. French German etc. 788438 2014 © Chief Automotive Technologies CO8839 Rev - 1/22/14...
-
Page 2: Table Of Contents
Table Of Contents INTRODUCTION LASER LOCK LIMITED WARRANTY AGREEMENT GENERAL OVERVIEW About This Manual Training VARIANCES: GRAPHICS / SPECIFICATIONS Specifications Versus Vehicle Measurements GENERAL SAFETY INFORMATION Controls Laser Safety Information Federal Communications Commission COPYRIGHT INFORMATION Laser Lock Users Manual Laser Lock Software... - Page 3 The buyer shall be required to deliver the defective part to Chief Automotive Technologies UNLESS (1) the part was destroyed as a result of its defect or of any defect in any part covered in this warranty, AND (2) Chief is reasonably satisfied that the part was defective at the time of its failure.
-
Page 4: Introduction
Whether detecting misalignment in a vehicle’s structure or verifying repairs have eliminated the dam- age, Laser Lock computerized measuring system can do the job. Laser Lock integrates the precision of laser scanning with a computerized data base for unmatched accuracy in collision repair and analysis. In addition to showing extent of collision damage, Laser Lock monitors progress throughout the repair and verifies the vehicle’s structure is correctly aligned. -
Page 5: Variances: Graphics/Specifications
Graphics The Graphics displayed by the Laser Lock Live Mapping system are of high quality and have been checked for accuracy, but may not reflect the vehicle’s actual appearance in every detail. Variances may exist as a result of changes made by vehicle manufacturers or details omitted as a result of space limita- tions. -
Page 6: General Safety Information
IMPORTANT DO NOT plug the Laser Lock system into same line as a welder. The built-in surge protector may not be sufficient to protect against current fluctuations that result from welder use, and it may cause the computer to fail. Also, avoid metal-to metal con- tact between all components (i.e. -
Page 7: Federal Communications Commission
Federal Communications Commission The Laser Lock Live Mapping system has been tested and found to comply with: 1) Limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. 2) CE standards for emissions (EN55011) and Immunity (EN61326). These limits are designed to provide reasonable protection against harmful interference when equipment is operated in a commercial environment. -
Page 8: Laser Lock Assistance
LASER LOCK ASSISTANCE Chief Automotive Technologies offers assistance to Laser Lock program operators. When contacting Chief Automotive Technologies, operators should be prepared to give their name, telephone number (including area code), version of software in use and nature of problem encountered. To identify version of software in use, select ‘About’ from list of items under Help heading in any Menu Bar. In U.S.A., call toll free 800-445-9262. -
Page 9: Ii. Laser Lock Hardware
II. LASER LOCK HARDWARE COMPONENT TERMINOLOGY Equipment in Chief’s Laser Lock Live Mapping System (see Figure 1) is easy to use and provides accurate readings. Its basic compo- nents include: • Computer * • Targets [6] and Attachments/Clips [7] • Display Monitor [1] •... -
Page 10: Component Overviews
Body Scanner when it is not in use. Laser Lock computer system features a 250 GB hard drive, a DVD drive, 2 GB of memory, includes keyboard and mouse devices, dis- play monitors, and a printer (see Figure 2). -
Page 11: Body Scanner And Tray
Workstation. (See Figure 3.) Then attach Cable end with cylindrical RFI suppressor to Body Scanner. (See arrow - Figure 4.) Body Scanner ‘on/off’ switch is shown in Figure 5. (Inset photo for Figure 3 shows connections for a 220-volt, 5 amp Laser Lock System.) -
Page 12: Targets
Body Scanner does not need to be square to vehicle or level. Make sure, however, it remains in Tray and Tray is stable. It is permissible to reposition Tray any time or shift Body Scanner in the Tray. Laser Lock recalibrates any repositioning in its next measurement cycle. -
Page 13: Target Base
NOTE: 1) Although Targets numbered 1-40 are interchangeable, be consistent when placing them at reference points. 2) With the exception of Targets 41-45, Targets can be used on either side of the vehicle. we recommend placing odd number targets on left side of vehicle for consistancy. Targets 41 and 42, which are primarily used to measure ball joint locations, must be used on the left and right side of the vehicle respectively. -
Page 14: Attachments / Clips / Extensions
Attachments, Clips and Extensions A variety of Attachments, Clips and Extensions allow Targets to be mounted to practically any reference hole or bolt. These include Magnetic Attachments, Bolt Attachments, and Reference Hole Attachments. Extensions are provided allowing Target attachment at hard to reach locations. -
Page 15: Hole Attachments
Metal Clip style ‘Bolt Attachments’ (previously supplied with Laser Lock systems) can still be used to mount Targets. The current Laser Lock program, however, assumes Magnetic or Threaded Bolt Attachments are in use until operator inputs correct information in Change Attachment Dialog Box. -
Page 16: Extensions
Point Information Dialog Box for correct positioning. 2) Large Metal Clip style ‘Hole Attachments’ (previously supplied with Laser Lock systems) can still be used to mount Targets. The current Laser Lock program, however, assumes Magnetic, Snap-In or small Metal Clip Attachments are in use until operator inputs correct information in Change Attachment Dialog Box. -
Page 17: Upper Body Bar Assembly
Upper Body Bar Assembly The Upper Body Bar Assembly consists of two horizontal bars joined by a pair of Vertical Scales. (See Figure 21.) Pointers project from Pointer Housings on Upper Bar to strut tower or other upper body reference points. Pointers are provided in ‘cone - shaped’ configura- tions in lengths of 102mm, 178mm, and 432mm. - Page 18 To install Upper Body Bar, attach one of the Vertical Scales to Upper Bar and place assembly’s point- ers on reference points. (See Fig- ure 24.) Then tighten Pointer Housings (see Figure 25); however, if a reference point appears to be misaligned, do not tighten its Pointer Housing.
-
Page 19: Spacers And 3 Inch Bolts
Microsoft Windows®; and Printer. In addition to this printed literature, the Laser Lock system features an On-Line Help Text and a Tutorial that is readily accessible when- ever using the program. In addition, there is also an On-Line How To Use Help System. (These Help features are addressed in greater... -
Page 20: Diskettes And Cds
Update DVDs The Computer provided with the Laser Lock system comes fully loaded with operational software, Vehicle Graphics and vehicle spec- ifications. Periodic updates to these are made available as needed. Updates are sent in DVD format. To make updates, refer to proce-... -
Page 21: Component Maintenance
Wipe all parts clean using a lint-free, low-abrasion cloth using only an ammonia-based glass cleaner. Never use solvents or achol- based cleaners of any kind on any part of the Laser Lock System. Workstation Air Filters After disconnecting Workstation power source, remove air filters and wash them in warm water and a mild detergent. - Page 22 Workstation (Keyboard, Monitor, Computer) Clean Monitor screen and other external parts (Keyboard, Computer, etc.) with a lint-free, low-abrasion cloth, and a good quality glass or ammonia cleaner. Do not use solvents or alcohol-based cleaners on Monitor screen or other computer parts. Be sure system’s pow- er is ‘off’...
-
Page 23: Component Troubleshooting
• Make sure the Laser Lock system is connected to a live power source. (Dependent upon model used, power source might be 110-volt, 15 amp or 220-volt, 5 amp.) A single purpose line for the Laser Lock is recommended. Do not use circuits subject to frequent interrup- tions or outages. -
Page 24: Iii. Laser Lock Program
If the computer doesn’t start after turning on the cabinet switch, the push the power button on your computer. Computer will examine its circuits and prepare to run the Laser Lock system. This process is called ‘booting up the computer’. It takes several seconds to complete. - Page 25 The Laser Lock Title Screen also allows operators to access the system’s Preferences Dialog Box. (See Figure 31.) Tabs within this box allow operators to tailor the program to suit their individual needs. Through the User Options, Laser Lock Setup, Printer / Reports, Network Setup and Quick Entry Setup “Tabs”, operators may select, for example, the ‘basic’...
-
Page 26: Laser Lock Windows And Menus
Base Reference Entry; Repair; Final Inspection; and, Recall. Each Window features a Menu Bar that identifies operations or commands that are specific for that Window. See explanation of Windows and an example on pages 24 and 25. (See also Laser Lock Help Text and Tutorial.) -
Page 27: Windows
WINDOWS The Laser Lock program is provided in a Windows software format that allows operators to manage work easily and efficiently. All work applications appear on Windows which are basically large rectangular areas on screen. Most Windows have certain elements in common, for example: Title Bar, Menu Bar, etc. - Page 28 WINDOW EXAMPLE Point Information Dialog Box Menu Bar Title Bar Scanner View Dialog Box Laser Lock Live - Initial Inspection (Base Reference Entry) Chevrolet Cavalier (Menu Headings) Edit Display Help Change Attachment Delete Base Target Delete All Base Targets Mechanics...
-
Page 29: Dialog Boxes
DIALOG BOXES Dialog Boxes appear on a Window when operator must supply additional information to complete a task or when operator needs to ac- cess information. Most Dialog Boxes require selection of options, whereas others require inputting (typing) of information. Most Dialog Boxes have elements in com- mon, for example: Title Bars, Command Buttons, and Control-Menu Symbol Button. - Page 30 DIALOG BOX EXAMPLES Customer, Vehicle, Down Arrow (accesses List Box Work Order with scroll bars) Information Sections Title Bar Command Buttons Field Erase Button Customer, Vehicle, Command Buttons Work Order Tree Figure 34 Minimize, Maximize, Control- Body Scanner Hub Radio Button Indicator Close Buttons Menu Title Bar...
-
Page 31: Vehicle Graphics
VEHICLE GRAPHICS Vehicle Graphics are top view drawings of a vehicle’s structural components. In the Laser Lock program, they appear on all Laser Lock Windows. Vehicle Graphics match make, model, and year of vehicle identified in Vehicle Information Dialog Box. Although each Graph- ic shows general shape and location of reference points, program’s Zoom feature allows operator a closer, more detailed look. - Page 32 Actual Measurements mode shows only current measurements taken by Laser Lock. (See Figure 38 - previous page.) When specifica- tions don’t exist in the Laser Lock data base, this mode can be used to repair structure through comparison measurements. Specifications mode shows only a vehicle’s published specifications as obtained from the Laser Lock Data Base. It is for reference purposes only.
-
Page 33: Keyboard, Mouse And Pen
The most efficient method of operation is to use the Mouse in combination with the Keyboard. The following information addresses each device individually providing specific information pertinent to its use with the Laser Lock program. - Page 34 NOTE: In regard to Dialog Boxes, specific Help can also be accessed by selecting Help icon which appears in most Dialog Boxes. To Access “How To Use Help” To access How To Use Help, first access any Laser Lock Help Page. Then press F1 Key or select How To Use Help from list of items under Help heading in Menu Bar.
- Page 35 To Access “Tutorial” To access Tutorial, first select Index from list of items under Help heading or select Help icon in Tool Bar at right side of screen. Then select Laser Lock Tutorial. (See Video Camera Icon.) To Access “Wizard”...
-
Page 36: Special Keys
SPECIAL KEYS As previously indicated, the Laser Lock program can be operated using the Keyboard or Mouse or a combination of the two. When using Keyboard either solely or in combination with the Mouse, operators will use not only the ‘letter’ and ‘number’ keys but the specialty keys as well. - Page 37 Example — Figure 41.) The Laser Lock Help Text can be accessed in a variety of ways and is available any time the system is up and running. Operators have flexibility of jumping to specific Help Pages or Pop-Ups, or they can access Index Pages if needing to search for a topic. The following information outlines various ways to access Help Text.
-
Page 38: Laser Lock Windows And Menus
NOTE: Upon accessing Help Index (see Figure 42), operator can select one of several categories listed. Selection of that category will access a more specific menu. Each selection made in this process channels operator to help that’s desired. Camera Icon at top of Help Index page accesses Laser Lock Tutorial. Laser Lock Live... -
Page 39: Help Text
(clicking) left side button on Mouse. Help Pages and Pop-Ups often feature illustrations and/or photos which help clarify procedures or identify the Laser Lock components. Illustrations appear directly on respective Help Pages and Pop-Ups. Photos do not appear directly on Help Pages and Pop-Ups;... - Page 40 Help Page Features Each Help Page in the Laser Lock Help Text has certain elements in common. These include a Menu Bar, Command Buttons, Scroll Bars, Minimize and Maximize options and a Close option. (See Example — Figure 47.) Scroll Bars exist on some of pages.
-
Page 41: How To Use Help
“Print” Command Buttons. Selection of “Glossary” Button accesses a listing of common terms used in Windows Program. Selec- tion of a term from listing accesses its definition. To access on-line How To Use Help System, first access a Laser Lock Help Page and do one of the following: Select How To Use Help from list of items under Help heading;... -
Page 42: Laser Lock Tutorial
LASER LOCK TUTORIAL The Laser Lock Tutorial covers the basic features of the Laser Lock system. The program is designed for both first time users and for technicians needing to review the basic fundamentals of measuring. The Tutorial not only helps technicians navigate through the sys- tem software but also covers basic measuring concepts and principles. -
Page 43: Laser Lock Wizard
Notes... - Page 44 966 Industrial Dr. Madison, IN 47250 Phone: 800.445.9262 Fax: 866.275.0173 www.chiefautomotive.com Chief reserves the right to alter product specifications and/or package components without notice.
