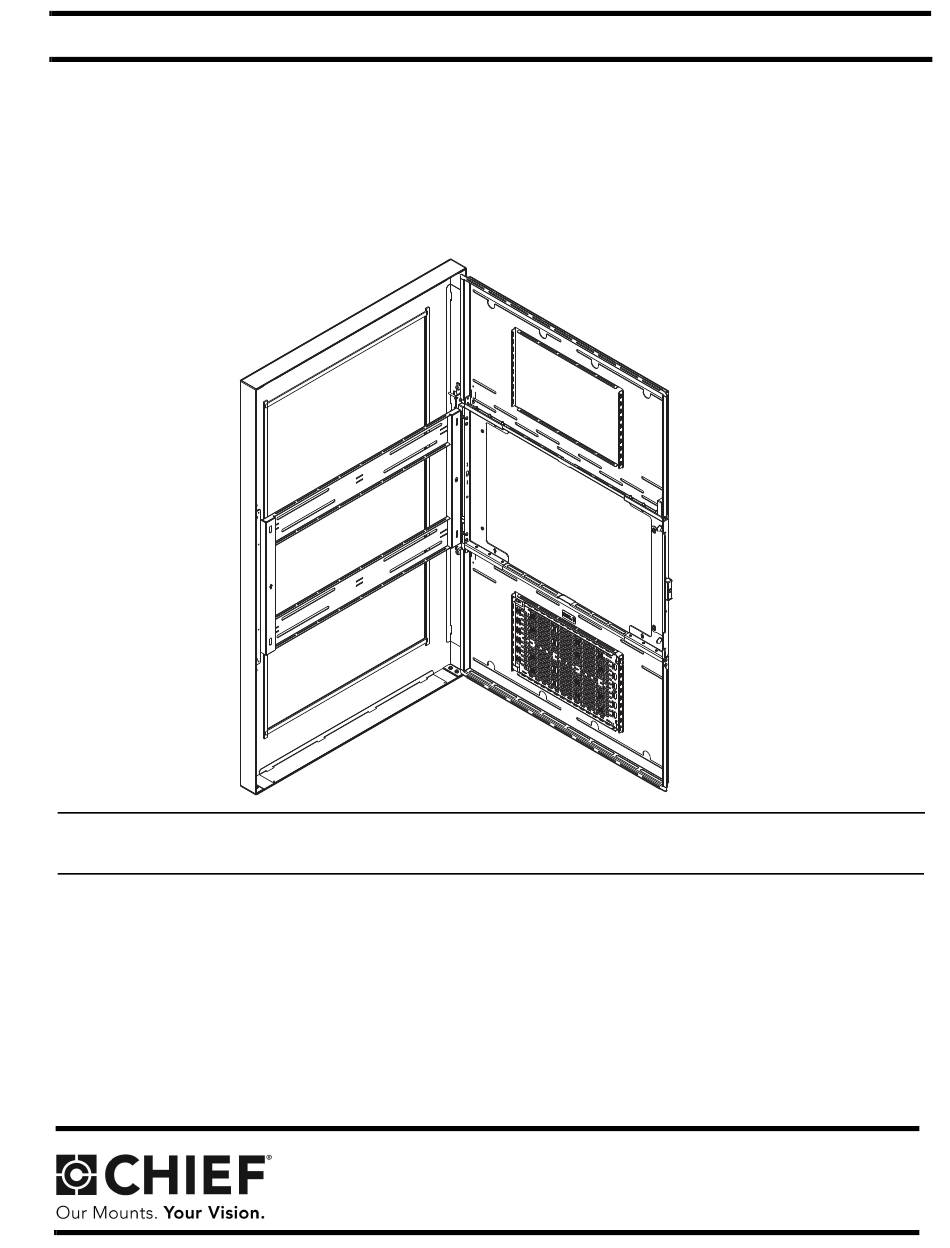

- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S 46"/47"/48"/49"/50"/55" Portrait Wall Kiosks Spanish Product Description German Product Description Portuguese Product Description Italian Product Description Dutch Product Description French Product Description LW46/47/48/49/50/55UxP...
-
Page 2: Important Safety Instructions
8" concrete or 8"x8"x16" concrete block wall; or AN ACCESSORY is the secondary Chief product which is attached to a primary Chief product, and may • a 2" x 4" wood studs (16" on center minimum) wall with have a component attached or setting on it. - Page 3 Installation Instructions LW46/47/48/49/50/55UxP DIMENSIONS LW46UxP 46.50 1181.1 22.50 571.5 DIMENSIONS: INCHES 27.50 [MILLIMETERS] 698.5 LW47UxP 46.50 1181.1 23.00 584.2 27.50 DIMENSIONS: INCHES 698.5 [MILLIMETERS]...
- Page 4 LW46/47/48/49/50/55UxP Installation Instructions DIMENSIONS--continued LW48UxP 46.50 1181.1 23.50 596.9 DIMENSIONS: INCHES 27.50 [MILLIMETERS] 698.5 LW49UxP DIMENSIONS: INCHES [MILLIMETERS]...
- Page 5 Installation Instructions LW46/47/48/49/50/55UxP DIMENSIONS--continued LW50UxP DIMENSIONS: INCHES [MILLIMETERS] LW55UxP LW55UxP 54.25 1378.0 26.84 681.8 DIMENSIONS: INCHES 32.50 [MILLIMETERS] 825.5...
-
Page 6: Tools Required For Installation
LW46/47/48/49/50/55UxP Installation Instructions LEGEND Phillips Screwdriver Drill Hole Destornillador Phillips Perforar Kreuzschlitzschraubendreher Bohrloch Chave de fendas Phillips Fazer furo Cacciavite a stella Praticare un foro Kruiskopschroevendraaier Gat boren Tournevis à pointe cruciforme Percez un trou Open-Ended Wrench Hex-Head Wrench Llave de boca Llave de cabeza hexagonal Gabelschlüssel Sechskantschlüssel... -
Page 7: Assembly And Installation
Installation Instructions LW46/47/48/49/50/55UxP ASSEMBLY AND INSTALLATION Preparing Wall Bracket Remove kiosk from the packaging and place on a flat surface. (See Figure 1) Open hinged frame to 90°. Keeping the hinged frame at 90° slide the hinged frame about 1 inch towards top of kiosk until hinge pins clear the hinges, and move the hinged frame away from the wall bracket. - Page 8 LW46/47/48/49/50/55UxP Installation Instructions Determine the center of the wall bracket, and where it IMPORTANT ! : Refer to Fastener Installation Methods should be located on the wall. (See Figure 2) (located in Appendix at end of Installation Instructions) NOTE: For wood or steel stud walls, use a level and mark the for details on installing product into various wall types.
- Page 9 Installation Instructions LW46/47/48/49/50/55UxP Insert four snap toggles and related fasteners into hinge Carefully lay flat panel face down into the depth-adjustable side of wall bracket. (See Figure 4) outer frame. (See Figure 6) IMPORTANT ! : Refer to Fastener Installation Methods (located in Appendix at end of Installation Instructions) Depth-adjustable for details on installing snap toggles and related...
- Page 10 LW46/47/48/49/50/55UxP Installation Instructions Place hinged frame onto back of flat panel and match the Tighten thumb nuts over threaded studs in four locations on VESA pattern on flat panel to the hinged frame mounting the hinged frame. (See Figure 8) slots.
- Page 11 Installation Instructions LW46/47/48/49/50/55UxP APPENDIX Switching Hinge Location Remove AND SAVE the hardware on the latch (right) side Remove and of the wall bracket. (See Figure 10) SAVE two hinges Wall bracket Hinge Wall bracket Figure 11 Remove and SAVE lift-off hinge and hinge spacer plate from two locations on swing door assembly.
- Page 12 LW46/47/48/49/50/55UxP Installation Instructions Replace two lift-off hinges and hinge spacer plates onto opposite side (left) of swing door assembly. (See Figure 13) Fasten in place with four (two each hinge) NEW 10-32 x 3/4" button head cap screws (CB). (See Figure 13) (CB) x 4 Hinge spacer...
- Page 13 Installation Instructions LW46/47/48/49/50/55UxP 10. Flip and install latch section on left side of wall bracket. 14. Re-install inside latch: (See Figure 15) NOTE: a. Place spring on top of horizontal tab and compress Be sure that upper and lower tabs are slid into slots on spring slightly.
- Page 14 LW46/47/48/49/50/55UxP Installation Instructions Fastener Installation Methods Hold metal channel on anchor (AC) flat alongside plastic straps and slide channel through hole. (See Figure 18) IMPORTANT ! : See Table 1 for appropriate hardware and pilot hole sizes for various wall types. Drywall Wood Stud Plastic straps...
- Page 15 Installation Instructions LW46/47/48/49/50/55UxP Line up anchor with attachment point. Steel stud Insert 1/4-20 x 1-3/4" Phillips pan head screw (AD) through (if present) 1/4" washer (AE), corresponding mounting hole in wall Drywall bracket and into anchor (AC), and tighten until flush against wall bracket.
- Page 16 Europe A Franklinstraat 14, 6003 DK Weert, Netherlands P +31 (0) 495 580 852 F +31 (0) 495 580 845 Chief, a products division of Asia Pacific A Office No. 918 on 9/F, Shatin Galleria Milestone AV Technologies 18-24 Shan Mei Street...
