Summary of Contents for Tinysine TSA2110A
- Page 1 2 x 8 Watt Class D Bluetooth Audio Amplifier Board TSA2110A User’s Guide...
-
Page 2: Table Of Contents
TSA2110A Table of Contents Chapter 1. Overview ..............1 1.1 Overview ................1 1.2 Feature ................1 1.3 Applications ............... 2 1.4 Quick Start ................2 Chapter 2. Hardware Detail ............2 2.1 Power Connection ............. 3 2.2 Output Connections ............3 2.3 LED Indicators .............. -
Page 3: Chapter 1. Overview

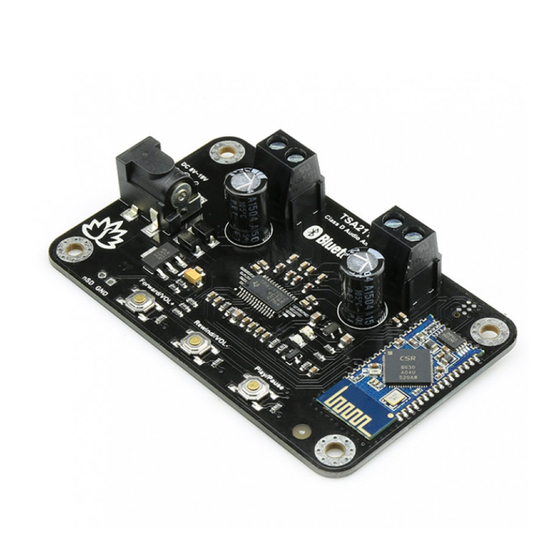

TSA2110A Chapter 1. Overview Overview This is a 2x8W audio amplifier board with Bluetooth 4.0 integrated. It has perfect class-D architecture(Based on TPA3110D2) and each channel has 8W power output. This board can be powered by any DC8V-16V power supply. It can be used to drive any 4Ω or 8Ω... -
Page 4: Applications
Applications Personal computer Desktop amplifier Microphone preamplifier Home DIY Vending machine,Lifts Interactive kiosks Quick Start Suggested connection is shown in figure 1-3. FIGURE 1-3 CONNECTION DIAGRAM Page 2 Tinysine Electronic... -
Page 5: Chapter 2. Hardware Detail
TSA2110A Chapter 2. Hardware Detail Power Connection To power the amplifier, please use jack J3. Pay attention to the connector type, it must be positive inside and negative outside. FIGURE 2-1 Power CONNECTION TABLE 2-1 POWER CONNECTION Connector Mark Description... -
Page 6: Led Indicators
1. Never connect more than one group of speaker to the audio output. 2. Never connect L- and L+ together since they belong to different NETs. LED Indicator The amplifier has 2 LED indicators to indicate its working status. FIGURE 2-3 LED INDICATOR Page 3 Tinysine Electronic... - Page 7 TABLE 2-3 LED INDICATOR LED Status Board Status LED1 LED2 Not powered Flash Flash Powered, no device connected Flash Powered, device connected Page 4 Tinysine Electronic...
-
Page 8: Volume Control
Rewind/VOL-: Long press the button to decrease the volume, short press the button to play the next song. Play/Pause: Click the button to play or pause the music. Page 5 Tinysine Electronic... -
Page 9: Chapter 3. Electrical Characteristics
TSA2110A Chapter 3. Electrical Characteristics Following table lists all typical data of the Amp board. TA = 20℃, flN = 1 kHz sine ware, RL = 4Ω. (Unless otherwise stated) Parameter Condition Supply Voltage (V) SD = 2V, No load,... -
Page 10: Chapter 4. Mechanical Drawing
TSA2110A Chapter 4. Mechanical Drawing FIGURE 4-1 MECHANICAL DRAWING Page 7 Tinysine Electronic... -
Page 11: Chapter 5. Contact Us
TSA2110A Chapter 5. Contact Us Tinysine Electronics 10-3-1 Shen Gang Cheng Xiang Zhang Road Hefei P.R.China Tel: +86-551-65365921 Ext 801 Fax: +86-551-65365931 Website: www.tinysine.com Email: customerservice@tinyosshop.com Page 8 Tinysine Electronic...
