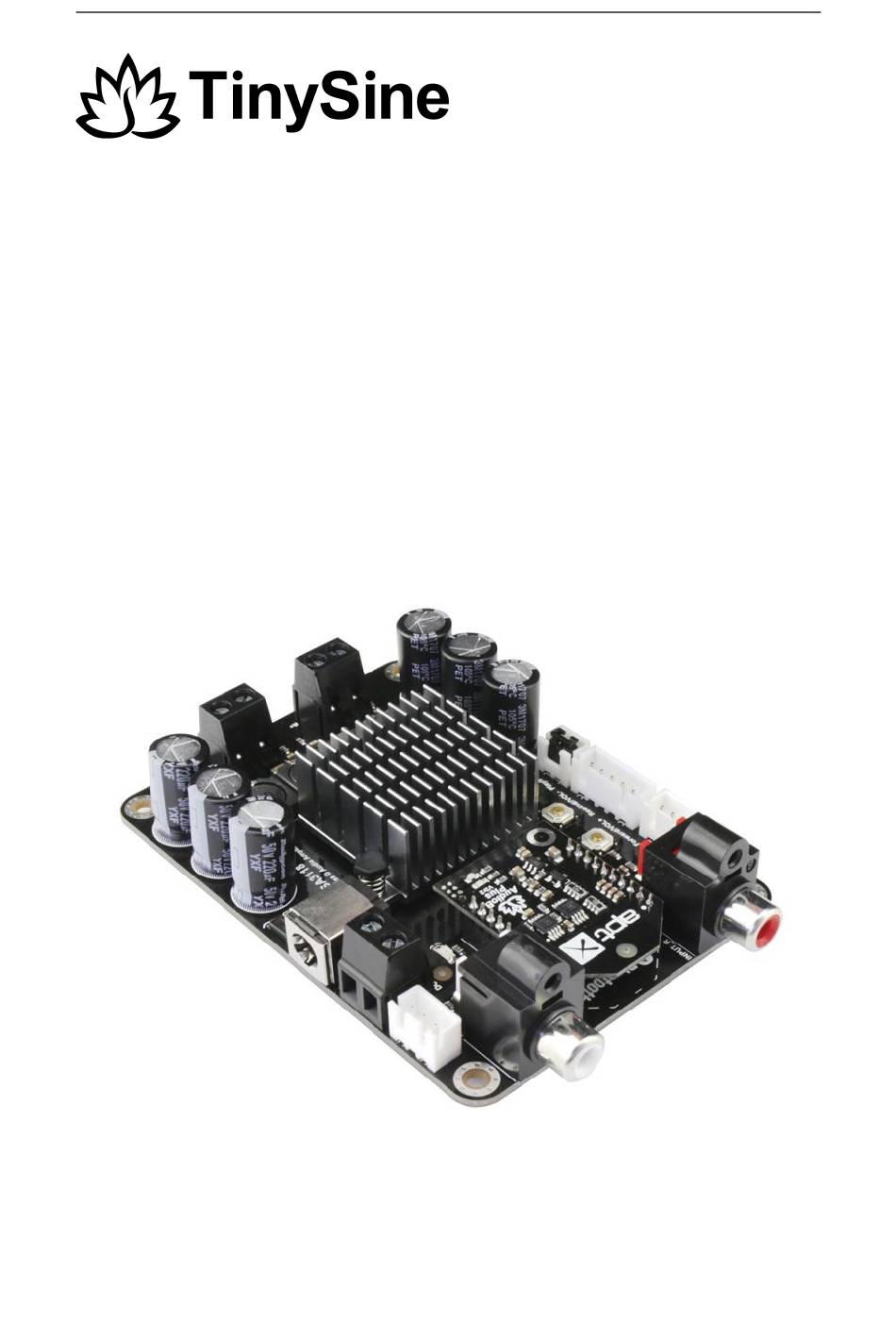

Page 1: User Guide
TSA3118B Audio Amplifier User Guide Tinysine Electronics @ 2017 Version 1.0... - Page 2 INTRODUCTION TSA3118B is a 2x50W audio amplifier board with a new Audio plus Bluetooth module that supports Apt-X. It has perfect class-D architecture(Based on TPA3116D2) and each channel has 50W power output. Both of channels are capable of outputting nominal power simultaneously and continuously.
- Page 3 OVERVIEW...
- Page 4 Step by step 1. Your speaker cables should equipped with bare copper wires, and be sure gather the threads, as you can see in the picture below:...
- Page 5 Be aware that connecting the + and - with the corresponding screw terminals. Then close the screw terminals by turning in the opposite direction. 3. If you want to use line-in audio source, you can connect it to TSA3118B’s line in. If not, just ship this step.
- Page 6 5. Turn on Bluetooth on the device you want to connect to the amplifier. Find TSA3118B on your Bluetooth list and connect to it. The amplifier comes with a distinct beep sound when a connection is established. Now you can play your music.
- Page 7 Documents: How to change the BT name How to pair and set TWS mode How to set amplifier to mono output TSA3118B Bluetooth module PSR file How to restore bluetooth settings Giga Control APP(Android)
- Page 8 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 9: Industry Canada
End Product Labeling This transmitter module is authorized for use portable and mobile exposure. The final end product must be labeled in a visible area with the following: Contains FCC ID: 2ARMD-TSA3118B. Manual Information to the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module. - Page 10 End Product Labeling The final end product must be labeled in a visible area with the following: Contains IC: 24520-TSA3118B. Plaque signalétique du produit final Le produit final doit être étiqueté dans un endroit visible avec l'inscription suivante: Contient des IC: 24520-TSA3118B.
- Page 11 L'intégrateur OEM doit être conscient de ne pas fournir des informations à l'utilisateur final quant à la façon d'installer ou de supprimer ce module RF dans le manuel de l'utilisateur du produit final qui intègre ce module. Le manuel de l'utilisateur final doit inclure toutes les informations réglementaires requises et avertissements comme indiqué...
