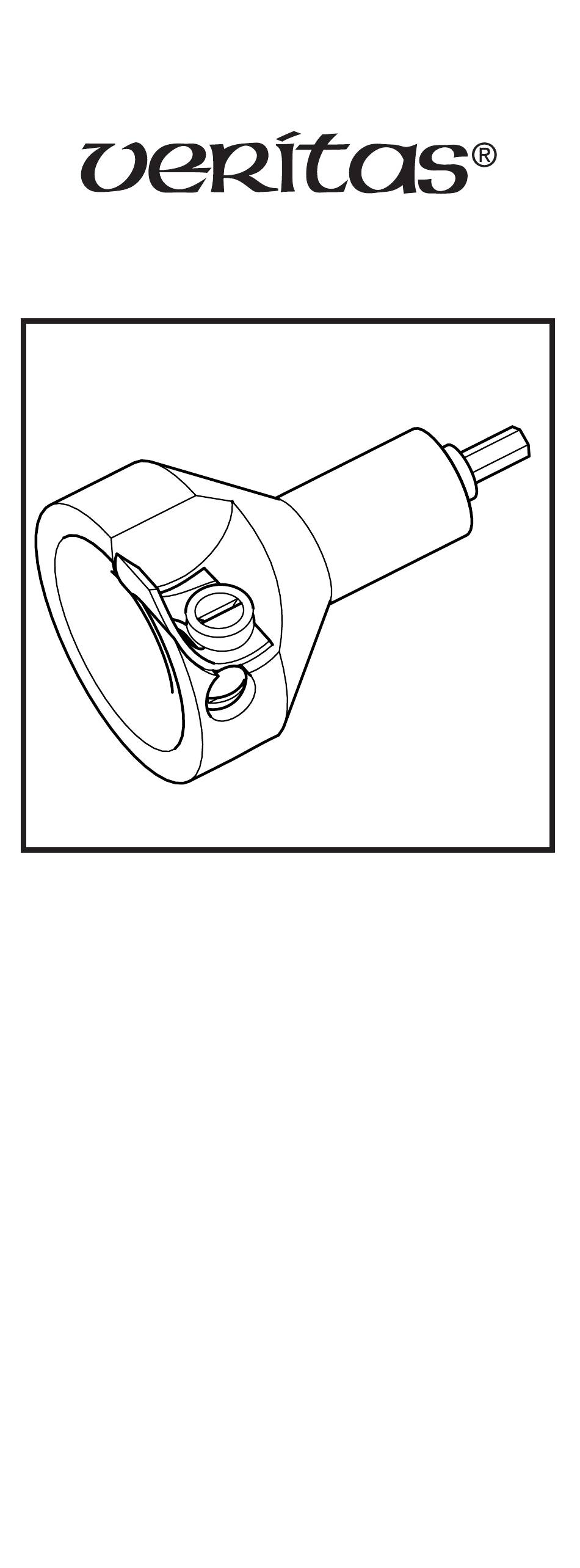

- Page 1 Power Tenon Cutters 05J41.01 – " 05J41.02 – " 05J41.09 – " 05J41.03 – 1" 05J41.07 – 1 " 05J41.05 – 1 " 05J41.08 – 1 " 05J41.06 – 2" Patented.
-
Page 2: Safety Rules
Safety Rules These safety instructions are meant to complement those that came with your power tool. We suggest that you reread those, in addition to those listed here before you begin to use this product. To use this product safely, always follow both sets of safety and general instructions. - Page 3 13. Never carry portable tools by the cord. 22. Handle blades with care. 14. Use the right tool. Do not force a 23. Unless otherwise specified, always small tool or attachment to do the job insert the shank as far as possible into of a heavy-duty tool.

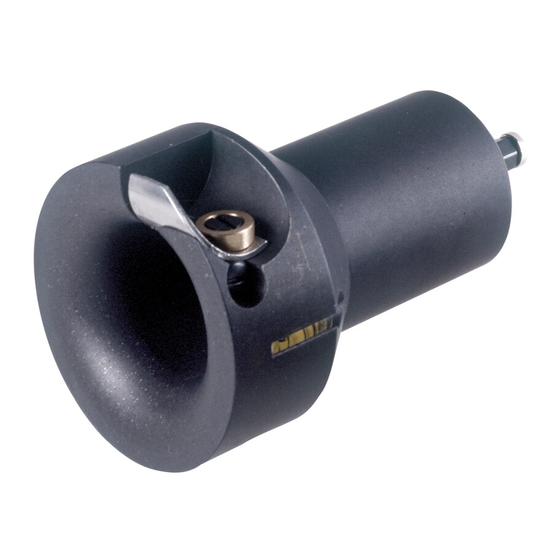

- Page 4 ® The Veritas Power Tenon Cutters make chuck is required, and a high-torque, low- round tenon cutting for rustic furniture quick, speed (~500 rpm) drill is recommended. accurate and easy. Each has been balanced to minimize vibration while being driven with...
- Page 5 Note: Whether you are cutting in-line or angled tenons, the secret to cutting a uniform tenon is to keep the drill very steady while cutting. Blade Advance Screw While leaning into the wood, switch on the drill at a moderate speed (500 to 700 rpm Blade "...
- Page 6 To Adjust Shaving Thickness: cut the minimum tenon size, cut a full-length tenon. Cut off the end of this tenon to obtain The tenon cutter is designed to cut a 0.030" a dowel of the required length; dowel length thick shaving at the largest portion of the = (tenon length without depth stop) - desired tenon shoulder, decreasing in thickness as tenon length (see Figure 4).
- Page 7 be sufficiently advanced. This will become Observe where the marker coating has worn evident when the " long blade advance off. Continue sharpening until the entire screw bottoms out in its counterbored hole blade edge is clear of marker coating (at least before the blade is sufficiently advanced.
- Page 8 Troubleshooting near the upper limit of the tenon cutter’s capacity contact the bell-mouth where that contact angle is much shallower, thus not UNEVEN TENONS: This is usually caused as easily guided into the main bore. Press by an unsteady drill position while cutting. the drill hard into the wood piece, only until Reduce your drill speed and concentrate on the tenon shoulder is formed.
- Page 9 " 05J42.03 Mini Tenon Cutter – " 05J42.04 Mini Tenon Cutter – " 814 Proctor Avenue 1090 Morrison Drive Ogdensburg, New York Ottawa, Ontario 13669-2205 USA K2H 1C2 Canada INS-124 Rev. E © Veritas Tools Inc. 2005 Printed in Canada.
