ITOH DENKI Power Moller 24 CBM-105FN Manual

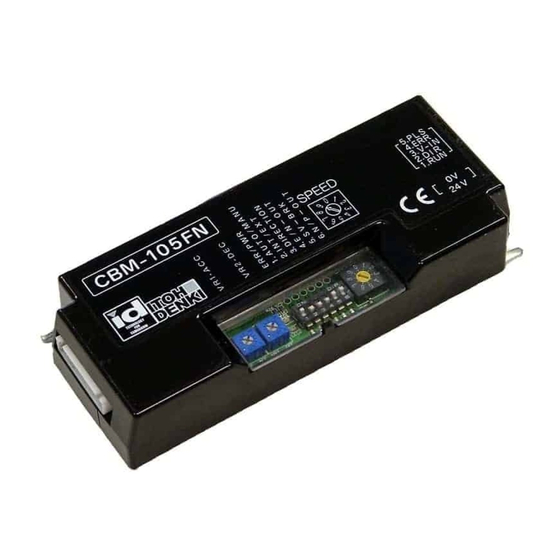

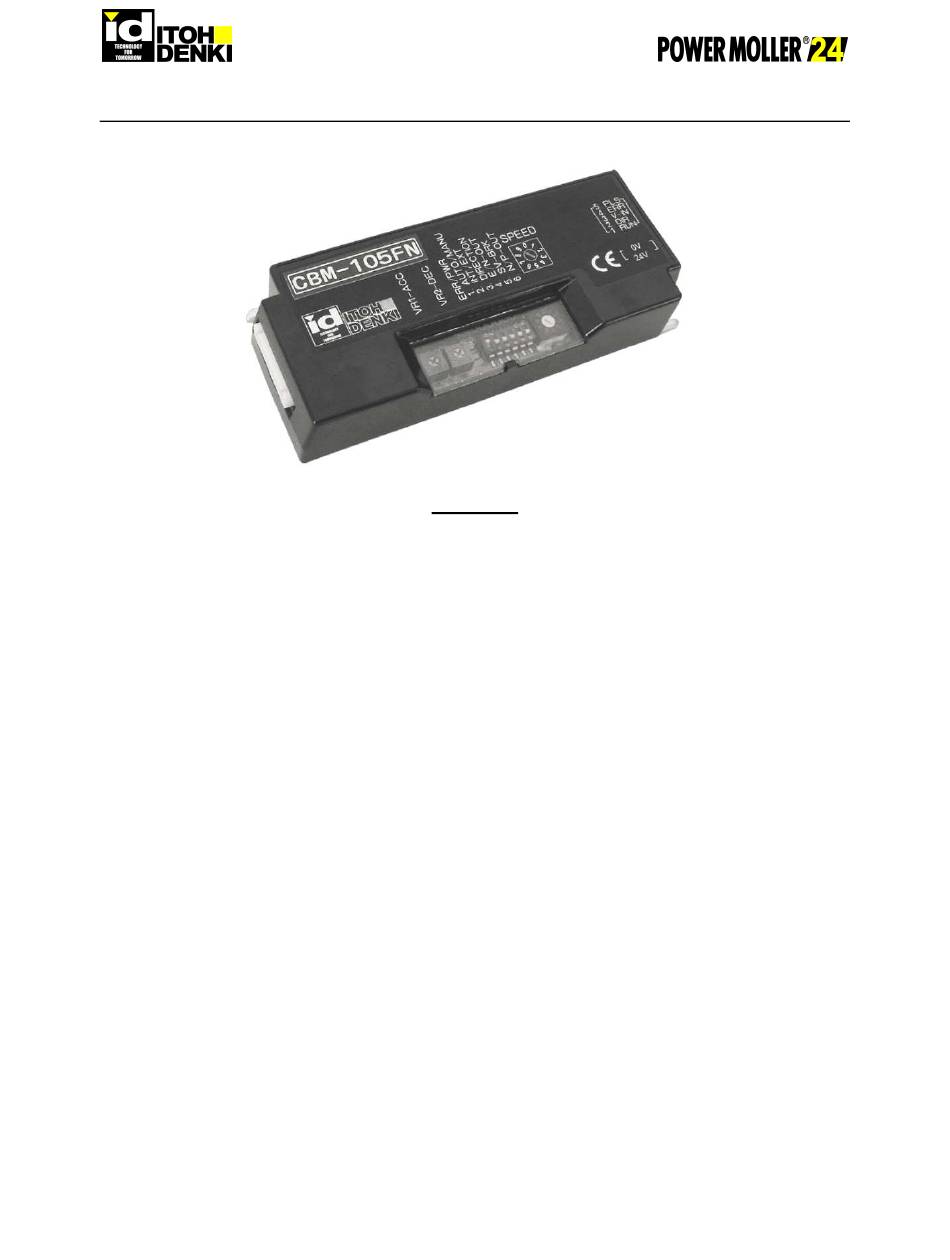

CBM-105FN/FP Circuit Board
•
Adjustable acceleration and
deceleration time (0 to 2.5s)
•
Stable speed operation
•
Manual or automatic recovery of the
thermal overload device
•
One (1) rotary switch to select up to 10
different fixed speeds or external
voltage input for up to 20 fixed speeds
•
Forcibly stops the motor if motor lock
last for 4 seconds or thermal overload
error lasts for 1 second or more.
•
Two (2) LEDs (red & green) to identify
the type of error and power
•
Back EMF error for overspeeding
protection
•
Pulse signal output to indicate motor
revolution
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
www.itohdenki.com
info@itohdenki.com
Ph: 570.820.8811
Fx: 570.820.8838
Features
•
Servo brake control allows product to
maintain its position after run signal is
removed
•
Error output selection for output in
normal or abnormal status
•
Lead free design; RoHS compliant
•
Low Voltage Protection reacts when
o
o
•
External Direction control
o
ITOH DENKI, USA, INC.
135 Stewart Road
Hanover Industrial Estates
Hanover Township, PA 18706
Sustained low voltage (less than 15V
DC) for at least 1 second
Fluctuating voltage dropping below 15V
DC, 5 times within 0.5 second
When external DIR signal is changed
while motor is running, the motor stops
for 0.5 second, then runs again in
opposite direction
Page 1 of 11
rev13-0314
