Integral LED SPACELUX ILHBG007 Installation Manual

INSTALLATION GUIDE FOR INTEGRAL LED
"SPACELUX" HIGH BAYS - NON-DIMMABLE
Integral Product
Wattage
Code
ILHBG007 160W
Accessories for Ø 560 High Bays
ILHBAR008 Silver Aluminium Reflector Hood for Ø560 Spacelux
ILHBAR013 White Aluminium Reflector Hood for Ø560 Spacelux
Ø560
Thank you for purchasing an INTEGRAL LED product. When installed correctly this unit will provide years
of service – with no lamp changes required. For support or warranty information please see www.integral-
led.com.
Important Details – Please read prior to installation
1. This product must be installed by a qualified electrician in accordance with instructions provided and in
compliance with recognised electrical and safety regulations relevant to the country it is being installed.
2. Please follow installation guide below
3. Please use appropriate fixings screws and chain (not provided) and ensure mounting eye is securely
tightened to the suspension bracket through the nut.
4. Connect the cut+fit 2m power lead to a suitable junction box to maintain IP rating. Please pay attention
to the polarity and earth as shown in "Wiring Connection" below.
5. Please ensure that 3-core H05RN-F minimum 3x1mm² cable is used.
6. If reflector hood is required please following installation guide below and used the 8 washer provided.
7. This product is not suitable for dimming.
8. No user serviceable parts.
9. This product is a Class I device - an earth connection is MANDATORY.
Colour Beam
Lumens
Temp. Angle
20960 5000 110°
Ø420
Lumens per

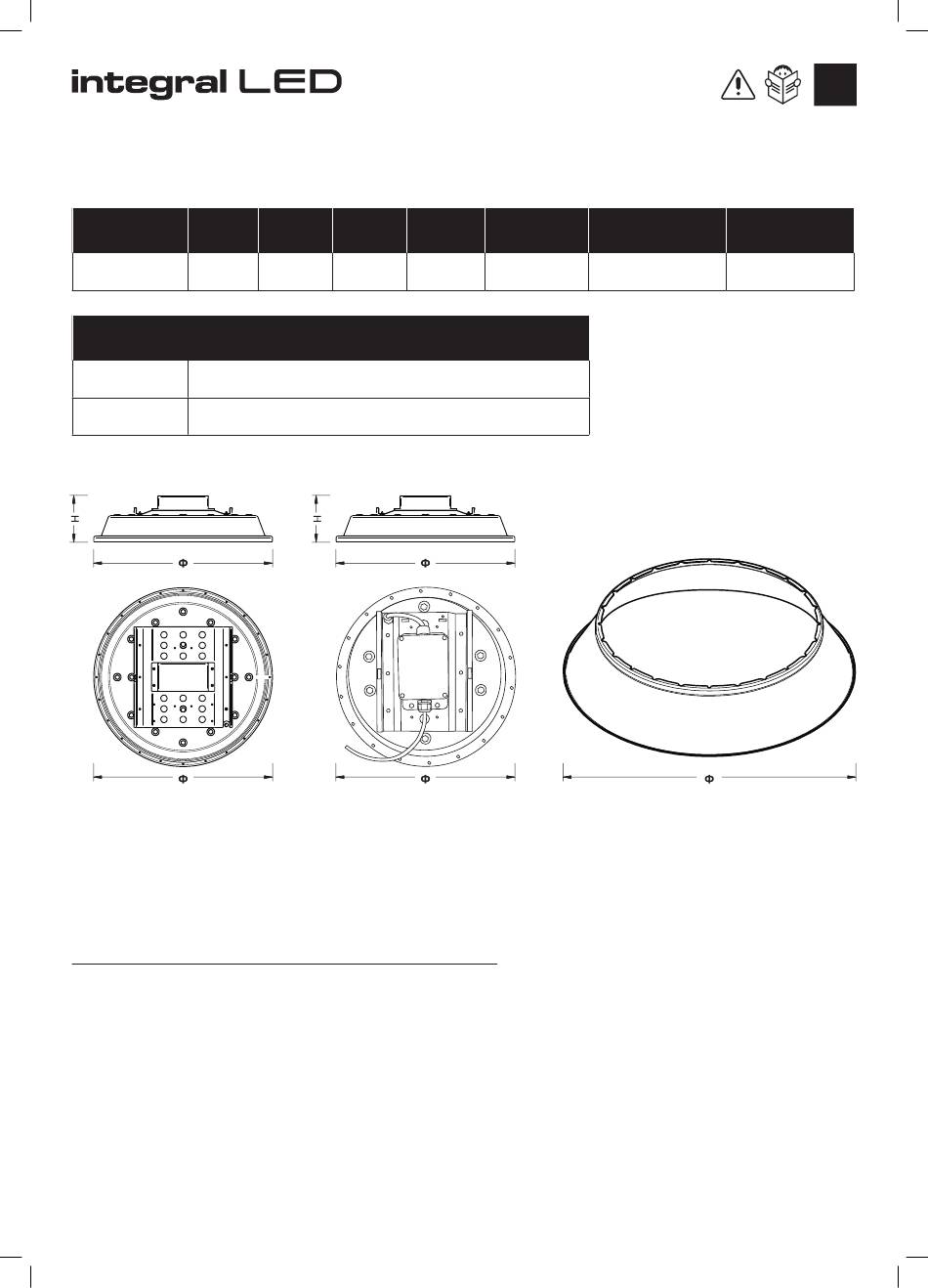

Product Dimensions
Watt
Ø 560 x H: 70 mm
131
without bracket
Reflector hood Ø560
EN
Net Weight (KG)
3.85
