Summary of Contents for Godfreys i-Vac S10 ULTRA LIGHT PLUS

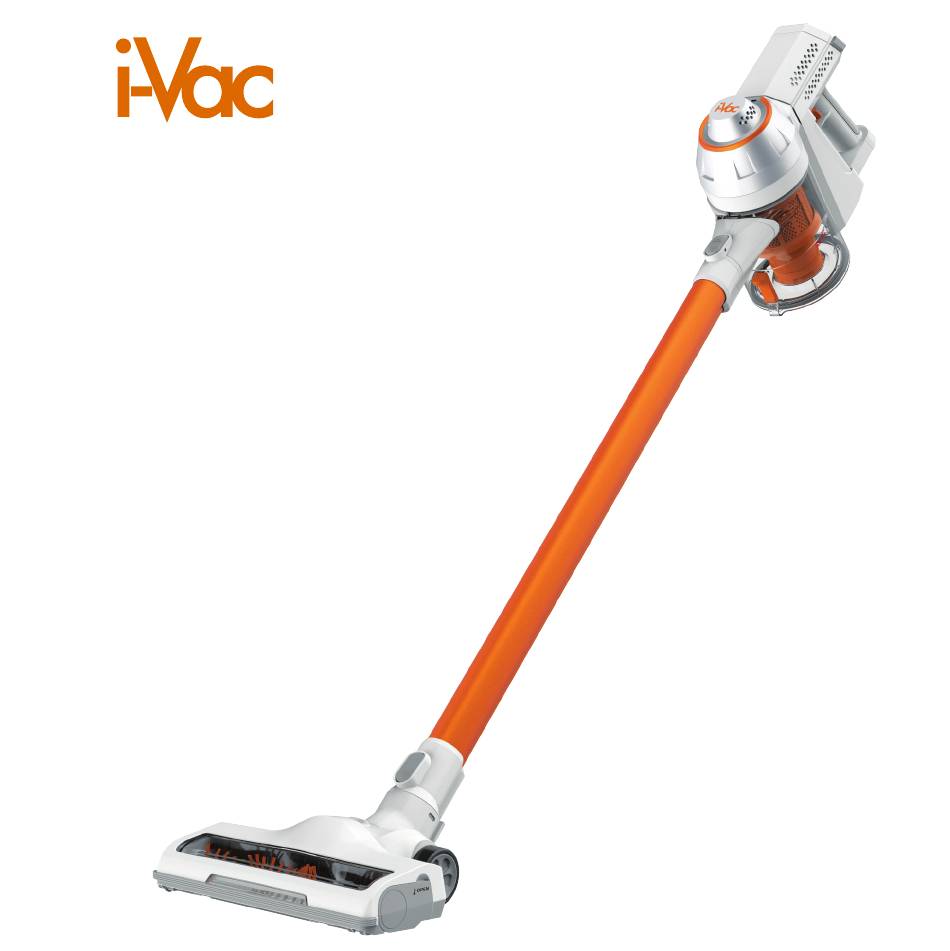

- Page 1 ULTRA LIGHT PLUS CORDLESS STICK VACUUM Ultra Lightweight Swivel Powerhead Lithium Performance...
- Page 2 Crevice Tool 2-in-1 Cleaning Tool...
-
Page 3: Specifications
Note: Wall mounting screws are not included. 15. 2-in-1 Cleaning Tool Specifications: Voltage: 21.6V DC Power: 130W Dust capacity: 400mL Battery type: 2000mAh Li-ion Please contact Godfreys Customer Care 1800 815 270, NZ 0800 282 288 to find your local spare parts provider. -
Page 4: Before You Begin
Before You Begin This cleaner must be operated in accordance with these instructions and used only for domestic household cleaning to remove DRY dirt and dust from household carpets, flooring, walls and fabrics. This cleaner is not fit to be used as an industrial cleaner and will void the manufacturer’s warranty if used inappropriately. -
Page 5: Safety Precautions And Warnings
Safety Precautions & Warnings IMPORTANT! Always switch off the appliance before cleaning, when not in use or attempting any maintenance task. The charger must only be connected to an AC power supply at the voltage shown on the rating label. This cleaner should only be used for its intended purpose as described in this instruction manual. - Page 6 Battery use and care 14. Do not use the appliance to pick up toxic materials (i.e. chlorine bleach, ammonia). The appliance is only to be used with the 15. Never operate or use the appliance without charger uniquely provided with the appliance. the filters in place.
-
Page 7: Installing The Battery
Assembly IMPORTANT! Always remove the battery from the appliance before fitting or removing accessories. Installing the Battery Align the sliding slot of the battery with the guide rail on the machine body. Insert the battery into the machine (as shown) until a “click”... - Page 8 Assembly (continued) Connecting the rod to the unit During installation of the rod, insert the plug end into the air inlet of the cleaner. Once securely in place, you will hear a “click” sound. Connecting accessories to the unit When inserting accessories into the cleaner you will hear a “click” sound when it is securely in place.
-
Page 9: Continuous Mode
Instructions for Use Continuous Mode To enable Continuous Mode, turn the switch towards the handle until it ‘clicks’ into place. To disable Continuous Mode, push the switch away from the handle until it ‘clicks’ into place. Attention: After each use, please ensure that the Continuous Mode switch is disabled. Failure to do so may cause battery failure. - Page 10 If this occurs, switch off the vacuum cleaner and remove the battery. Remove any object that has blocked the Swivel Powerhead, and switch on again. If the Swivel Powerhead does not start again after cleaning, do not try to dismantle the Swivel Powerhead. Please contact your local Godfreys store.
-
Page 11: Maintenance
Maintenance Charging the vacuum cleaner Insert the charger into the charging port on the vacuum cleaner. When the charging indicator light is flashing red, the vacuum cleaner is being charged. When the charging indicator light turns from red to green, the vacuum cleaner battery is fully charged. - Page 12 Maintenance (continued) IMPORTANT! Turn off the cleaner and remove the battery before conducting any maintenance tasks. It is recommended to clean the dust canister after each use or when dust reaches the max fill line. Emptying the Dust Canister Press the Dust Bin Lid Release button to open the bottom cover of the vacuum to empty the dust canister.
-
Page 13: Cleaning The Roller Brush
To remove the cyclone separator, turn the cyclone separator anticlockwise to unlock and release the separator. To remove the exhaust filter, press the Exhaust Filter Release button and remove it from the cleaner. Then, pull the filter out from the filter holder. The filters can be washed by washing under lukewarm water. -
Page 14: Spare Parts
Spare Parts Please contact Godfreys Customer Care: 1800 815 270, NZ: 0800 282 288 to find your local spare parts provider. Part Part Number Exhaust Filter 32201730 Battery 33201770 Dust Bin 33156293 Agitator 33788071 Powerhead 31155563 Charger Adaptor 33201771... -
Page 15: Troubleshooting
Troubleshooting Problems and solutions If you come across a problem, please use the checklist of troubleshooting tips before contacting Godfreys Customer Care. Fault Cause Solution Cleaner doesn’t start Flat battery Charge the vacuum cleaner Reduced suction The dust canister is full of dust... - Page 16 Call Godfreys Customer Care with any product queries In the event of service or advice being needed, please contact Electrical Home-Aids Pty Ltd, Level 1, Building 3, Brandon...
Need help?
Do you have a question about the i-Vac S10 ULTRA LIGHT PLUS and is the answer not in the manual?
Questions and answers

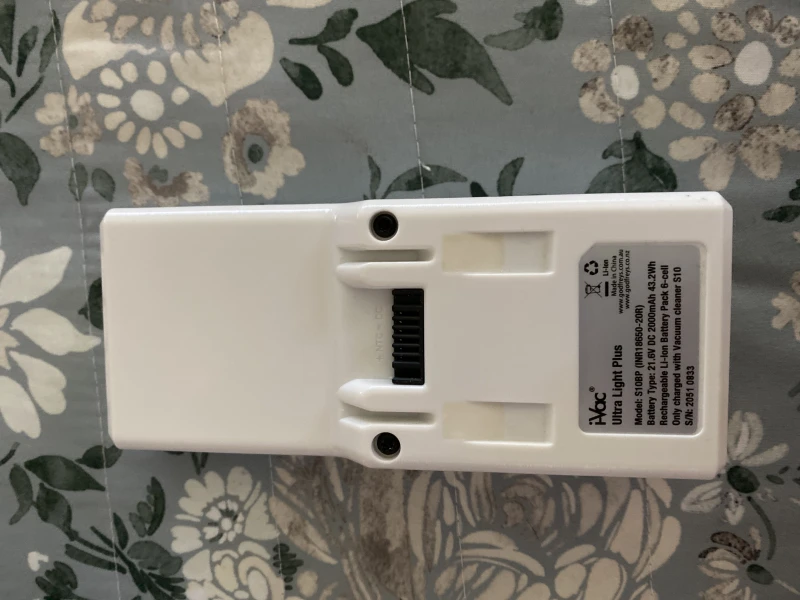

I need a battery for I vac ultra light plus it charges and soon as you start it it stops goes red straight away we’re can I get a battery from
You can buy a battery for the Godfreys i-Vac S10 ULTRA LIGHT PLUS by contacting Godfreys Customer Care to find your local spare parts provider.
This answer is automatically generated

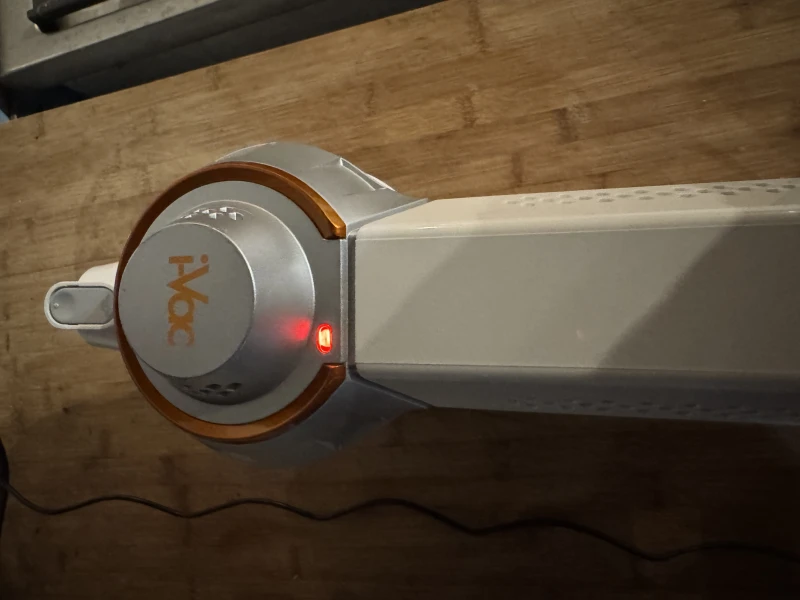

Brought a new charger and when placed on charge the charge light flashes once, then stays a solid red but never charges the battery.
A solid red charge light indicates that the Godfreys S10 ULTRA LIGHT PLUS vacuum cleaner is charging.
This answer is automatically generated
It keeps cutting out then goes for 10 seconds then cuts out. It’s only fairly new and has not had much use. We empty the dust container every use.
The Godfreys i-Vac S10 ULTRA LIGHT PLUS may be cutting out intermittently due to the battery not being inserted or clicked into the machine properly. To fix this, remove the battery and reinsert it until you hear a click, ensuring it is securely in place.
This answer is automatically generated
Where can I buy the battery for ivac ultra light plus?
Hi I would like to buy just charger I have lost mine in a house move
