Godfreys Titan 2000 Instruction Manual
  1. Manuals
  2. Brands
  3. Godfreys Manuals
  4. Vacuum Cleaner
  5. Titan 2000
  6. Instruction manual

Godfreys Titan 2000 Instruction Manual

Hide thumbs

Advertisement

Table of Contents

Bagless Vacuum Cleaner

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Titan 2000 and is the answer not in the manual?

Questions and answers

helen elsley
February 16, 2025

when switched on the motor is load and it doesn't appear to be sucking up the dirt

0
1 comments:
Mr. Anderson
February 16, 2025

The Godfreys Titan 2000 motor may be loud and not picking up dirt due to a clogged filter or dust bin. The pre-motor and exhaust filters should be checked and cleaned or replaced if they are visibly dirty. Additionally, ensure the dust bin is emptied and properly attached. Blockages in the hose, air inlet, or floor tool should also be checked and cleared if necessary.

This answer is automatically generated

0
Faye
January 31, 2025

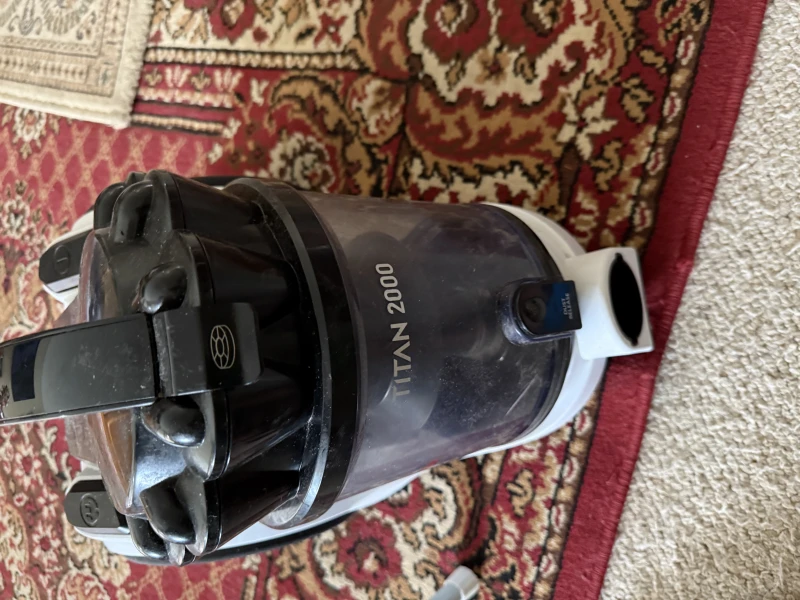

Whats cost of fixing the Titan 2000 bag less vacuum cleaner to fix

User image 679c6a1962477
0

Subscribe to Our Youtube Channel

Related Manuals for Godfreys Titan 2000

Summary of Contents for Godfreys Titan 2000

  • Page 1 Bagless Vacuum Cleaner...

  • Page 3: Specifications

    Titan 2000 Congratulations on the purchase of your new Titan 2000 vacuum cleaner. There are many useful features built into your vacuum cleaner. We recommend that you carefully read this instruction manual for the best results. Features: Hose Air Relief Valve 2.

  • Page 4: Before You Begin

    Before You Begin This cleaner must be operated in accordance with these instructions and used only for domestic household cleaning to remove DRY dirt and dust from household carpets, flooring, walls and fabrics. This cleaner is not fit to be used as an industrial cleaner and will void the manufacturer’s warranty if used inappropriately.

  • Page 5: Safety Precautions And Warnings

    Safety Precautions & Warnings IMPORTANT! Always switch off the cleaner and remove the plug from the electricity power supply before cleaning your appliance, when not in use or attempting any maintenance task. The cleaner must only be connected to an AC power supply at the voltage shown on the rating label.
  • Page 6 15. To prevent electrical shock, do not immerse the 24. Do not leave the appliance unattended when it is appliance, power cord or power plug into water connected to a mains power supply. or any other liquids. 25. Before carrying out any maintenance service or 16.

  • Page 7: Flexible Hose

    Assembling IMPORTANT! Always remove the power plug from the power supply before fitting or removing accessories! 1. Flexible Hose Fitting: Insert the flexible hose into the air inlet of the vacuum. Turn clockwise until it locks into place. Removing: To remove, turn the flexible hose anticlockwise and gently pull to release the flexible hose.
  • Page 8 Instructions for Use IMPORTANT! Do not exceed the red mark when extending the power cord. The red mark on the power cable indicates the ideal cable length. Turning On/Off the Cleaner Unwind a sufficient length of cable. The red mark on the power cable shows the ideal cable length.

  • Page 9: Turbo Floor Tool

    Accessories IMPORTANT! Always remove the power plug from the power supply before fitting or removing accessories. Combination Floor Tool Ideal for daily cleaning on carpets and hard floors. Note: The combination floor tool may be difficult to move on some carpeted surfaces, adjust the Air Relief Valve to reduce the suction pressure.
  • Page 10 Accessories (continued) Dusting Brush For multi-surface cleaning. Crevice Tool Perfect for eliminating dust from hard to reach places.

  • Page 11: Maintenance

    Maintenance WARNING! Ensure that the cleaner is disconnected from the mains power supply when performing any maintenance. Emptying and Cleaning the Dust Bin Gently remove the dust bin by pressing the Bin Release Button. Note: the dust bin should be emptied before dust and debris reaches the “MAX”...
  • Page 12 Maintenance (continued) Replacing the Dust Bin Filter IMPORTANT! Always remove the power plug from the power supply before performing any maintenance. Remove the dust bin from the cleaner. Lift the Filter Release to access the dust bin filter. The dust bin filter can now be replaced. Note: It is recommended to replace the filter every 6 months or when it becomes visibly dirty.

  • Page 13: Cleaning And Replacing The Exhaust Filter

    Cleaning and Replacing the Exhaust Filter WARNING! Ensure that the cleaner is disconnected from the mains power supply when performing any maintenance. The rear motor filter is installed behind the Exhaust Grill. Press the Exhaust Grill Buttons to access the exhaust filter. The filter can be cleaned using lukewarm water.
  • Page 14 Cleaning the Turbo Floor Head WARNING! Ensure that the cleaner is disconnected from the mains power supply when performing any maintenance. Remove the brush cover by sliding the release buttons, as shown. Clean the roller brush and use a pair of scissors to remove hair wrapped around the roller brush.

  • Page 15: Troubleshooting

    Turn off the cleaner immediately. when switched on. Check the appliance to ensure that there are no blockages. Spare Parts Please contact Godfreys Customer Care: 1800 815 270, NZ: 0800 282 288 to find your local spare parts provider. Part Part Number...

  • Page 16: Conditions Of Warranty

    Bagless Vacuum Cleaner Conditions of warranty Your Titan 2000 cleaner, in the case of domestic use, has a so at its own cost. one year parts and labour warranty against product defects Electrical Home-Aids Pty Ltd is unable to accept...
