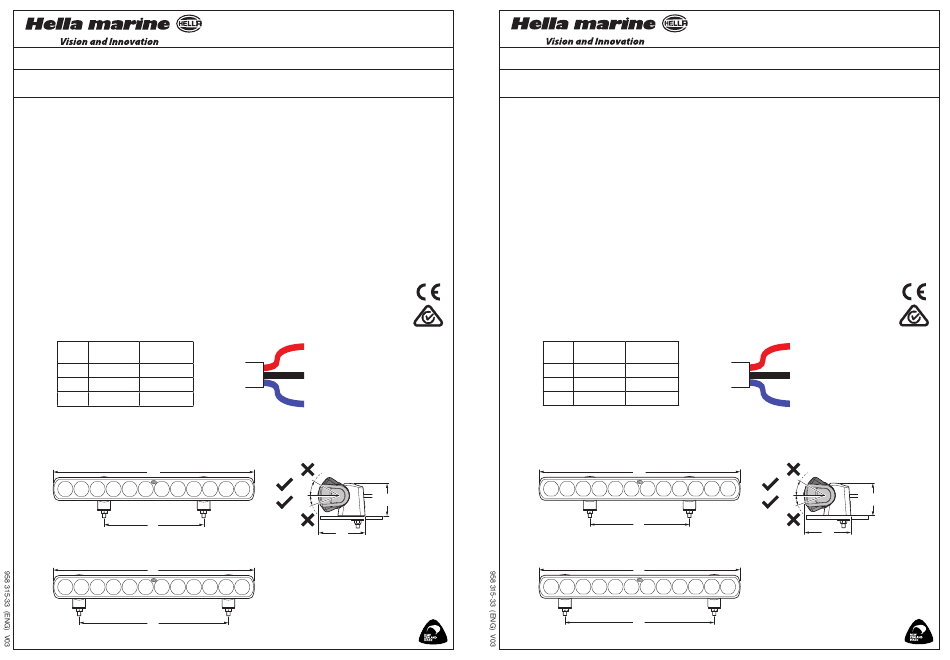

Hella marine Sea Hawk-XLB Quick Start Manual

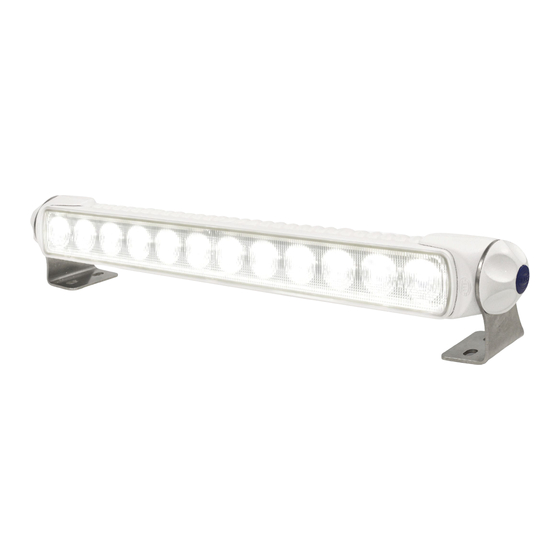

Sea Hawk-XLB LED Deck Floodlight
Hella marine LED products offer many advantages over conventional bulb lamps. Significantly reduced power consumption, ultra
long life and high tolerance to shock and vibration make HELLA LED lamps the ideal choice for the harsh marine environment.
Light Source LED
Light Output ~2200 lumens (white)
Colour Temperature 5000K (white)
Operating Voltage Multivolt TM 9-33V DC
Power Consumption High 25W (2A @ 12V / 1A @ 24V)
Low 5W (not applicable to pencil beam lamp models)
Housing Material 'Non-metal' thermally conductive housing
®
Lens Material Heavy duty Grilamid
Cable Pre-wired with tinned marine cable
Degree of Protection IP 6K7 IP6K9K (Completely sealed)
Weight 580g (including cable)
Manufacturing Location New Zealand
Electrical Protection This lamp is protected against overvoltage, voltage spikes, reverse polarity
connection and negative voltage
Electromagnetic Compatibility (EMC)
This LED lamp is an electronic device. The electrical circuits contain components that suppress possible interference, both
emission as well as susceptibility, to the limits prescribed in international regulations.
Wiring and High / Low mode activation
The lamp defaults to High mode when positive (red) and negative (black) cables are connected.
To activate Low mode, connect blue cable to positive and the black cable to negative.
Switching between Low and High modes can be achieved using any regular ON / OFF / ON switch.
Cable Connect to Consumption
colour
Red Positive (+) 25 watts
Black Negative (-)
Blue* Low mode (+) 5 watts
*Low mode not available on pencil beam lamp models
LED modules are polarity conscious. Reverse polarity will not damage this product but will inhibit its function. HELLA recommends
wire connections be soldered, and heat shrink tubing applied to seal the joint. Each lamp must be protected by a fuse rated at
5 amperes maximum.
a
d
a
d
www.hellamarine.com
spikes.
+ve Red = High (25W)
Tinned cable
-ve Black
+ve Blue* = Low (5W)
30º
b
20º
c
Dimensions:
a = 350mm / 13.78"
b = 56mm / 2.20"
c = 81mm / 3.19"
d = min. 200mm / 7.87"
max. 280mm / 11.02"
Sea Hawk-XLB LED Deck Floodlight
Hella marine LED products offer many advantages over conventional bulb lamps. Significantly reduced power consumption, ultra
long life and high tolerance to shock and vibration make HELLA LED lamps the ideal choice for the harsh marine environment.
Light Source LED
Light Output ~2200 lumens (white)
Colour Temperature 5000K (white)
Operating Voltage Multivolt TM 9-33V DC
Power Consumption High 25W (2A @ 12V / 1A @ 24V)
Low 5W (not applicable to pencil beam lamp models)
Housing Material 'Non-metal' thermally conductive housing
Lens Material Heavy duty Grilamid ®
Cable Pre-wired with tinned marine cable
Degree of Protection IP 6K7 IP6K9K (Completely sealed)
Weight 580g (including cable)
Manufacturing Location New Zealand
Electrical Protection This lamp is protected against overvoltage, voltage spikes, reverse polarity
connection and negative voltage
Electromagnetic Compatibility (EMC)
This LED lamp is an electronic device. The electrical circuits contain components that suppress possible interference, both
emission as well as susceptibility, to the limits prescribed in international regulations.
Wiring and High / Low mode activation
The lamp defaults to High mode when positive (red) and negative (black) cables are connected.
To activate Low mode, connect blue cable to positive and the black cable to negative.
Switching between Low and High modes can be achieved using any regular ON / OFF / ON switch.
Cable Connect to Consumption
colour
Red Positive (+) 25 watts
Black Negative (-)
Blue* Low mode (+) 5 watts
*Low mode not available on pencil beam lamp models
LED modules are polarity conscious. Reverse polarity will not damage this product but will inhibit its function. HELLA recommends
wire connections be soldered, and heat shrink tubing applied to seal the joint. Each lamp must be protected by a fuse rated at
5 amperes maximum.
a
d
a
d
www.hellamarine.com
spikes.
+ve Red = High (25W)
Tinned cable -ve Black
+ve Blue* = Low (5W)
30º
b
20º
c
Dimensions:
a = 350mm / 13.78"
b = 56mm / 2.20"
c = 81mm / 3.19"
d = min. 200mm / 7.87"
max. 280mm / 11.02"
