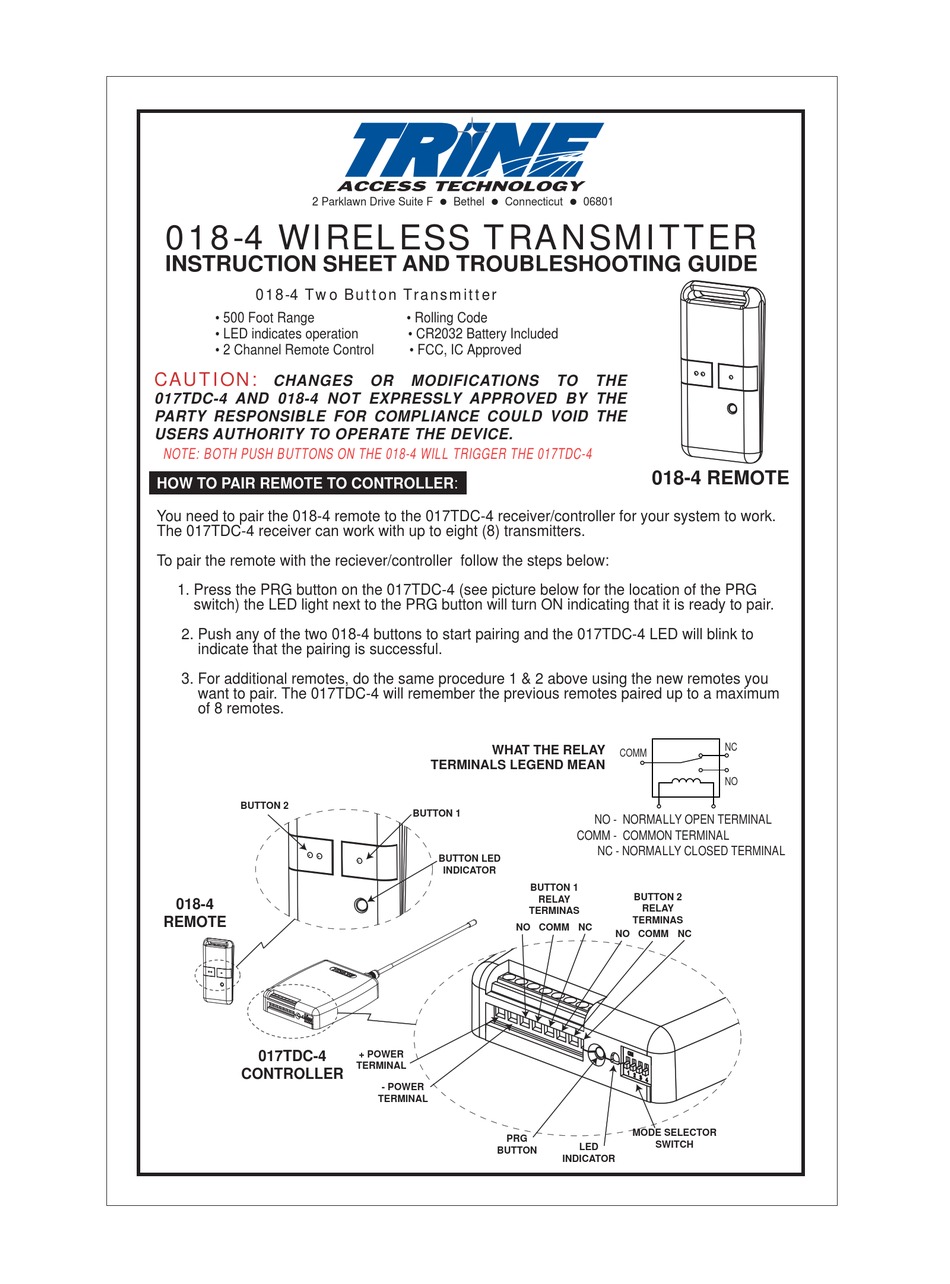

Trine 018-4 Instruction Sheet And Troubleshooting Manual

2 Parklawn Drive Suite F  Bethel  Connecticut  06801
018-4 WIRELESS TRANSMITTER
INSTRUCTION SHEET AND TROUBLESHOOTING GUIDE
018-4 Two Button Transmitter
• 500 Foot Range
• LED indicates operation
• 2 Channel Remote Control
CAUTION:
CHANGES
017TDC-4 AND 018-4 NOT EXPRESSLY APPROVED BY THE
PARTY RESPONSIBLE FOR COMPLIANCE COULD VOID THE
USERS AUTHORITY TO OPERATE THE DEVICE.
NOTE: BOTH PUSH BUTTONS ON THE 018-4 WILL TRIGGER THE 017TDC-4

HOW TO PAIR REMOTE TO CONTROLLER:

You need to pair the 018-4 remote to the 017TDC-4 receiver/controller for your system to work.
The 017TDC-4 receiver can work with up to eight (8) transmitters.
To pair the remote with the reciever/controller follow the steps below:
1. Press the PRG button on the 017TDC-4 (see picture below for the location of the PRG
switch) the LED light next to the PRG button will turn ON indicating that it is ready to pair.
2. Push any of the two 018-4 buttons to start pairing and the 017TDC-4 LED will blink to
indicate that the pairing is successful.
3. For additional remotes, do the same procedure 1 & 2 above using the new remotes you
want to pair. The 017TDC-4 will remember the previous remotes paired up to a maximum
of 8 remotes.
BUTTON 2
018-4
REMOTE
017TDC-4
CONTROLLER
• Rolling Code
• CR2032 Battery Included
• FCC, IC Approved
OR MODIFICATIONS
WHAT THE RELAY
TERMINALS LEGEND MEAN
BUTTON 1
BUTTON LED
INDICATOR
BUTTON 1
TERMINAS
NO
+ POWER
TERMINAL
- POWER
TERMINAL
PRG
BUTTON
TO THE
018-4 REMOTE
COMM
NO - NORMALLY OPEN TERMINAL
COMM - COMMON TERMINAL
NC - NORMALLY CLOSED TERMINAL
BUTTON 2
RELAY
RELAY
TERMINAS
COMM NC
NO COMM NC
MODE SELECTOR
SWITCH
LED
INDICATOR
NC
NO
