Summary of Contents for Razer BASILISK
- Page 1 RAZER BASILISK MASTER GUIDE...

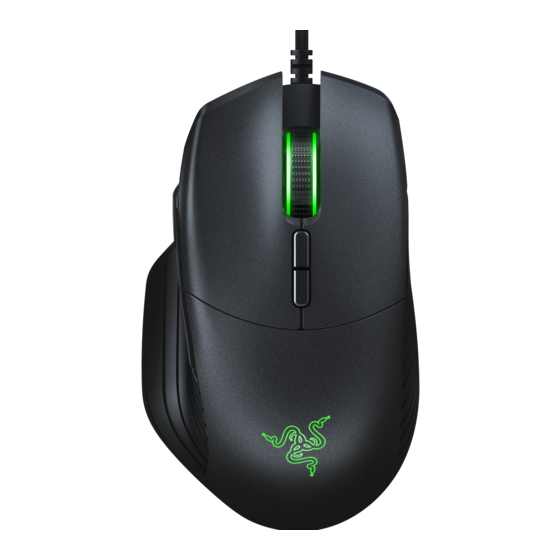

- Page 2 Fast. Accurate. Deadly. Take your FPS skills to the next level with the Razer Basilisk. Boasting the most advanced optical sensor in the world and armed with features such as a dial for customizing scroll wheel resistance and a removable DPI clutch, the Razer Basilisk is the ultimate FPS mouse.
- Page 3 3. TECHNICAL SPECIFICATIONS ........................5 4. DEVICE LAYOUT ............................6 5. SETTING UP YOUR RAZER BASILISK ......................7 6. INSTALLING RAZER SYNAPSE FOR YOUR RAZER BASILISK ..............8 7. CONFIGURING YOUR RAZER BASILISK ....................9 8. SAFETY AND MAINTENANCE ........................ 31 9.
- Page 4 1. PACKAGE CONTENTS / SYSTEM REQUIREMENTS PACKAGE CONTENTS ▪ Razer Basilisk gaming mouse ▪ Removable rubber thumb cap ▪ 2x removable DPI clutches ▪ Important Product Information Guide SYSTEM REQUIREMENTS PRODUCT REQUIREMENTS ▪ Mac with a free USB port RAZER SYNAPSE REQUIREMENTS ▪...
- Page 5 Register your product online at razerid.razer.com/warranty using your Razer ID to get real-time information on your product’s warranty status. If you haven’t registered for a Razer ID yet, register now at razerid.razer.com to get a wide range of Razer benefits.
- Page 6 ▪ Eight independently programmable Hyperesponse buttons ▪ Gaming-grade tactile scroll wheel with customizable resistance ▪ Ergonomic right-handed design with enhanced rubber side grips ▪ Razer ChromaTM lighting with true 16.8 million customizable color options ▪ 1000 Hz Ultrapolling ▪ Razer Synapse 3 (Beta) enabled APPROXIMATE SIZE &...
- Page 7 Profile button Default DPI stages are as follows: 800, 1800, 4500, 9000, and 16000. The default DPI clutch sensitivity is 800. The DPI stages and DPI clutch sensitivity can be customized using Razer Synapse. ™ F O R G A ME R S . B Y G A M E R S .
- Page 8 ADJUSTING THE SCROLL WHEEL RESISTANCE Your Razer Basilisk comes with a dial that allows you to customize the force needed to rotate the scroll wheel. Slide up or slide down on the scroll wheel resistance adjustment dial to increase or decrease the scroll wheel resistance accordingly.
- Page 9 Step 3: Create your Razer ID or log into Razer Synapse with an existing account. *Applicable for Windows 8 or later. Note: By default, the Razer Basilisk is set to spectrum cycling. To customize the lighting, please install Razer Synapse.
- Page 10 Operating System. MOUSE TAB The Mouse Tab is your default tab when you first install Razer Synapse. This tab allows you to customize your device’s profiles, button assignments, performance, lighting, and calibration.
- Page 11 PROFILE A profile is a convenient way of organizing all your custom settings and you can have an infinite number of profiles at your disposal. Any changes made within each tab are automatically saved to the current profile and stored into the cloud servers. You can create a new profile by clicking the button or delete the current profile by clicking button.
- Page 12 CUSTOMIZE TAB The Customize Tab is where you can modify the basic functionalities of your device such as button assignments to suit your gaming needs. The changes made in this tab are automatically saved to your current profile. ™ F O R G A ME R S . B Y G A M E R S .
- Page 13 BUTTON ASSIGNMENT MENU Initially, each key is set to DEFAULT. However, you may change the function of these buttons by clicking the desired button to access the Button Assignment Menu. Listed below are the customization options and their description. Default This option enables you to return the key to its original function.
- Page 14 Mouse Function This option allows you to change any key into a mouse button function. To choose a mouse function, select MOUSE FUNCTION from the Button Assignment Menu and an ASSIGN BUTTON submenu will appear. Listed below are the functions which you can choose from the Assign Button submenu: ▪...
- Page 15 Sensitivity Stage of your Razer gaming mouse. When you select Inter-device from the Button Assignment Menu, a sub-menu will appear. DEVICE TO LINK allows you to choose which currently connected Razer device can be linked while FUNCTION allows you to choose which functionality you want to use for the linked device.
- Page 16 Launch Program allows you to launch a program or a website using the assigned key. When you select Launch Program from the Button Assignment Menu, two options will appear which allow you to search for the specific program you want to open or write the address of the website you want to visit.
- Page 17 This option enables you to assign the key into an Operating System shortcut command. For more information, please visit: http://support.apple.com/kb/ht1343 Disable This option renders the assigned key unusable. Use Disable if you do not want to use the key or if it interferes with your gaming.
- Page 18 Sensitivity pertains to how much effort is needed to move the mouse pointer in any direction. The higher the sensitivity, the more responsive the mouse will be. (Recommended setting: 1600 – 1800) Enable X-Y Sensitivity By default, the X-axis (horizontal) and Y-axis (vertical) use the same sensitivity values. However, you may set different sensitivity values to each of the axes by selecting the ENABLE X-Y SENSITIVITY option.
- Page 19 The Lighting tab enables you to modify your Razer device’s light settings. Effect The Effect function allows you to customize your Razer device by allowing you to choose from different quick effects. If you have other Razer Chroma-enabled devices, you can synchronize their basic lighting effects by clicking the button.
- Page 20 Brightness You can increase/decrease the brightness of your device’s LEDs using the luminance slider. You can also switch off your device’s lighting in response to your system’s display turning off. ™ F O R G A ME R S . B Y G A M E R S .
- Page 21 Quick effects A number of basic lighting effects can be selected and applied to your mouse lighting as a whole, such as spectrum lighting, breathing etc. Select your desired effect and their corresponding properties (such as color) from the bottom area of this tab. Name Description How to set up...
- Page 22 CALIBRATION TAB The Calibration Tab allows you to optimize your Razer Precision Sensor to any mousing surface for better tracking. To use this feature, you must click ENABLE SURFACE CALIBRATION. The LIFTOFF RANGE allows you to set the distance in which the sensor stops tracking as it is being lifted away from its mousing surface.
- Page 23 SPEED or CONTROL if applicable. If you wish to learn more about a particular mouse mat or if you wish to purchase a Razer mouse mat, you may do so by clicking the button.
- Page 24 Other Mousing Surfaces If you are using a non-Razer mouse mat or a non-standard mousing surface, select OTHERS then click button to access the manual calibration submenu. ™ F O R G A ME R S . B Y G A M E R S .
- Page 25 This submenu enables you to manually adjust the Razer Precision Sensor to suit any mousing surface. To begin calibrating the sensor, click the button. After clicking the button, Razer Synapse will begin tuning the sensor. Please avoid moving the Razer Basilisk during this time.
- Page 26 Once the Razer Precision Sensor is ready, click the left mouse button to start the process. Move the mouse across your entire mousing surface in a zigzag pattern as shown on the screen guide. When you have moved through your entire mousing surface, click the left mouse button. This will bring you back to the manual calibration submenu which contains new information regarding your mousing surface.
- Page 27 MACROS TAB The Macros Tab allows you to create a series of precise keystrokes and button presses. This tab also allows you to have numerous macros and extremely long macro commands at your disposal. The Macro section works similarly to Profile wherein you can rename a macro by typing on the field below MACRO NAME.
- Page 28 The Macro section allows you to input the delay in-between commands. In RECORD DELAY the delay in-between commands are registered as how it is entered. The DEFAULT DELAY uses a predefined time (expressed in seconds) as the delay. And NO DELAY omits all the pauses in-between keystrokes and button presses.
- Page 29 Once you have recorded a macro, you may edit the commands you have entered by selecting each command on the macro screen. Each keystroke or button press is arranged sequentially with the first command shown at the top of the screen. button allows you to edit a particular command and the button enables you to delete a command.
- Page 30 Once you have pressed the button, a new display window will appear beside the list of macro commands. The dropdown menu on this window allows you to choose a keystroke or a delay to be added in before or after the highlighted macro command. ™...
- Page 31 You may add in a new set of macro commands by clicking the button on the keystroke menu; or input time delays on the duration field using the delay menu. ™ F O R G A ME R S . B Y G A M E R S .
- Page 32 8. SAFETY AND MAINTENANCE SAFETY GUIDELINES In order to achieve maximum safety while using your Razer Basilisk, we suggest that you adopt the following guidelines: Should you have trouble operating the device properly and troubleshooting does not work, unplug the device and contact the Razer hotline or go to support.razer.com...
- Page 33 Razer. Some surfaces will cause undue wear on the feet requiring constant care and eventual replacement. Do note that the sensor of the Razer Basilisk is ‘tuned’ or optimized especially for the Razer mouse mats. This means that the sensor has been tested extensively to confirm that the Razer Basilisk reads and tracks best on Razer mouse mats.
- Page 34 Product. In no event shall Razer’s liability exceed the retail purchase price of the Product.
