Lumiscope LUMINEB II 5710 Operation Instructions Manual

Compressor nebulizer

Advertisement

Model 5710
LUMINEB II
Compressor Nebulizer
Operation Instructions
5710-INS-LAB-RevB14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LUMINEB II 5710 and is the answer not in the manual?

Questions and answers

Summary of Contents for Lumiscope LUMINEB II 5710

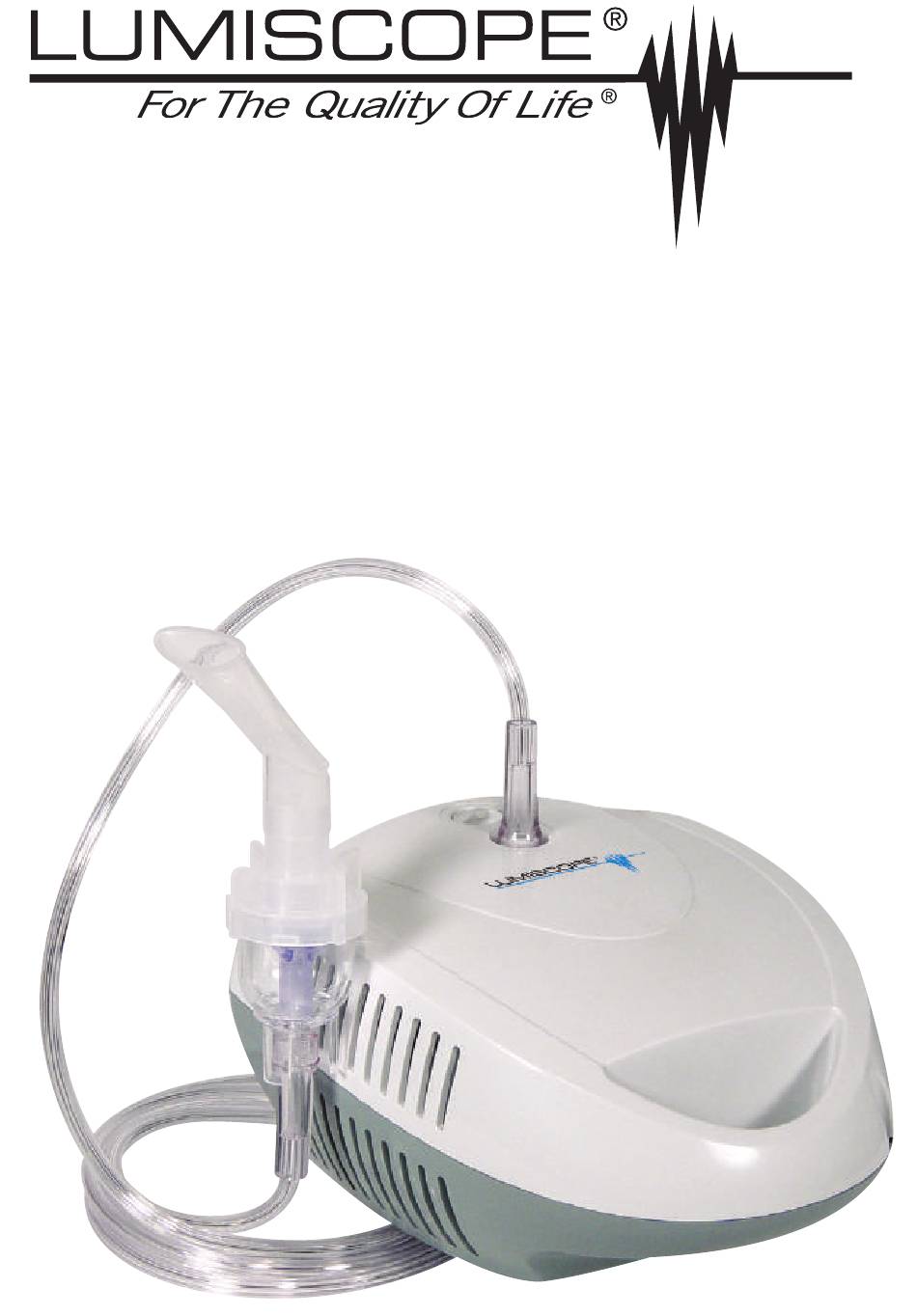

  • Page 1 Model 5710 LUMINEB II Compressor Nebulizer Operation Instructions 5710-INS-LAB-RevB14...
  • Page 2: Table Of Contents

    Graham-Field, Lumiscope, and Lumiscope For The Quality of Life are registered trademarks of GF Health Products, Inc . 5710-INS-LAB-RevB14...
  • Page 3: Introduction

    INTRODUCTION: Congratulations on purchasing your new LUMINEB II Compressor Nebulizer . It is a compact medical device designed to efficiently deliver physician prescribed medication to the bronchial lung passages . With proper care and use, it will provide you with many years of reliable treatment . This product has been developed for the treatment of asthma, allergies and other respiratory disorders .
  • Page 4: Warnings

    • Clean the unit and accessories carefully with a slightly damp, soft cloth . Do not apply excess pressure . Do not use solvents or cleaners on either the unit or accessories . • Only use the included Lumiscope AC adapter for AC powering. Do not leave the unit plugged in while unattended . • Never block the air openings of the unit or operate it where the air openings may be obstructed .
  • Page 5: Parts Identification

    PARTS IDENTIFICATION: 1 . Nebulizer Compressor 4 . Tube Connector 7. Power Cord 10 . Power Cord Plug 2 . Air Tube 5 . Standard 8 . Air Vents 11 . Filters Mouthpiece 3 . Filter Compartment 6 . Nebulizer 9 . On/Off Switch OPTIONAL ACCESSORIES AVAILABLE Adult Mask (item 5704) 5710-INS-LAB-RevB14...
  • Page 6: Using Your Lumineb Ii Compressor Nebulizer

    USING YOUR LUMINEB II COMPRESSOR NEBULIZER: Note: Prior to initial operation, the nebulizer should be thoroughly cleaned. Place your LUMINEB II on a flat and stable surface . Be sure that you can easily reach the controls while you are seated . Gently twist the top part of the nebulizer assembly counter-clockwise to disassemble the nebulizer .
  • Page 7 Attach one end of the air tube to the base of the nebulizer . (fig . 4) Attach the other end of the air tube to the air outlet on the top of the LUMINEB II . (fig .4) Figure 4 7. Attach the standard mouthpiece to the top of nebulizer assembly .
  • Page 8: Cleaning & Disinfecting Your Lumineb Ii

    IMPORTANT: The compressor motor has a thermal protector which will shut off the unit before it overheats. When the thermal protector shuts the unit off: Switch off the LUMINEB II . Unplug the unit from the electrical outlet . Wait 30 minutes for the motor to cool down before another treatment . Make sure the air openings are not obstructed .
  • Page 9: Changing The Filter

    Submerge the cleaned components in the water and vinegar solution for thirty minutes . CHANGING THE FILTER Use only Lumiscope nebulizer filters . Do not substitute cotton or any other materials . Do not wash, clean or re-use a filter .
  • Page 10: Specifications

    SPECIFICATIONS: Method of Nebulization Piston Driven Power AC 120V, 60Hz Power Consumption 70 Watts Medication Capacity 5 ml Particle Size 4 µm Sound Level ~ 60dba Maximum Medication Capacity 13ml (cc) Average Nebulization Rate 0 .2ml/min Compressor Pressure Range 30 - 36 Psi (210 - 250 KPa / 2 .1 - 2 .5 bar) Operating Pressure Range 8 - 16 Psi (50 - 100 KPa / 0 .5 - 1 .0 bar) Liter Flow Range...
  • Page 11: Five-Year Limited Warranty

    FIVE-YEAR LIMITED WARRANTY: SCOPE OF WARRANTY GF Health Products, Inc . (“GF”) warrants to the original purchaser (“Customer”) only, that it will replace or repair components, at GF’s sole discretion, that are defective in material or workmanship under normal use for a period of five years after the purchase date unless there is an expiration date on the component in which case the warranty shall expire on the earlier of the warranty period or the expiration date .
