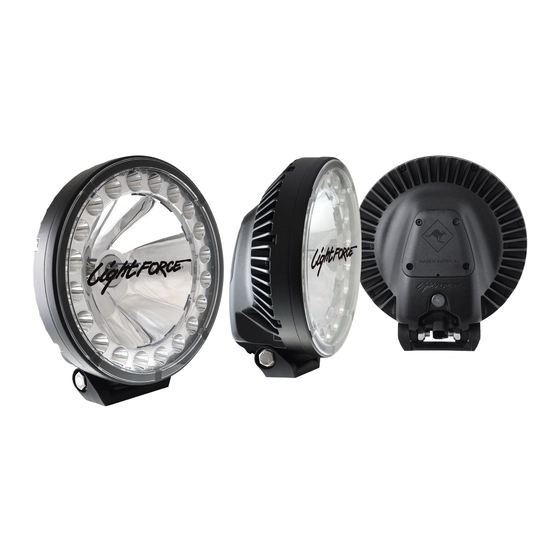

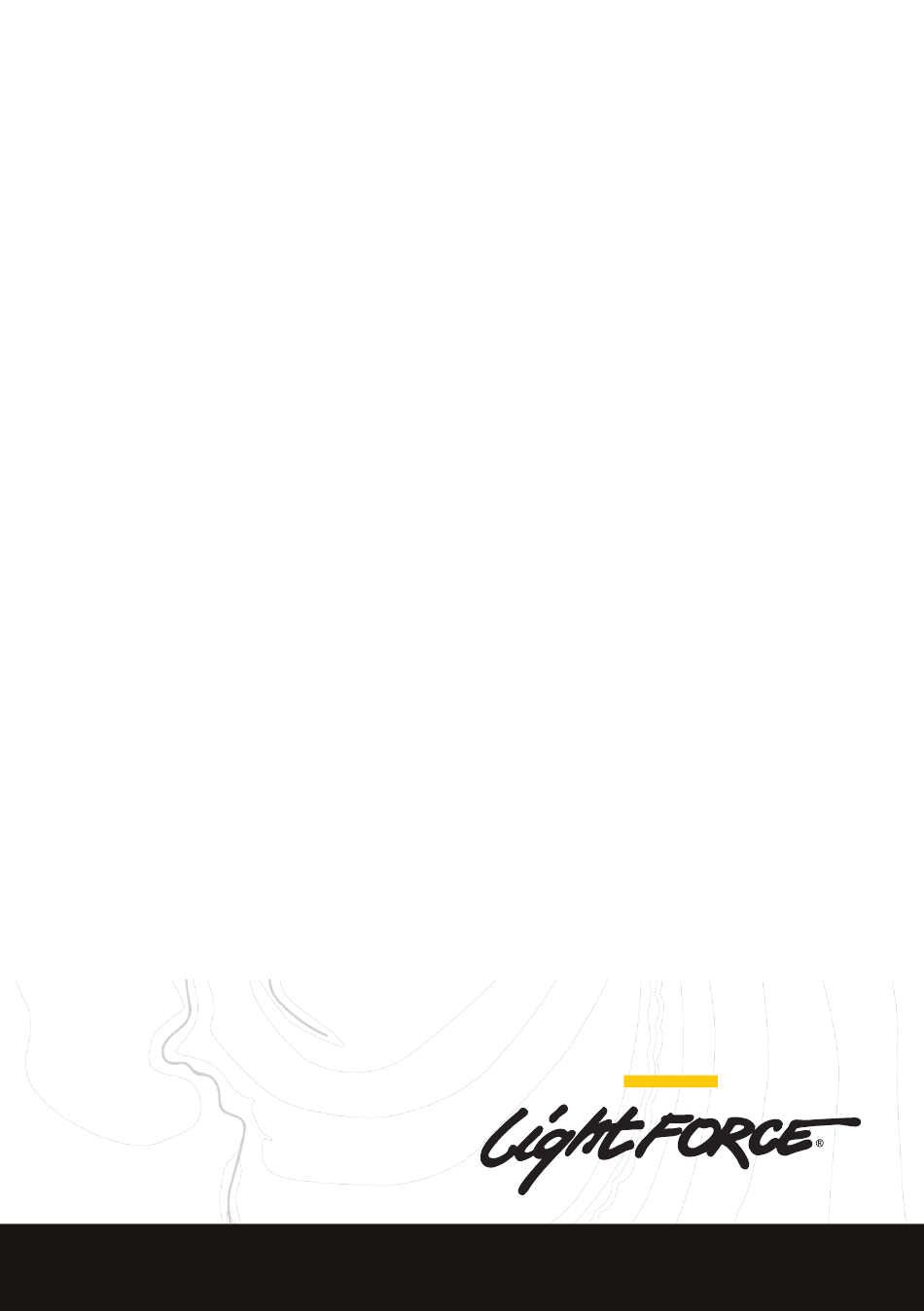

- Page 1 USER INSTRUCTIONS HTX2 HYBRID DRIVING LIGHT.
-
Page 2: Kit Contents
KIT CONTENTS TOOLS REQUIRED • 1 x 230mm HTX2 Hybrid Driving light • 17mm and 11mm socket on ratchet • 1 x Spot filter (fitted to light) • Torque wrench (recommended). • 1 x Reversible mounting bracket (fitted loose to light) •... -
Page 3: Important Notes
GENERAL CARE AND SAFETY TIPS To wash your lights, use plenty of warm soapy water and a soft cloth only (this prevents surfaces from marking). Never use any solvent based cleaners or industrial detergents when cleaning these lights. Handle the base of the bulb only, if the glass gets dirty then clean with isopropyl alcohol or methylated spirits. - Page 4 Additional mounting bolts are provided - If extra mounting security is required or you have a problem with your light rotating, there are two mounting holes either side of the main M10 mounting bolt that can be utilised. Also the optional Xtreme Top Stay Bracket provides additional stability during tough terrain. USER INSTRUCTIONS LIGHTFORCE.COM...
-
Page 5: Electrical Connections
For maximum performance, three mode operation and safety we recommend the use of the optional wiring harness (part number LFDLHDS) to fit the 12V version of the HTX2 to a vehicle – for fitment follow the installation instructions included with the harness. -
Page 6: Technical Specifications
(AWG 18) minimum per circuit. FASTENER TORQUE SPECIFICATIONS • M10 x 35mm bottom mount bolt - 35Nm (26lb-ft) • M4 x 10mm Rear cover - 2.5Nm (1.84lb-ft) • M6 x 30mm additional bottom mounting bolts - 4Nm (2.95lb-ft). USER INSTRUCTIONS LIGHTFORCE.COM... - Page 7 DESCRIPTION LFDLHDS HTX / HTX2 dual switching dual relay harness (12V only) HTXM2TSB HTX2 Xtreme Top Stay Bracket - (not compatible with original HTX) HTXMK2SFL HTX2 spot filter - (not compatible with original HTX) HTXMK2CFL HTX2 combo filter - (not compatible with original HTX)
-
Page 8: Electrical Shock
Refit rear cover to housing ensuring the rear cover seal (6) and spring (7) are still in place. If seal becomes dislodged refit to the rear cover. 10. Refit the four socket head screws to the specified torque of 2.5 Nm. USER INSTRUCTIONS LIGHTFORCE.COM... -
Page 9: Filter Removal
Pointing the light upwards can cause heat damage to the lens. Failure to comply with this requirement may void warranty. The HTX2 Black Covers should never be installed on your HTX2 Hybrid Driving Lights when they are in operation as this can cause catastrophic failure due to overheating. -
Page 10: Making A Claim
This warranty will not apply if you do not supply to REPAIR OR REPLACEMENT OF A PRODUCT us or to our Lightforce Affiliates information that OR PARTS: we reasonably request to enable us to perform our obligations under this warranty. -
Page 11: Statutory Rights
(including in contract, meaning of the Australian Consumer Law), is negligence or other tort, or under any other limited at the option of Lightforce, to: legal doctrine), in connection with the The replacement or repair of the product,... - Page 12 All logos and images are subject to relevant trademark and copyright protection. Copyright © Lightforce Australia Pty Ltd 2019. Data and specifications may be subject to change without notice. Lightforce Australia Pty Ltd shall not be liable for damage, malfunction, failure resulting from accident, misuse, misapplication, unauthorised repair, neglect, modification, unauthorised or non standard replacement parts, accessories, bulbs, batteries or voltage or operation of the product beyond its technical and or environmental specification.
