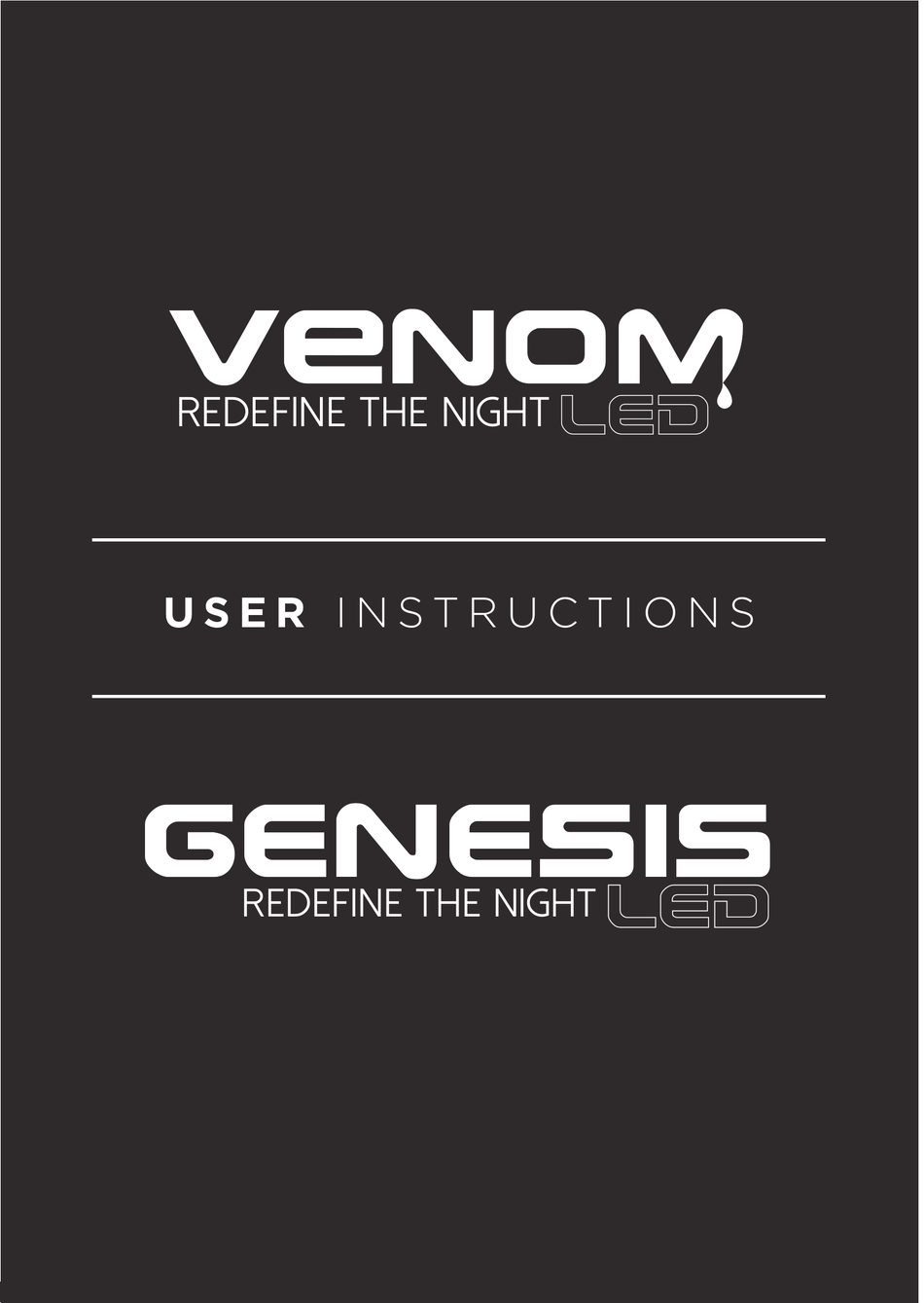

- Page 1 VENO Redefine The Night U S E R I N S T R U C T I O N S genesis Redefine The Night...
- Page 2 1 x 4 pin high current waterproof harness adaptor 2 x 1/4” x 1 1/4” long UNC stainless steel hex bolt with washer and nut (in bag) 1 x User instructions LIGHTFORCE AUSTRALIA VENOM & GENESIS LED USER INSTRUCTIONS V1.0 / DECEMBER 16...
- Page 3 TOOLS REQUIRED • 17mm socket on ratchet • 7/16” socket (optional for DL210 mounting) • Torque wrench GENERAL CARE AND SAFETY TIPS To wash your lights, use plenty of warm soapy water and a soft cloth only (this prevents surfaces from marking).
-
Page 4: Important Notes
Fit the washer and M10 nyloc then tighten using a 17mm socket & ratchet to specified torque (35Nm)- do not use rattle guns. Tighten 2 x M10 x 35 side bolts to recommended torque (35Nm). LIGHTFORCE AUSTRALIA VENOM & GENESIS LED USER INSTRUCTIONS V1.0 / DECEMBER 16... - Page 5 OPTIONAL FOR GENESIS LED For high vibration environments we recommend fitting the supplied 1/4” x 1 1/4” long UNC stainless steel hex bolts with washers and nuts. Torqued to 8Nm Side Bolt Optional M10 x 35 Mounting Bolt M10 x 35 Side Bolt M10 x 35 NOTE...
-
Page 6: Electrical Connections
NOTE: To operate night time positioning, ensure blue wire is also connected to ignition signal wire. Warning: Only connect positioning lights in locations where they are legal to use. Please check local laws. LIGHTFORCE AUSTRALIA VENOM & GENESIS LED USER INSTRUCTIONS V1.0 / DECEMBER 16... - Page 7 PLEASE NOTE Lightforce driving lights are designed to be mounted in the horizontal/forward facing position only. Pointing the light upwards can cause heat damage to the lens. Failure to comply with this requirement may void warranty.
- Page 8 Insert the filter at the top position • Push filter onto bezel using filter tab until side clips are engaged • Ensure filter is correctly aligned within bezel LIGHTFORCE AUSTRALIA VENOM & GENESIS LED USER INSTRUCTIONS V1.0 / DECEMBER 16...
- Page 9 GENESIS LED // FILTER REMOVAL • Unlock each filter tab from the light by lifting the rear of the tab away from the bezel • Swing the base of the filter away from the light • The filter will drop down and away from the light GENESIS LED // FILTER REFITTING •...
- Page 10 Cast aluminium housing and bezel • Hard-wearing UV stable powder coat finish *CISPR25 is the internationally recognised standard covering allowable limits of electromagnetic radiated and conducted interference for components installed in vehicles LIGHTFORCE AUSTRALIA VENOM & GENESIS LED USER INSTRUCTIONS V1.0 / DECEMBER 16...
-
Page 11: Fastener Torque Specifications
GENESIS LED // TECHNICAL SPECIFICATIONS • Power: 140 Watts • Colour temperature: 5000K • Raw lumens: 13850lm • LED lifespan: 50,000 hours • Effective lumens: 12000lm • Input cable length: 460mm • Input voltage range: 10 – 32V • Operating temperature: -40 to 63C •... - Page 12 These replaceable covers should be renewed from time to time to protect your investment and maintain maximum beam output. Your Venom LED & Genesis LED lights come standard with spot filters. Clear combo filters are used to change the beam pattern.
- Page 13 GENESIS LED TOP STAY BRACKET (Part No. DL210TSB) Your Genesis LED light can be used with an upper stay bracket for increased mounting rigidity. NOTE This is recommend when using lights in high vibration environments...
- Page 14 Remove the standard M10 bolts and washers from each side of the mounting bracket and fit the anti-theft bolts, reusing the existing washers. Each bolt is 35mm in length exclusively designed for use with the Genesis and Venom LED driving lights SECURING MOUNTING BRACKET TO VEHICLE – replace standard nyloc nuts •...
- Page 15 Driving light harness 12V 4 pin, 3 stage switch operation with waterproof LFDLHTS connectors. Suits DL150/DL210 Safeguard Anti-theft security lock set suits Venom LED & Genesis LED - kit ATNSG2 includes 4 x 35mm bolts, 2 nuts and 1 key...
-
Page 16: Warranty
Rifle Systems products), one (1) year from the date of purchase specified on your sales receipt or invoice unless otherwise notified by Lightforce in writing prior to or at the date of purchase. LIGHTFORCE AUSTRALIA VENOM & GENESIS LED USER INSTRUCTIONS... - Page 17 WHAT THIS WARRANTY COVERS Lightforce warrants that it will, at its option, replace or repair each product that you purchase which, during the warranty period, has a defect in materials or workmanship under normal use and conditions STATUTORY RIGHTS Our products come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage.
- Page 18 Under this warranty and, unless Lightforce otherwise agrees in writing, you bear the cost of claiming under this warranty including the cost of returning the product to Lightforce. Under this warranty, Lightforce is responsible for loss or damage to your product only while it is in the possession of Lightforce Affiliates.
- Page 19 NOTES...
- Page 20 Lightforce Australia Pty Ltd 11 Manton Street, Hindmarsh SA 5007 AUSTRALIA P: +61 8 8440 0888 F: +61 8 8346 0504 www.lightforce.com...
