- Page 1 USER MANUAL MD HD EASY RC 122014 DIGITAL MODULATOR WITH IR ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C 08172 Sant Cugat del Vallés · Barcelona (Spain) Phone: +34935839543 · info@ek.plus · www.ek.plus...
-
Page 2: Table Of Contents
USER MANUAL MD HD EASY RC TABLE OF CONTENTS Introduction: ..............................................3 Description: ............................................3 Key features: ............................................3 Contenido del embalaje: ......................................3 INTERFACES AND CONNECTION: ..................................4 Interfaces: ..............................................4 Installation diagram: ........................................5 Basic programming by buttons: ....................................7 Advanced programming using MD HD Soft .............................. -
Page 3: Introduction
USER MANUAL MD HD EASY RC Introduction: Description: Digital modulator with which you can transfer an FHD signal over a coaxial cable network to your TV receivers with excellent quality. Key features: • Digital COFDM HD modulator-encoder with IR extender. -
Page 4: Interfaces And Connection

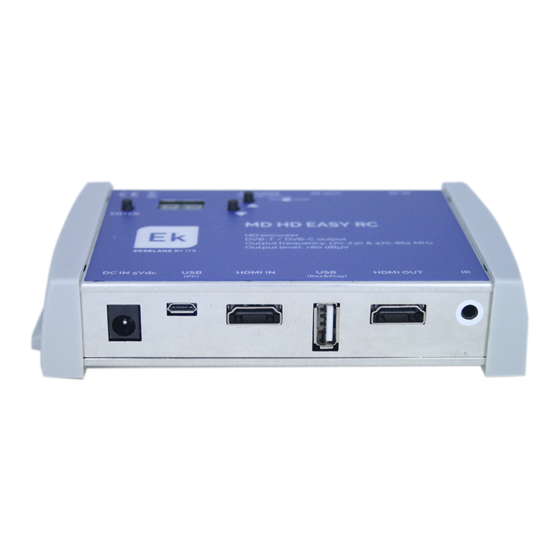

USER MANUAL MD HD EASY RC INTERFACES AND CONNECTION: Interfaces: 1 y 2- Front programming buttons 3.-RF OUT. 4.-RF IN.. 5.-DC IN. 6.-USB B type programming. 7.-HDMI IN. 8.-USB (REC & PLAY). 9.-HDMI OUT (LOOP) 10.-IR transmitter. 1 - 5VDC ON / OFF switch (To RF Out) 2.- Display... -
Page 5: Installation Diagram
USER MANUAL MD HD EASY RC Installation diagram: 1 y 2- They are used to configure. 3.- Connects to the facility (for receivers). 4.-RF signals are input. 5.- The built-in power supply is connected and plugged into the current. 6.-Connects to pc if necessary, to set up with MD HD SOFT app. - Page 6 USER MANUAL MD HD EASY RC To obtain the maximum dynamic range and greater power it is recommended to connect the output of the modulator (OUT) to the TV socket and the TV to the INPUT connector of the modulator ITS Partner O.B.S S.L ·...
-
Page 7: Basic Programming By Buttons
USER MANUAL MD HD EASY RC Basic programming by buttons: Power supply connected HDMI source detected • If a USB memory stick containing a file • Press to change the menu option: named “Video01.ts” is connected” • The file will be played when pressing •... -
Page 8: Advanced Programming Using Md Hd Soft
USER MANUAL MD HD EASY RC Advanced programming using MD HD Soft • For advanced settings, download the SW “MD HD Soft” from the website: www.ek.plus • Connect the modulator to the computer by using a Type A / Type B USB cable. -
Page 9: Usb Memory Use
• .TS files must be stored on a USB 3.0 memory with FAT32 files system. • The "EK Converter" software can be found on the website https://ek.plus/software/. This converts the most common video and image formats to .TS format. •... -
Page 10: Technical Data
USER MANUAL MD HD EASY RC Technical data REFERENCE MD HD EASY RC Code 122014 HDMI INPUT VIDEO 480p/576p/720p/1080p @ Video resolution 25/30/50/60 fps Video compression H.264 Video rate Kbps 500-15000 AUDIO Audio compression MPEG1-L2, AAC-LC Audio rate Kbps 128, 192, 256, 320... -
Page 11: Frequency And Channels Table (Standard B/G)
USER MANUAL MD HD EASY RC Frequency and channels table (Standard B/G) • Band III. 7MHz Bandwith • Band IV - V. 8MHz Bandwith BAND Channel Start Freq. End Freq Central Freq 174 MHz 181 MHz 177,5 MHz 181 MHz... - Page 12 USER MANUAL MD HD EASY RC BAND Channel Start Freq. End Freq Central Freq 606 MHz 614 MHz 610 MHz 614 MHz 622 MHz 618 MHz 622 MHz 630 MHz 626 MHz 630 MHz 638 MHz 634 MHz 638 MHz...
