LBOG-100VAC-95W-1P & LBOG-100VAC-120W-2P
LBOG-100VAC Series PoE++ Optical Backhaul Demarcation Devices
INSTALLATION MANUAL
PRODUCT OVERVIEW
Lindsay's LBOG-100VAC series of devices are outdoor-rated fiber PoE++ products designed for backhaul and networking applications. The single and dual output
devices deliver 55 VDC power to remote IP devices with the security of 6 kV surge protection and support 10/100/1000 Mbps data speed. The LBOG-100VAC series
support IEEE 802.3af/at/bt applications. The effective distance is 100 meters over Cat5e/Cat6e cables. The IP66 housing does not need to be opened and provides a
quick, seamless installation.

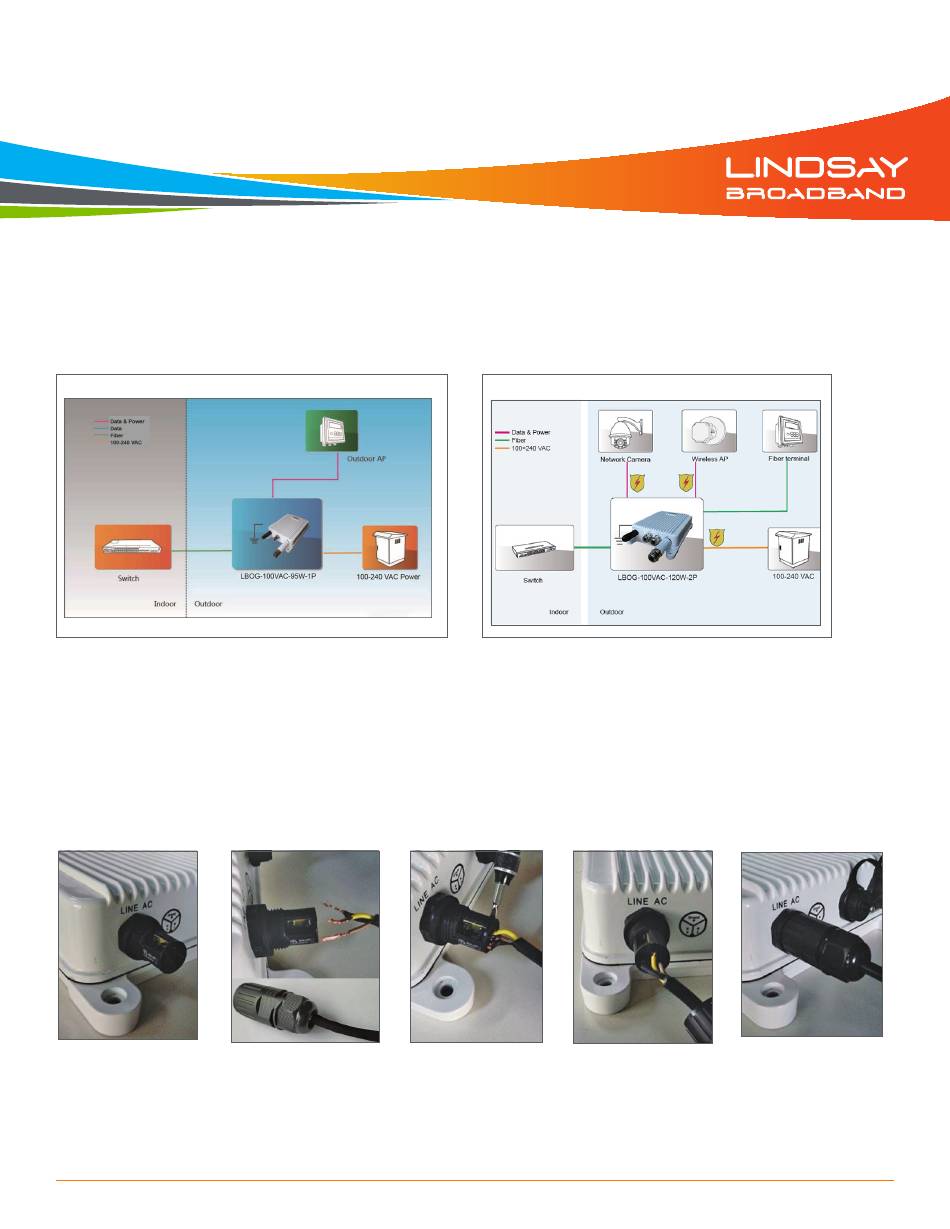

APPLICATION DIAGRAMS
LBOG-100VAC-95W-1P
WIRE CONNECTION
The power cable diameter is 4-8.2 mm. See photos under the text instructions below.
1.
The AC input port is a screw terminal connector. Near the AC input port there is an indicator showing the pin definition. The 3 pins are labelled: Ground, N
(neutral), and L (line).
2.
Add the cable gland to the cable but do not tighten. Strip 1.0" (2.5 cm) of the cable jacket and 0.4" (1 cm) of each wire jacket.
3.
Insert wires into the correct pin ports and use a straight/slotted screwdriver to fix the wires to each pin.
4.
Slide the cable gland over the AC input port pins and hand tighten to the housing. Hand tighten the cable gland nut to the cable.
5.
Wiring completed.
1
2
LBOG-100VAC-120W-2P
3
4
5
Page 1 of 6
Advertisement
Related Manuals for Lindsay Broadband LBOG-100VAC Series
Summary of Contents for Lindsay Broadband LBOG-100VAC Series
- Page 1 Lindsay’s LBOG-100VAC series of devices are outdoor-rated fiber PoE++ products designed for backhaul and networking applications. The single and dual output devices deliver 55 VDC power to remote IP devices with the security of 6 kV surge protection and support 10/100/1000 Mbps data speed. The LBOG-100VAC series support IEEE 802.3af/at/bt applications.
- Page 2 Place the components for the SFP fiber slot metal gland and cap in the order as shown in the photos, then string the fiber cable through. Add the SFP transceiver and plug it into the SFP slot (SFP transceiver not included but available from Lindsay Broadband). Tighten to the product SFP port.
-
Page 3: Mounting Instructions
LBOG-100VAC Series PoE++ Optical Backhaul Demarcation Devices INSTALLATION MANUAL MOUNTING INSTRUCTIONS Pole mounting with a diameter range of 3-4" (7.6-10.2 cm). See drawings under the text instructions below. Use 4 M5x25 screws and M5 nuts to mount the two large brackets to the back of the product. - Page 4 LBOG-100VAC Series PoE++ Optical Backhaul Demarcation Devices INSTALLATION MANUAL MOUNTING INSTRUCTIONS CONT'D. Mounting to a wall. Based on the dimensions of the product's installation holes, make four holes in the wall. Use screws to mount the product to the wall. The AC input port and RJ45 port should face down.
- Page 5 LBOG-100VAC Series PoE++ Optical Backhaul Demarcation Devices INSTALLATION MANUAL MOUNTING INSTRUCTIONS Mounting to a wall. Based on the dimensions of the product's installation holes, make four holes in the wall. Use screws to mount the product to the wall. The AC input port and RJ45 port should face down.
- Page 6 All information is subject to change without notice. © 2020 Lindsay Broadband Inc. All rights reserved. Printed in Canada. Non-Lindsay Broadband product marks, service marks, and company names in this document are the property of their respective owners. Rev. 03/20 (LBB0215) •...
