Summary of Contents for Sinfoni AMPLItude 45.2 x

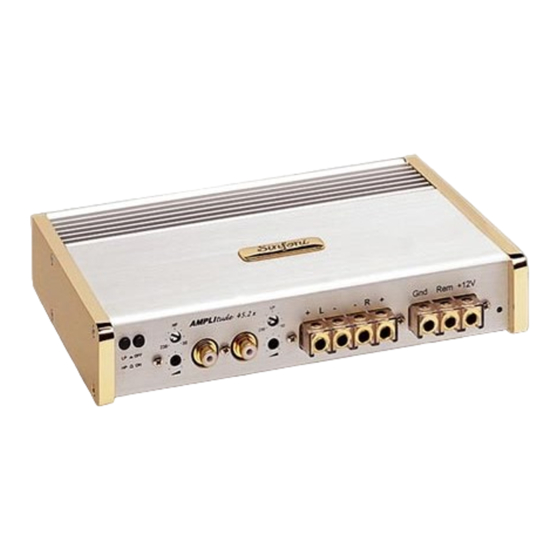

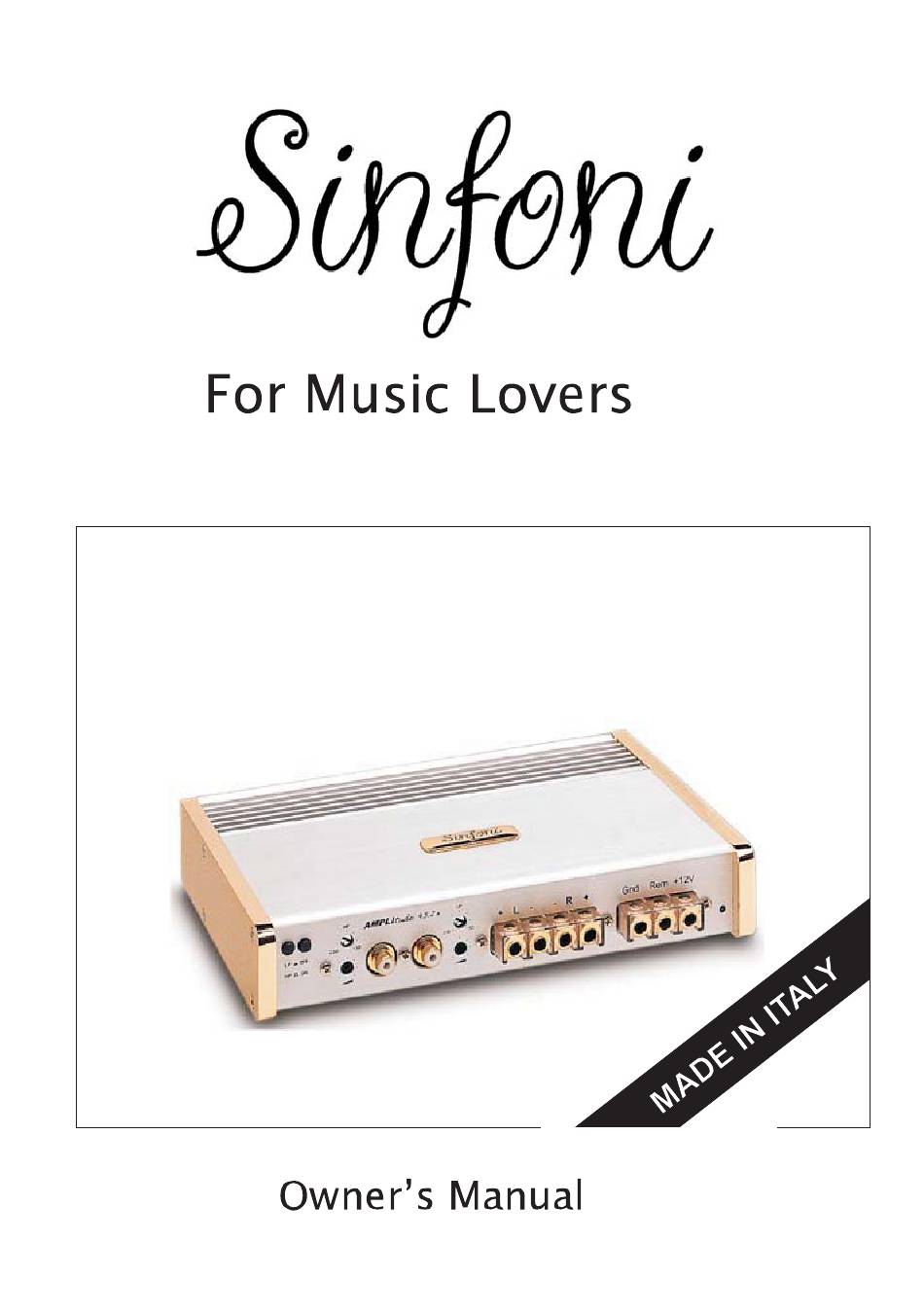

- Page 1 AMPLI tude 45.2...
- Page 2 Sinfoni purchaser, you already know. Try to describe it with cold technical parameters, if you can! In order to get the utmost from our products, we recommend you...
- Page 3 Installation Procedure POWER SUPPLY The Sinfoni car amplifiers are designed to work with a 12 volts DC power supply, however they allow +/- 3 V voltage excursions. Power Supply cables must be of a suitable gauge, keeping in mind that the negative one must be connected to the ground in the nearest point of the car chassis, while the positive one must come directly from the battery.
- Page 4 CONNECTING LOUDSPEAKERS The standard load impedance fitting to the amplitude series is 4 Ohm, but these amplifiers are fearless of a lower impedance like the one that can be easily found in a car ( three way systems or highly reactive loudspeakers ). Connecting a 2 Ohm load is not a problem, in fact, as it is possible to use a simultaneous stereo-mono configuration, then it is still possible to connect a 4 Ohm Sub Woofer to a 4 Ohm...
- Page 5 MONO Connection LowPass Simultaneous STEREO-MONO Connection...
- Page 6 INPUTS The input load is 48 Kohms, and its sensitivity is adjustable from 400 mV peak - peak (150 mV RMS) to 8 V peak - peak (2.8 V RMS), therefore it perfectly matches any source, including those that provide a 4 V pre out (1.4 V RMS). The regulation is achieved rotating the input R &...
- Page 7 Dimensions 226mm x 187mm x 40mm Weight 2,7 Kg Built in Active Cross-Over Continuously adjustable from 30Hz to 250Hz Adaptable as low-pass / high-pass 24dB / 12dB x octave mono / stereo Produced by: Audio Technology Tel.+39.0733.240231 e-mail info@sinfoni.com www.sinfoni.com...
