Summary of Contents for Sinfoni Premier One

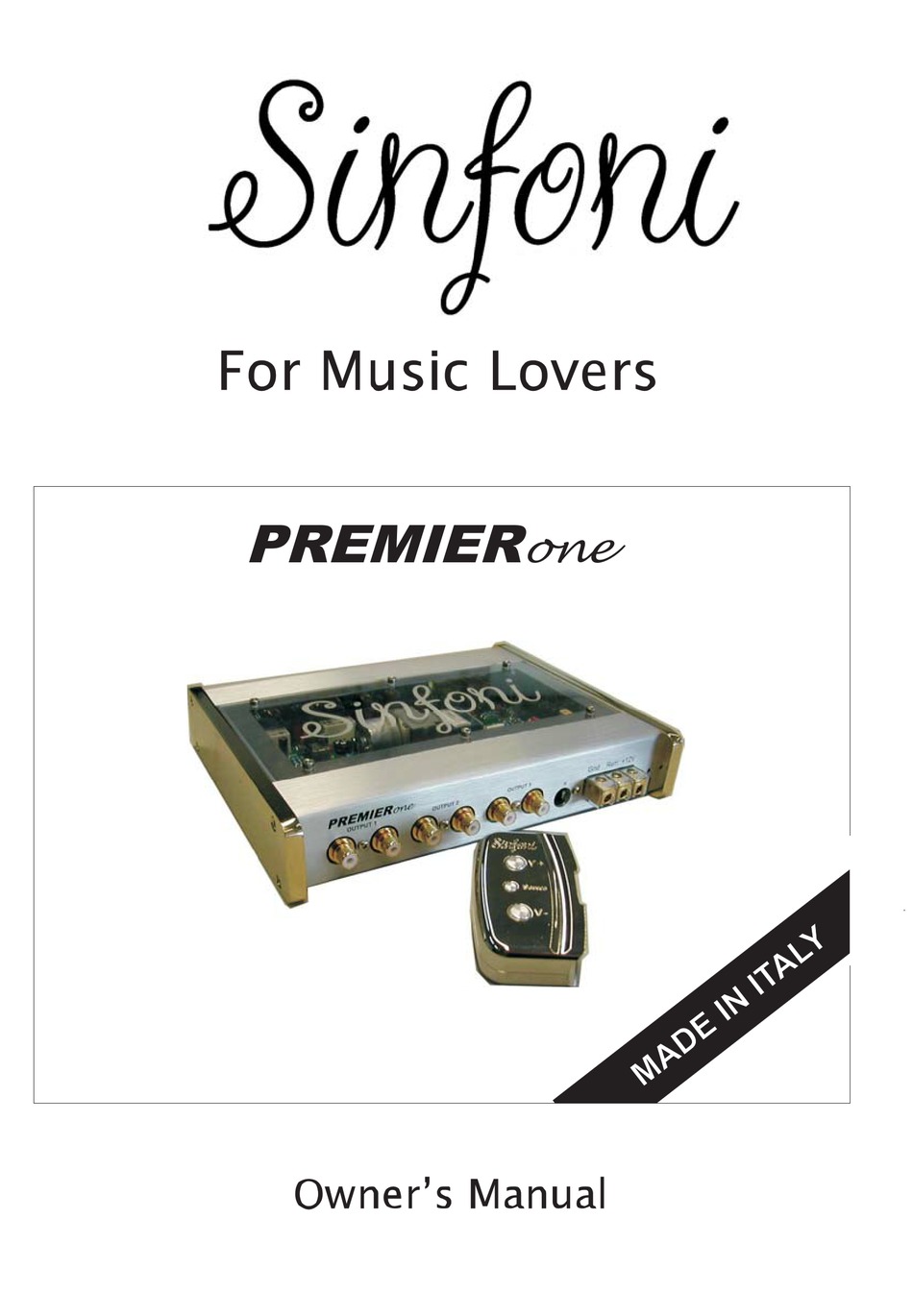

  • Page 1 PREMIER...
  • Page 2 CONTENTS PREMIERone Sinfoni control unit Infrared Remote Control Wheel mounting kit for remote control 4 m cable for infrared receiver 3V battery for remote control Biadhesive strip...
  • Page 3 Only after a suitable "tasting" you will realise the striking sound properties of our products, and you will appreciate their transparency, their musicality, their depth and all other aspects that probably, as a Sinfoni purchaser, you already know. Try to describe it with unpersonal technical parameters, if you can!
  • Page 4: Installation Procedure

    Installation Procedure POWER SUPPLY The Sinfoni preamplifiers is designed to work with a 12 volts DC power supply, however they allow +/- 3 V voltage excursions. Power Supply cables must be of a suitable gauge, keeping in mind that the negative one must be connected to the ground in the nearest point of the car chassis, while the positive one must come directly from the battery.
  • Page 5 PREMIERone Ouput 1 Ouput 2 Ouput 3 Remote control Receiver connection Radio car connection...
  • Page 6 INPUTS The three inputs load is 48 Kohms, and their sensitivity is adjustable from 100 to 4 Vrms, therefore they perfectly match any source, including those provided with the latest car radio. The regulation is achieved rotating the input potentiometers, near to each input, with a common screwdriver.
  • Page 7: Remote Control

    REMOTE CONTROL The first thing to do is to insert the battery in the remote control: -Remove the screw on the bottom of the remote control and separate the two sides - Insert the battery in its place - Close the remote control The two metallic brackets supplied with the package are needed to clamp the remote control to the steering wheel : - Screw the...
  • Page 8: Specifications

    100 to 4 Vrms 1 Low Impedance from 100 to 12 Vrms Outputs 5 Vrms/500 Ohm Dimensions 225mm x 190mm x 40mm Weight 2,2 Kg Infrared remote control with volume regulation and source selection. Produced by: Audio Technology Tel.+39.0733.240231 e-mail info@sinfoni.com www.sinfoni.com...
