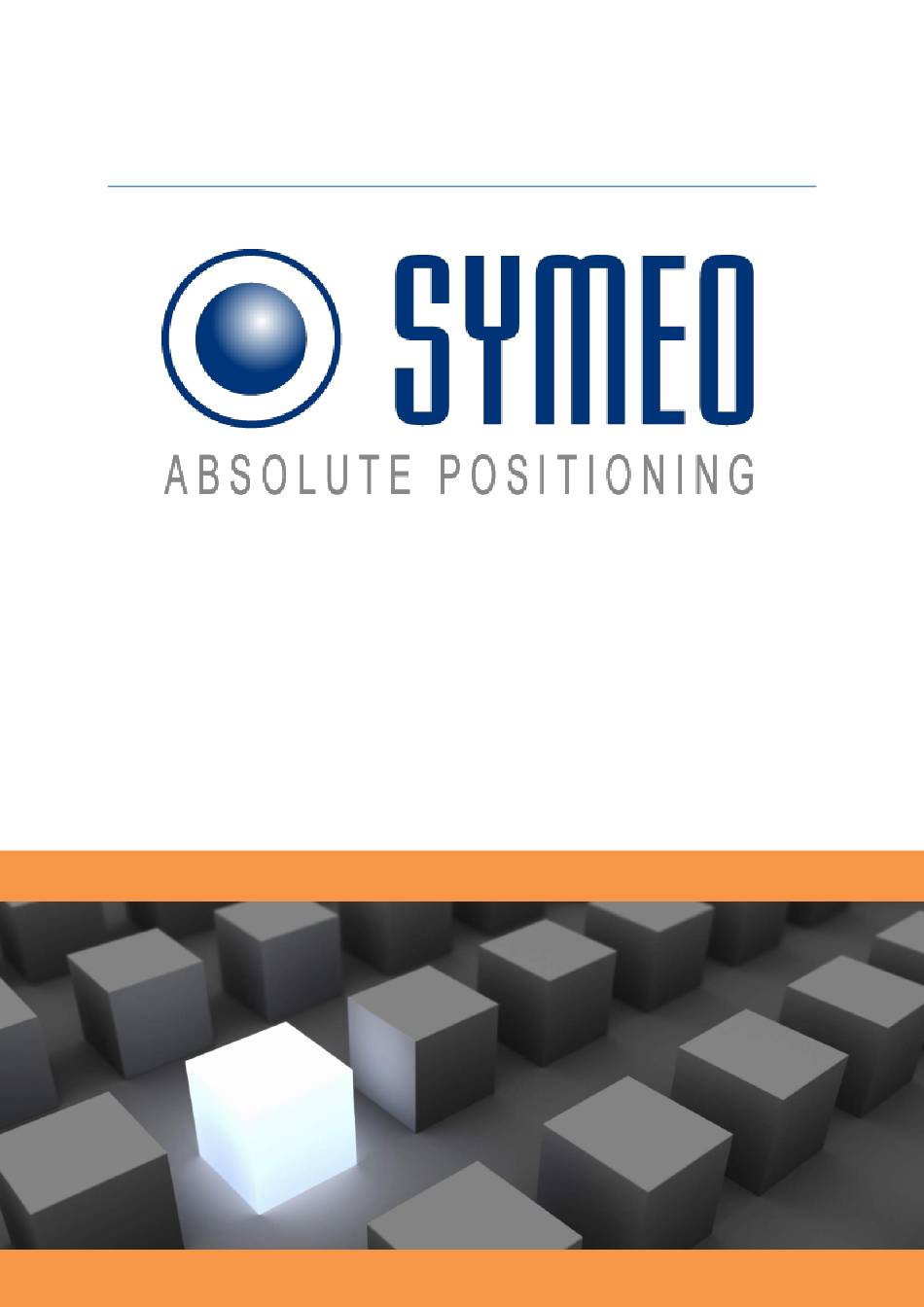

- Page 1 SYMEO L OCAL OSITIONING ADAR ® Product: LPR -1D24 (Symeo BSV101757) Product Documentation Table of Content Copyright © SYMEO GmbH 2009 Date: August 2009 LPR-1D24_Users_Manual_FCC-IC-Edition_EN.docx Page 1 of 34...
-
Page 2: Table Of Contents
SYMEO Local Positioning Radar System LPR®-1D24 LPR®-1D24 Station – Overview and Mounting Content GENERAL INFORMATION ..................6 Safety Instructions ....................6 Mounting ........................6 Repairs........................6 Transport and Storage ....................6 Power Supply ......................6 Setup and Operation ....................7 System Extensions and Accessories .............. - Page 3 SYMEO Local Positioning Radar System LPR®-1D24 LPR®-1D24 Station – Overview and Mounting ® -1D24 HOUSING DIMENSIONS ..............17 ® WEB USER INTERFACE FOR LPR -1D24 .............. 18 Requirements ......................18 ® 7.1.1 Connection to LPR -1D24 Unit ................. 18 Open User Interface ....................20 Device ........................
- Page 4 SYMEO Local Positioning Radar System LPR®-1D24 LPR®-1D24 Station – Overview and Mounting Table of Figures ® Figure 1: LPR -1D24 measurement path ................8 ® Figure 2: LPR -1D24 unit inclusive mounting bracket ............10 Figure 3: Mounting of the fall protection ................11 ®...
- Page 5 SYMEO Local Positioning Radar System LPR®-1D24 LPR®-1D24 Station – Overview and Mounting ® The documentation for the LPR -1D24 Local Positioning Radar System is published by: SYMEO GmbH Prof.-Messerschmitt-Str. 3 D-85579 Neubiberg www.symeo.de If you have any questions or suggestions, please contact: Email: info@symeo.com...
-
Page 6: General Information
All mounting, installation and maintenance work must be carried out by an electrically qualified or trained person! Repairs Repairs on the devices should only be performed by Symeo GmbH. Transport and Storage Use the original packaging or other suitable packaging for returns and whenever the system is to be transported. -
Page 7: Setup And Operation
SYMEO Local Positioning Radar System LPR®-1D24 LPR®-1D24 Station – Overview and Mounting Setup and Operation During mounting, make sure that no objects or liquids reach inside the device (risk of short-circuit). In case of emergency (e.g. damaged housing, control elements or power... -
Page 8: Overview Of Lpr -1D24 Unit

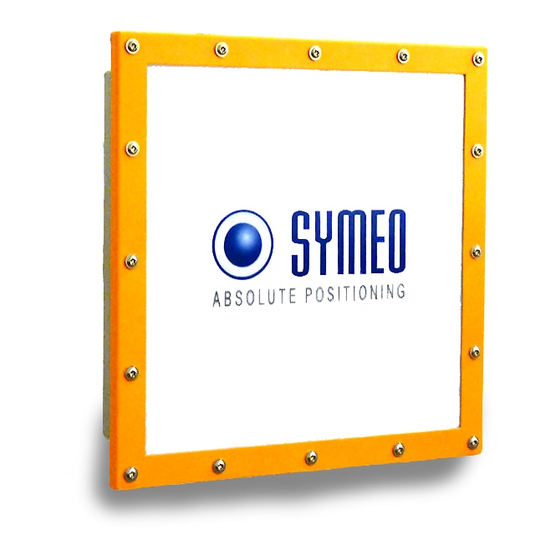

SYMEO Local Positioning Radar System LPR®-1D24 LPR®-1D24 Station – Overview and Mounting ® Overview of LPR -1D24 Unit ® -1D24 is a highly precise radio sensor for distance measurement. Two paired units allow for long range applications and enable additional data transfer at the same time. The exact position of a moving machine component, e.g. -
Page 9: Technical Data Lpr ® -1D24 Unit
SYMEO Local Positioning Radar System LPR®-1D24 LPR®-1D24 Station – Overview and Mounting ® Technical Data LPR -1D24 Unit ® The technical specifications for LPR -1D24 can be found in our data-sheet under the following link: http://www.symeo.com/cms/upload/pdf/en/DataSheets/Symeo_Datasheet_LPR-1D24.pdf Overview of LPR®-1D24 Unit Copyright ©... -
Page 10: Mounting And Alignment Of Lpr -1D24 Units
-1D24 unit to a suitable pipe with the bracket. To adjust the system, do not tighten the mounting bracket finally. Specified alignments have to be adhered to if indicated by Symeo. A minimum distance of 3 meters between the measuring system units must be maintained to guarantee the specified accuracy. -
Page 11: Mounting Of The Fall Protection
Mounting of the Fall Protection ® The LPR -1D24 units must be protected against fall. For every unit Symeo provides a protection set consisting of the following components: A: 2 x ring nuts M5, B: 2 x snap hooks 5 x 50 mm C: 1 x steel cable 3 mm x 1 m ®... -
Page 12: Requirements For Power Supply
SYMEO Local Positioning Radar System LPR®-1D24 LPR®-1D24 Station – Overview and Mounting Requirements for Power Supply The power supply should have the following characteristics: Potential free Output power at least 25 W Output voltage 10 V DC to 36 V DC ... -
Page 13: Specification Of The Connectors
B9 – B11: Status LEDs On the following pages you will find the connector type, the pin assignment, the product code and the Symeo order number. For more information, please see the data sheets on the attached data carrier. Specification of the Connectors Copyright ©... -
Page 14: Power Supply
SYMEO Local Positioning Radar System LPR®-1D24 LPR®-1D24 Station – Overview and Mounting Power Supply ® The LPR -1D24 unit is powered by a 4-pin M12-Connector to the operating voltage (Figure 4 – Connection B6). 5.2.1 Plugs Recommended connector: o SACC-M12FST-4PECON-PG 9-M – 1418052... -
Page 15: Plugs
SYMEO Local Positioning Radar System LPR®-1D24 LPR®-1D24 Station – Overview and Mounting 5.3.1 Plugs Recommended connector: Connector Ethernet M12 o SACC-M12MSD-4CON-PG 7-SH – 1521258 Cable diameter: 4 – 6 mm (PG7) Symeo order number: MTE101768 Figure 6: M12 Ethernet M12 5.3.2... -
Page 16: Plugs
SYMEO Local Positioning Radar System LPR®-1D24 LPR®-1D24 Station – Overview and Mounting 5.4.1 Plugs Recommended connector: Connector: SCPU-10-G-02.00-MBS-AM from Samtec USB mini-B-plug Pin assignment according to USB-Standard If the USB-port at the device is not used, it must be closed with the end cap to prevent leakage. -
Page 17: Lpr®-1D24 Housing Dimensions
SYMEO Local Positioning Radar System LPR®-1D24 LPR®-1D24 Station – Overview and Mounting ® -1D24 Housing Dimensions ® Figure 7: LPR -1D24 Housing Dimensions The minimum pipe diameter is 40 mm, the maximum pipe diameter is 75 mm. LPR®-1D24 Housing Dimensions Copyright ©... -
Page 18: Web User Interface For Lpr
For the Ethernet-connection the connector cable M12 – RJ45 is required ® for configuration of the LPR -1D24 units with M12 plug and RJ 45 connector. This connector cable can be ordered by Symeo (see 5.3.3). Requirements ® In order for a unit to be successfully commissioned, the LPR... -
Page 19: Figure 8: Network Settings
SYMEO Local Positioning Radar System LPR®-1D24 LPR®-1D24 Station – Overview and Mounting Enter the following fixed IP-address i.e. 192.168.1.1. The subnet mask should be set to 255.255.255.0. Click in both windows OK. Figure 8: Network Settings If the firewall settings are too restrictive, you may not get access to the ®... -
Page 20: Open User Interface
SYMEO Local Positioning Radar System LPR®-1D24 LPR®-1D24 Station – Overview and Mounting Open User Interface ® At delivery, the IP-address of the LPR -1D24 unit is 192.168.1.99, unless another IP-address is labeled outside the box. Open your web browser. In the address bar of the web browser enter the IP-address of ®... -
Page 21: Figure 11: Sign In On The Home Page Of The Lpr
Figure 11: Sign in on the home page of the LPR -1D24 unit You can always come back to this page if you press on the Symeo symbol or the Symeo character in the top left hand corner of this page. -
Page 22: Device
The device status shows you the status of the services and interfaces. The service status “Measurement Filter” and “Measurement Daemon” and also the interface status “Binary protocol” must be green, otherwise please contact Symeo customer support. It takes some seconds after switching on or after a reboot before the color changes to green. -
Page 23: Device - Device Configuration
SYMEO Local Positioning Radar System LPR®-1D24 LPR®-1D24 Station – Overview and Mounting Device - Device Configuration With this function (see picture below) you can chose either to: define the LAN settings define Modem settings define the Profibus settings ... -
Page 24: Device - Device Configuration - Lan
SYMEO Local Positioning Radar System LPR®-1D24 LPR®-1D24 Station – Overview and Mounting Device - Device Configuration – LAN 7.4.1 With this function (see picture below) you can: chose the Link type define the Address Mode change the IP-Address ... -
Page 25: Figure 16 - Device: Device Configuration Lan Settings - Commit The Change
SYMEO Local Positioning Radar System LPR®-1D24 LPR®-1D24 Station – Overview and Mounting Following message appears in the upper left corner “Saved successfully” (see picture below). Furthermore it will be shown in green, what has been saved (in the picture below the hostname). -
Page 26: 7.4.2 Device - Device Configuration - System Time
SYMEO Local Positioning Radar System LPR®-1D24 LPR®-1D24 Station – Overview and Mounting 7.4.2 Device - Device Configuration – System Time With this function (see picture below) you chose to set the time zone must be set to custom timezone if needed timezone is not in the dropdown menu ... -
Page 27: 7.5.1 Device - Application Settings - Customer Protocol
SYMEO Local Positioning Radar System LPR®-1D24 LPR®-1D24 Station – Overview and Mounting Figure 19 – Device: Application Settings 7.5.1 Device - Application Settings – Customer Protocol With this function (see picture below) you chose to: set the Protocol frame length ... -
Page 28: Figure 21 - Device: Application Settings - General Settings
SYMEO Local Positioning Radar System LPR®-1D24 LPR®-1D24 Station – Overview and Mounting Measurement mode ® ® Measuring mode for the LPR -1D24 unit. Any measuring pair of LPR -1D24 units has to consist of one Master and one Slave Unit. -
Page 29: Figure 22: Example Configuration Of One Measurement Pair Master And Slave Unit
SYMEO Local Positioning Radar System LPR®-1D24 LPR®-1D24 Station – Overview and Mounting Figure 22: Example configuration of one measurement pair Master and Slave Unit Configuration rules: Don’t use a group ID more than once per site. ® If pairs of LPR -units are mounted close to each other, the FSK channels should be at least two channels apart from each other. -
Page 30: Diagnostics
SYMEO Local Positioning Radar System LPR®-1D24 LPR®-1D24 Station – Overview and Mounting Diagnostics With this function (see picture below) you chose to: Operating System Status Hardware Status Record measurement data Distance over time diagram Signal strength over distance diagram Figure 23 –... -
Page 31: Diagnostics - Operating System Status
Diagnostics - Operating System Status With this function (see picture below) the operating system status can be seen. In case of problems, these information may be asked by Symeo support. Figure 24 – Diagnostics: Operating System Status Web User Interface for LPR®-1D24 Copyright ©... -
Page 32: Diagnostics - Hardware Status
Diagnostics - Hardware Status With this function (see picture below) system values and system voltages are displayed. In case of problems, these information may be asked by Symeo support. Figure 25 – Diagnostics: Hardware Status This display is automatically refreshed every 5 seconds. -
Page 33: Diagnostics - Distance Over Time
SYMEO Local Positioning Radar System LPR®-1D24 LPR®-1D24 Station – Overview and Mounting 7.6.3 Diagnostics - Distance over Time With this function (see picture below) the current distance and the current RSSI value (Signal strength) will be displayed. Furthermore the distance over time graph. -
Page 34: Diagnostics - Signal Strength Over Distance Diagram
SYMEO Local Positioning Radar System LPR®-1D24 LPR®-1D24 Station – Overview and Mounting 7.6.4 Diagnostics - Signal Strength over Distance Diagram Figure 27 – Diagnostics: Signal strength over distance diagram This diagram shows the recorded distance-signal strength pairs since the last power-on. You can use it to detect abnormal signal propagation routes at certain constellations of the two ®...
