Vimar 03981 Manual

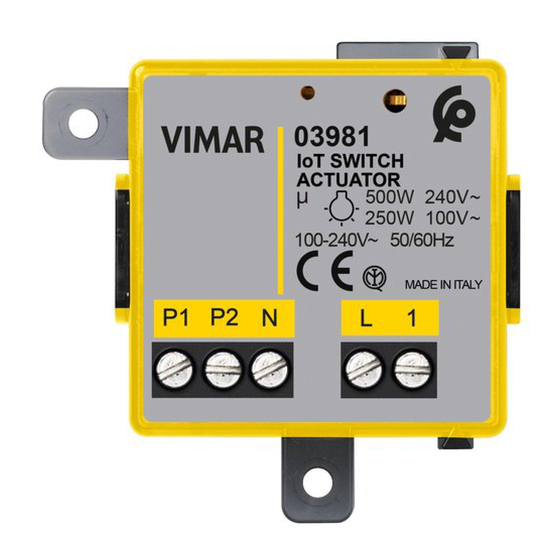

03981
IoT electronic control device with NO relay output 100-240 V 50/60 Hz
for 500 W incandescent lamps, 100W LED lamps, 250 VA electronic
transformers, 120 W fluorescent lamps, local control via push buttons
connected to the inputs or remote control, 1 input for wired control to
recall a scenario, double IoT technology on Bluetooth 5.0 standard for
the creation of VIEW Wireless mesh system and on Zigbee 3.0 standard,
100-240 V 50/60 Hz power supply, flush-mounting (retrofit).
The retrofit device with relay output is designed to operate a load via wireless connec-
tion and from a traditional remote push button. The device has the possibility of being
controlled with two different radio standards (exclusive to one another): Bluetooth mesh
(default) or Zigbee (which can be set via the VIEW Wireless App). The Bluetooth mesh
network implies the presence of gateway 20597-19597-16497-14597 while for the
dialogue via Zigbee a Zigbee coordinator is required (such as Amazon Echo Plus, Echo
Show or Echo Studio). The device is equipped with:
- 1 relay output to control the loads indicated in the CONTROLLABLE LOADS section;
- 1 input to control the device;
- 1 input to recall a scenario in Bluetooth mode (in Zigbee mode both inputs control
the device).
Switching on zero crossing.
FEATURES.
• Rated supply voltage: 100-240 V~, 50/60 Hz.
• Dissipated power: 0.55 W
• RF transmission power: < 100mW (20dBm)
• Frequency range: 2400-2483.5 MHz
• Terminals:
- 2 terminals (L and N) for line and neutral;
- 1 terminal (P1) to control the device;
- 1 terminal (P2) to recall a scenario (in Bluetooth technology) and to control the device
(in Zigbee technology);
- 1 terminal (1) for connection to the load.
For inputs P1 and P2 use push buttons art. 20008-19008-16080-14008.
• The push button connected to P1 is used both to control the load and as a configu-
ration push button.
• RGB LED that indicates the configuration status (flashing blue).
• In Bluetooth technology mode, you can associate up to 2 EnOcean devices (art.
03925) which make it possible to control the actuator or activate a scenario.
• Operating temperature: -10 ÷ +40 °C (indoor)
• Protection degree: IP20
• Configuration from VIEW Wireless App for Bluetooth technology system and Amazon
App for Zigbee technology.
• Controllable via VIEW App (for Bluetooth technology) and Amazon Alexa (for Zigbee
technology).
CONTROLLABLE LOADS.
Loads
- maximum
100 V~ 250 W
240 V~ 500 W
OPERATION IN Bluetooth technology MODE.
The device operates by default in Bluetooth technology mode and this standard makes
it possible to:
- recall a scenario using the traditional push button connected to input P2.
- associate the radio control 03925 which can be configured to control the actuator
on-board or to recall a scenario.
Through the use of gateway 20597-19597-16497-14597 the functions can be managed
locally or remotely via the VIEW App, and the control is also available via the voice
assistants Alexa, Google Assistant and Siri. The device is also compatible with Homekit.
Settings.
The VIEW Wireless App can be used to set the following parameters:
- Load status when the voltage is restored: off, on or previous status (default: previous
status).
- Relay operation: two-position stable or one-position stable (default: two-position
stable).
- One-position stable activation time (minimum activation time 1 s; default: 60 s).
- Activation delay in a scenario.
03981 01 2007
50 W 60 W 125 VA
100 W 120 W 250 VA
Reset procedure
To perform the reset and return the device to its factory settings, during the first 5 min-
utes that the device is powered, press the push button connected to input P1 for 30 s
until the white LED flashes.
CONFIGURATION.
For configuration operations on the system in Bluetooth technology mode please
see the instruction manual for the VIEW Wireless App.
OPERATION IN Zigbee technology MODE.
For operation in Zigbee technology mode, the device should be associated with the
Amazon voice assistant which supports this standard, for instance Amazon Echo Plus,
Echo Show or Echo Studio, and the following parameters can then be set on the push
button connected to P1:
- Relay operation: two-position stable or one-position stable (default: two-position
stable).
- One-position stable activation time.
For the device to be associated with Amazon Echo Plus, Echo Show or Echo Studio, it
needs to be converted from Bluetooth to Zigbee using the VIEW Wireless App, then set
it to pairing mode and subsequently follow the procedure provided by the voice assistant.
The Amazon Alexa App will signal this procedure is complete accompanied by three
green flashes of the device LED.
Pairing mode activation.
• Immediately after conversion to Zigbee technology (or the software update), the device
will automatically go into pairing mode so that it can be recognised by the Amazon
device within 5 minutes.
• If the device is not in pairing mode, you can start this setting by cutting off the power
supply to the device and restoring it after a few seconds.
• Pairing mode lasts 5 minutes, after which it is automatically disabled.
Manual sequence for parameter setting.
1) During the first 5 minutes after the device has been powered (already associated with
Alexa), press the push button connected to P1 for 15 s; this way, you will enter the relay
operation selection phase - between one-position stable and two-position stable (the
LED flashes green for the two-position stable setting and amber for the one-position
stable setting).
2) Briefly press the push button connected to P1 to switch from two-position stable to
one-position stable and vice versa; once the choice has been made, press the push
button connected to P1 for 5 s to confirm. If the two-position stable setting has been
set, the procedure is complete and the LED will confirm this with three green flashes,
whereas if the one-position stable setting has been set, you will move on to the next
step (3).
3) In the event of the one-position stable setting (i.e. with the LED flashing amber), press
the push button connected to P1 for 5 s to enter the one-position stable activation time
selection phase. Press the push button connected to P1 briefly, the output is activated
and the LED lights up amber permanently; at the end of the time you wish to set, press
the front push button again, the output is deactivated and the LED flashes amber for
3 times to confirm the setting made.
INSTALLATION RULES.
• Installation and configuration must be carried out by qualified persons in compliance
with the current regulations regarding the installation of electrical equipment in the
country where the products are installed.
• The relay output power circuit must be protected against overloads by installing a
device, fuse or automatic 1-way switch, with a rated current not exceeding 10 A.
• Installation must be carried out with the system switched off.
REGULATORY COMPLIANCE.
RED Directive. RoHS directive.
Standards EN 60669-2-1, EN 301 489-17, EN 300 328, EN 62479, EN 50581.
Vimar SpA declares that the radio equipment complies with Directive 2014/53/EU. The
full text of the EU declaration of conformity is on the product sheet available on the
following website: www.vimar.com
REACH (EU) Regulation no. 1907/2006 – Art.33. The product may contain traces of lead.
WEEE - User information
The crossed bin symbol on the appliance or on its packaging indicates that the product at the end of its life must
be collected separately from other waste. The user must therefore hand the equipment at the end of its life cycle
over to the appropriate municipal centres for the differentiated collection of electrical and electronic waste. As an
alternative to independent management, you can deliver the equipment you want to dispose of free of charge to
the distributor when purchasing a new appliance of an equivalent type. You can also deliver electronic products to
be disposed of that are smaller than 25 cm for free, with no obligation to purchase, to electronics distributors with
a sales area of at least 400 m . Proper sorted waste collection for subsequent recycling, processing and environ-
2
mentally conscious disposal of the old equipment helps to prevent any possible negative impact on the environ-
ment and human health while promoting the practice of reusing and/or recycling materials used in manufacture.
Viale Vicenza 14
36063 Marostica VI - Italy
www.vimar.com
