THY-464-1
NISSAN V6
86-89 HARD BODY,
PATHFINDER PICKUPS

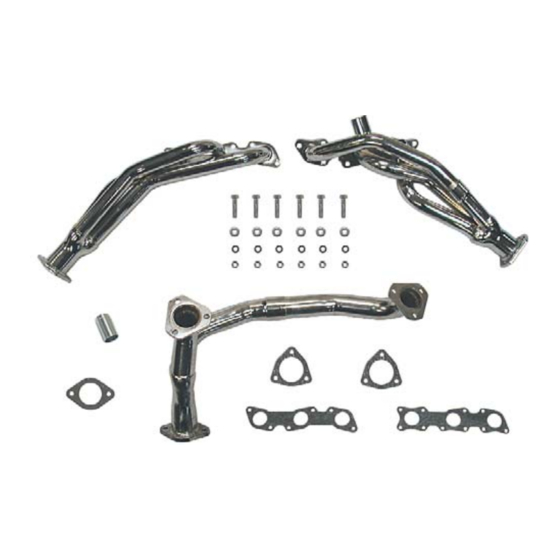

PARTS INCLUDED
1 - Right side header
1 - Left side header
1 - Y-pipe assembly
1 - Hot air pickup
2 - Header gaskets
2 - Collector gaskets
1 - Catalytic converter gasket
HARDWARE INCLUDED
6 - 3/8"-16 x 1-1/4" Hex head bolts
6 - 3/8"-16 Hex nuts
6 - 3/8" Star lock washers
6 - 3/8" Flat washers
1) The utmost care is taken at Thorley Headers to maintain the highest standards of quality.
However, Thorley Headers cannot control the installation of the product. For this reason, the
Thorley Headers warranty covers only the replacement of the components - not the labor for
the installation.
2) The use of any type of "header wrapping" voids the warranty. Using any sort of wrapping
material on the headers destroys the tubing's ability to dissipate heat, causing very rapid
deterioration of the metal and the subsequent failure of the headers.
3) The chrome plating applied to all Thorley headers is a high-nickel chrome finish applied to
retard corrosion. This is a "heat" chrome to preserve the metal. This finish is not "show
chrome" intended for the sake of appearance. This high-nickel chrome turns colors and
approaches black as it cooks into the metal. The brilliance of the chrome finish is not cov-
ered under the warranty. Contamination of the surface by foreign substances may produce
other color patterns. This can be prevented by routine cleaning.
I N D U S T R I E S
TOOLS REQUIRED
Heating torch
Mig welder
Cut-off saw
Sawzall
3/8", 7/16", 9/16", 1/2", 3/4", 7/8" Wrenches
10mm, 13mm Wrenches
9/16" Line (flare nut) wrench
5/16", 7/16", 1/2", 9/16" Sockets
3/8", 7/16" Deep sockets
15mm Deep socket
5/8" Spark plug socket
Ratchet and extensions
Pliers
Crescent wrench
Torque wrench
Rust penetrant
High-temp sensor-safe silicon sealer (rated at 600 degrees+)
