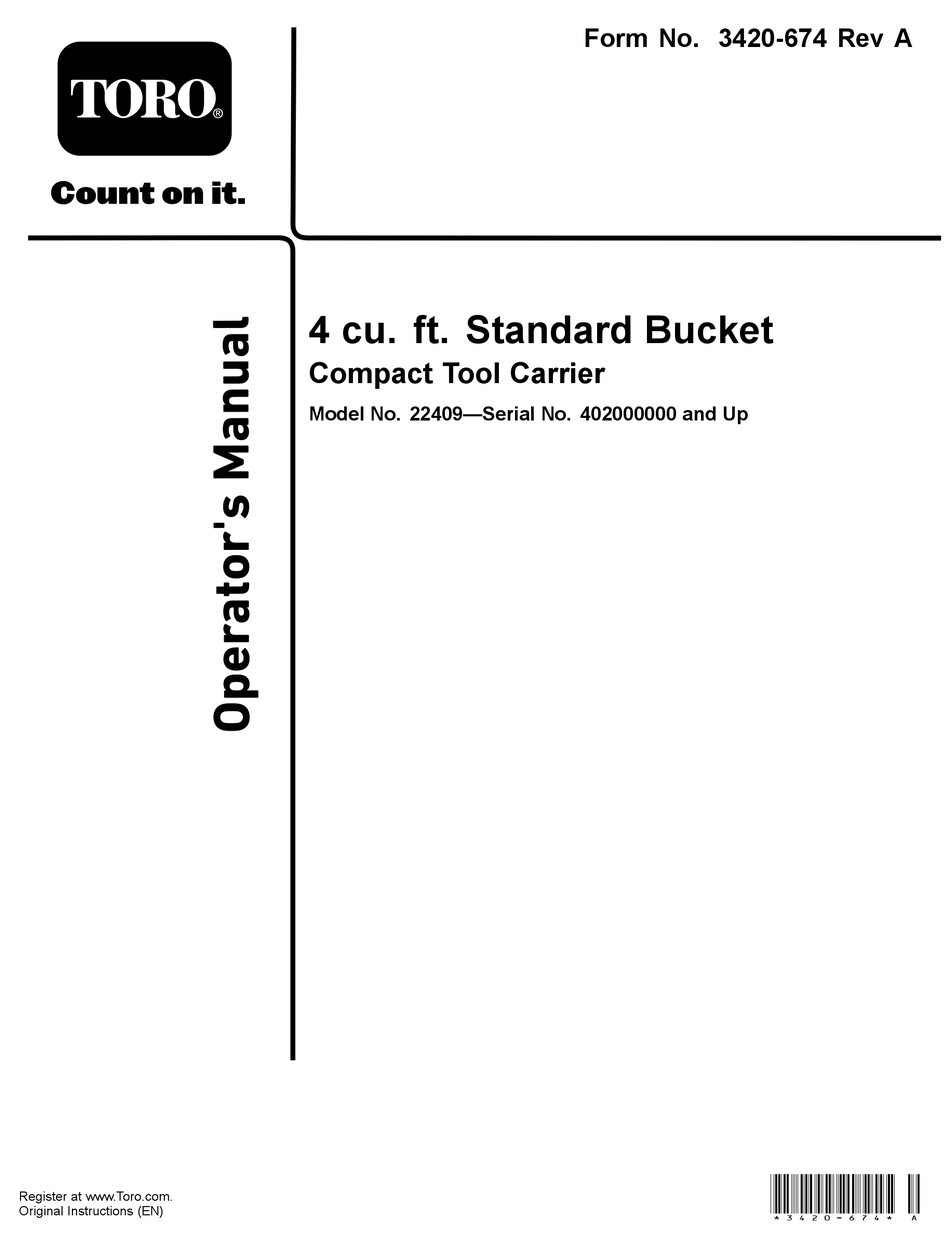

Form No. 3420-674 Rev A 4 cu. ft. Standard Bucket Compact Tool Carrier Model No. 22409—Serial No. 402000000 and Up *3420-674* A Register at www.Toro.com. Original Instructions (EN)
Whenever you need service, genuine Toro parts, or Attachment Safety ..........4 additional information, contact an Authorized Service Maintenance and Storage Safety......4 Dealer or Toro Customer Service and have the model Safety and Instructional Decals ......4 and serial numbers of your product ready. Figure 1 Operation ..............
Slope Safety Safety • Operate the machine up and down slopes with the heavy end of the machine uphill. Weight DANGER distribution changes with attachments. An empty There may be buried utility lines in the work attachment makes the rear of the machine the heavy end, and a full attachment makes the area.
Attachment Safety Operation • Wear gloves, eye protection, long pants, substantial slip-resistant footwear, and hearing Note: Always use the traction unit to lift and move protection during operation or while adjusting or the attachment. repairing the machine. Important: Before installing the bucket, ensure •...
With gravel, wet 1540 kg/m (96 lb/ft Coal: To ensure optimum performance and continued safety Anthracite, broken certification of the machine, use only genuine Toro 1100 kg/m (69 lb/ft replacement parts and accessories. Replacement Bituminous, broken 830 kg/m (52 lb/ft...
Storage Before long-term storage, wash the attachment with mild detergent and water to remove dirt and grime. Paint all scratched or bare metal surfaces. Note: Paint is available from your Authorized Service Dealer. Store the attachment in a clean, dry garage or storage area.
