Summary of Contents for iTOOLco CANNON 6K

  • Page 1 User’s Guide 1325 CARDEN FARM DR | CLINTON, TN 37716 | 865.483.2040 | ITOOLCO.COM © 2020 PROPERTY OF ITOOLCO...
  • Page 2: Table Of Contents

    Attaching Conduit Adapters ........................11 Underground Wire Pull .......................... 12 Overhead Wire Pull ..........................13 Receiver Hitch Wire Pulls ........................14 Maintenance ............................15 LIMITED WARRANTY: ITOOLCO CANNON 6K ..................... 16 ITOOLCO CANNON 6K USER’S GUIDE 2007C6KUG P a g e | 2...
  • Page 3: Safety First

    Hazards that, if not avoided, COULD result in severe injury or death. CAUTION Hazards or unsafe practices that, if not avoided, MAY result in injury or property damage. ITOOLCO CANNON 6K USER’S GUIDE 2007C6KUG P a g e | 3...
  • Page 4: Important Safety Information

    FAILURE TO OBSERVE THESE WARNINGS CAN RESULT IN SEVERE INJURY OR DEATH WARNING – PERSONAL SAFETY HAZARDS Only qualified persons should use iTOOLco Cannon 6K. Wear eye protection and hard hat when using this tool. Do not use this tool while tired or under the influence of drugs, alcohol, or medication.
  • Page 5 Do not use the cable puller as a hoist or winch. The cable puller cannot lower a load. The load may fall and cause serious injury or death. FAILURE TO OBSERVE THESE WARNINGS CAN RESULT IN SEVERE INJURY OR DEATH. ITOOLCO CANNON 6K USER’S GUIDE 2007C6KUG P a g e | 5...
  • Page 6: Description And Identification

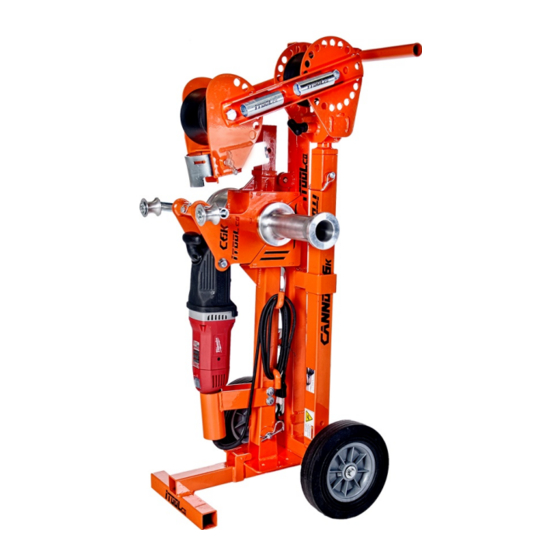

    The IToolco Cannon 6K is a 6,000 lb. cable puller intended to pull small to medium wire through conduit. It sets up in only minutes, and is a dual capstan, four-speed puller. The Cannon 6K can pull at speeds from 8 to 70 feet per minute. It does not need to be anchored to the ground, and is easy for one person to set up, transport, and operate.
  • Page 7 ITOOLCO CANNON 6K USER’S GUIDE 2007C6KUG P a g e | 7...
  • Page 8 ITOOLCO CANNON 6K USER’S GUIDE 2007C6KUG P a g e | 8...
  • Page 9 ITOOLCO CANNON 6K USER’S GUIDE 2007C6KUG P a g e | 9...
  • Page 10: Set Up And Operation

    2. Remove iTOOLco Cannon 6K Puller from shipping crate. 3. iTOOLco Cannon 6K is designed to be used with a drill motor, Milwaukee #1680-20. 4. Plug in the foot switch to the 120 Volt power supply and the C6K puller.
  • Page 11: Attaching Conduit Adapters

    Tighten the 1/2” bolt on the side of the front knuckle. See Figure 7. 3. Remove the adjustment hitch pin. Slide the puller into position and place the conduit adapter into the conduit. See Figure 8. 4. Replace all hitch pins. ITOOLCO CANNON 6K USER’S GUIDE 2007C6KUG P a g e | 11...
  • Page 12: Underground Wire Pull

    5. Stand to the side of the puller, using the rope guide, not in line with the rope being pulled, to avoid injury if the rope breaks. Note: iTOOLco Pull Slick or only low stretch rope designed for wire pulling, 1/2” to 7/8” sizes. 6. Use proper pulling lubricant to make pulling jobs smoother (on feed side).
  • Page 13: Overhead Wire Pull

    If the pull becomes difficult, add another wrap or two of rope to the capstan. If excessive force becomes necessary, stop the pull and inspect the set up. ITOOLCO CANNON 6K USER’S GUIDE 2007C6KUG P a g e | 13...
  • Page 14: Receiver Hitch Wire Pulls

    4. Secure puller to receiver hitch with base plate pin. 5. Wrap the rope as a bottom feed. Show below (Under Bottom Rope Start in Receiver Hitch Only). ITOOLCO CANNON 6K USER’S GUIDE 2007C6KUG P a g e | 14...
  • Page 15: Maintenance

    Always make sure that puller is clean and in good working order before use. Replace any worn rollers or rusty pins before use. Always make sure that Cannon 6K is clean and in good working order before use. Replace any worn rollers or rusty pins before use.
  • Page 16: Limited Warranty: Itoolco Cannon 6K

    If the part(s) if found to be defective, iTOOLco will refund freight charges paid by you in retuning the defective part(s) and prepay replacement part(s) freight charges.
  • Page 17 1325 CARDEN FARM DR | CLINTON, TN 37716 | 865.483.2040 | ITOOLCO.COM © 2020 PROPERTY OF ITOOLCO ITOOLCO CANNON 6K USER’S GUIDE 2007C6KUG P a g e | 17...
