- Page 1 ArlynGuard S Model MKE-5-IS(-SAW) (-SP) (-422) (-485) Intrinsically Safe SAW Ultra Precision Scales Instruction Manual...
-
Page 2: Table Of Contents
CONTENTS MANUFACTURER’S DECLARATION OF CONFOR MITY ......................... 5 INTRODUCTION ....................................6 ........................................6 CALE ERSION ......................................... 6 EATURES ........................................6 RECAUTIONS ..................................6 ONDITIONS FOR EIGHING ........................................6 ANUAL FACTORY MUTUAL APPROVAL AND INTRINSIC SAFETY ........................7 ..............................7 NTRINSIC AFETY IMITATIONS AND ESTRICTIONS... - Page 3 ......................................18 LATFORM ETUP Important Selections .................................... 19 Other Items ......................................19 Parametric Settings ..................................... 19 Filtering and Accuracy ..................................20 Advanced Setup and Diagnostics ................................. 23 TROUBLESHOOTING ................................... 24 Scale reads zero and will not move..............................24 Scale reading is fluctuating wildly............................... 24 Scale reading is different on different areas on the platform? ......................
- Page 4 ......................................38 EYPAD NLOCK ....................................38 EACTIVATING EYPAD SPECIFICATIONS ....................................38 LIMITED WARRANTY ..................................39 CONTROL DRAWINGS ..................................40...
-
Page 5: Manufacturer's Declaration Of Conformity
This product has been manufactured in accordance with the harmonized European standards, following the provisions of the below stated directives: The Electromagnetic Compatibility (EMC) Directive 2014/30/EU Restriction of the use of certain hazardous substances (RoHS) Directive 2011/65/EU Arlyn Scales, Inc. 59 2 Street, East Rockaway, NY 11518... -
Page 6: Introduction
INTRODUCTION Congratulations on your purchase of an Intrinsically Safe Ultra Precision SAW Scale. This Scale offers a combination of versatility, accuracy and simplicity in an easy to use and easy to maintain package. Advanced menu driven operating software, large memory capacity and an easy to use menu structure allows the scale to be configured for almost any application. -
Page 7: Factory Mutual Approval And Intrinsic Safety
No modifications of this system may be made in the field. Component level repair is not permitted on Factory Mutual approved equipment. It is mandatory to return the unit to Arlyn Scales for repair. Removal of the battery is not allowed when the scale is located in a hazardous area. The indicator must be removed from its mounting bracket and taken to a safe area. -
Page 8: Initial Set-Up And Operation
INITIAL SET-UP AND OPERATION The MKE-5-IS is simple to install and operate. It has the ability to operate on battery power as well as an external power supply. The other wiring necessary is for the attachment of load cells and optional cables for Setpoints and Serial Communication. For the battery operation, focus on the section “Battery Operation –... -
Page 9: Startup Caution
If this is not desired, then this setting can easily be changed. The rechargeable batteries used in this indicator have been approved by FM. The use of any other batteries violates FMs approval. Additional and replacement batteries must be purchased from Arlyn Scales. Caution Battery Power Safety Considerations –... -
Page 10: Battery Charging
Batteries can be recharged using any standard charger designed to charge a 2000-2600 mAh NiMH AA cell. A charger is also available from Arlyn Scales. Most commercial chargers cannot charge a single battery so batteries are commonly charged in pairs. -
Page 11: Load Cell Wiring
I -> Battery Operation 0 -> OFF II -> External Power Operation To utilize the external power supply (if available and connected), switch the indicator to “II”. The indicator will turn on once the supply begins. The battery does not get charged automatically when the external power supply is used to power the indicator. It needs to be charged separately as indicated in various sections of this document. -
Page 12: Controls And Indicators

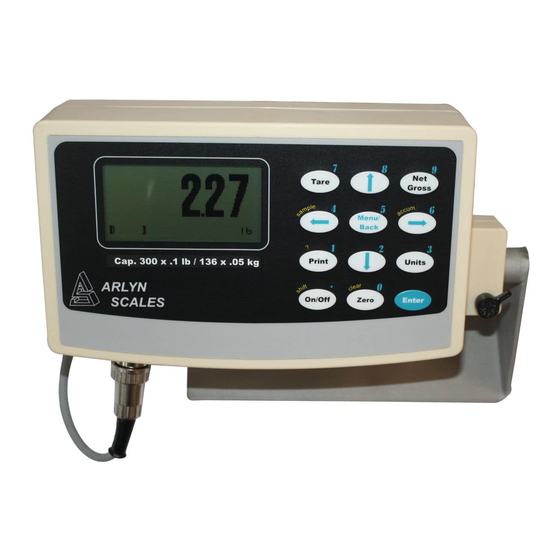

CONTROLS AND INDICATORS Main Display Screen The scale is equipped with 128x64 LCD Graphics Display with a wide viewing angle and variable contrast. For normal operations, you have a choice of viewing weight information from two main screens. For parts counting scales, two more screens are available. You can switch screens by pressing the MENU key and then press ENTER to accept the “Next Screen”... -
Page 13: Main Function Keys
Tare Gross Menu/ Back Print Units 320M 1000 x .2 lb. ARLYN On/Off Zero Enter SCALES Main Function Keys ON/OFF Press and hold to reboot the scale. On battery pack equipped scales, press and hold this key to power it down. TARE Tares any weight on the platform and switch the scale to the net mode. -
Page 14: Calibration
CALIBRATION Recommendations After familiarizing with various features and options available with the SAW Scale, please place the scale in the environment where the scale will be mostly used to get the scale acclimatized with its current environment. Take into account that the scale needs to warm up time of 10-15 minutes after boot-up. -
Page 15: Cap Zero (Resetting The Capacity Sensor)
CAP ZERO (Resetting the Capacity Sensor) If the scale is turned on and the weight is not reading zero, or after placing the weight, the weight reading is not correct even after performing a Full calibration, then the Capacity Sensor in the scale needs to be reset. Press MENU button (#5) ---- setup menu screen will appear Scroll to PLATFORM SETUPS and press ENTER. -
Page 16: System Operation
SYSTEM OPERATION Basic Menu Operation The scale operating system uses a menu driven interface that is both intuitive and easy to use. To access the setup menu press the MENU/BACK key. There are two basic menu types. The first is a simple list of items. To select an item in the list, use the UP and DOWN ARROW keys to line up on the desired item and then press ENTER. -
Page 17: Tare Settings
Activating Tares To activate a tare from the list, line up on it and the “ACTV” function in the lower menu, then press ENTER. The tare will be made active, the scale switched to NET mode and you will immediately be placed back in the weighing screen you were in when you accessed the setup menu. -
Page 18: Scale Description / Scale Id Number
The startup screen and conversion units can be set here. Zero lock can be enabled/disabled. Zero lock disables the front panel ZERO key. When this function is enabled the user must press the ZERO and the PRINT key simultaneously to zero the scale. Show SAW ST Screen at Startup. -
Page 19: Important Selections
Important Selections The two most important selections are: Span Calibration ❑ SAW Correction ❑ Span Calibration Span calibration adjusts the platform’s sensitivity so that the display reads correctly. A calibrated weight is required to perform this and the procedure is outlined above in the SAW Scale Full Calibration section. -
Page 20: Filtering And Accuracy
Select the conversion you wish to modify and press ENTER. Use ACTV to activate/deactivate it, DPNT to change its decimal point location and CNT to change what the least significant displayed digit will count by. In the pounds configuration (the scale’s native conversion unit) you can use OVRL to set the overload limit in pounds. - Page 21 Noise Count – NCNT: This is the noise count of filtering mechanism. This sets the number of weight values that need to be discarded before considering that the new weight value is a new value and not part of the current weight value tracking process. The higher this number, the less accurate the weight value, the faster your performance.
- Page 22 Source – SRC: This sets the primary source of readings that the Stability Control mechanism will use to estimate the best lock-in weight. There are two selections here: A/D Reading - This selection makes the Stability Control mechanism take readings unfiltered and straight from the load cell. ❑...
-
Page 23: Advanced Setup And Diagnostics
Advanced Setup and Diagnostics SAW Status This screen checks all the sensors in the SAW platform to make sure they are operating within a certain range. If the parameter readings are all within expected range, the sensor status will show “OK”. Otherwise, it will show as “Fail”. SAW Diagnostics Shows the digital raw parameters of all the sensors equipped within the scale. -
Page 24: Troubleshooting
TROUBLESHOOTING Your scale has been precisely calibrated at the factory before shipping. It has the capability to adjust its own calibration to a certain degree to compensate for aging electronics, and temperature changes. This being the case, it is possible that you will never have to calibrate the scale. -
Page 25: Menu Tree
MENU TREE Activate Description Edit Value Tare Defs. Acquire Next Screen Delete Tares Persistence Activate Description Tare Settings Analog Edit Value Setpoint Parts Counting Sample Defs. Acquire Delete Pounds Kilograms Edit Descr. Grams SAW Diag. Platform Setups Ounces Resolution Troy Ounces CAP Zero Pennyweights Option Setups... - Page 26 Options Guide...
-
Page 27: Introduction To Options
INTRODUCTION TO OPTIONS This section will cover the operation and setup of all of the options available for your scale. It is important to note that some described menu items will be missing if that option was not installed in your specific scale. All of the options listed may be installed in any scale and may run concurrently. -
Page 28: Print Stream Mode
Print Stream Mode Print stream mode will continuously print the currently active print frame at fixed time intervals. Stream mode can be configured using menu SETUP MENU/OPTION SETUPS/RS485/PRINT STREAM. The lower menu selection ENB will enable or disable print stream mode, and TIME will be the number of seconds between the beginnings of each print frame. -
Page 29: Print Stream Mode With Print-At-Stability
Zero Notify – ZERO NTFY: If this option is set to “YES”, then each time the scale is zeroed or a zero command is sent through one of the communication ports, the indicator will wait for the scale to stabilize and detect if there is no motion. Once these conditions are detected, the word “ZERO”... -
Page 30: Print Frame Functions
Print Frame Functions You can add up to 20 functions to Print Frame. The functions are executed in the order they are defined in the list. You can add a CR (carriage return), LF (line feed) or trailing spaces to most functions. This is useful when designing labels. Function List Function Action... -
Page 31: Print Request Response Time
It should be noted that the command list described below is the proposed list of commands. As our scale continues to develop, commands are added as each firmware revision comes out. The revision in which the command was added is shown just to the right of the command in parenthesis. - Page 32 Make sure the Port designation on the bottom right of the screen shows the correct connection parameters. Then press the PRINT button on the scale to start sending data on to the terminal. Alternatively, you can also send Print Command to the scale to retrieve weight. Use the Send Tab to do this:...
-
Page 33: Rs485 Communication
RS485 COMMUNICATION The RS485 communication framework is similar to the RS422 Communication Framework. The RS485 Communication option is a fully capable, bi-directional communications port. The output data frames can be customized to certain data types other than weights from the scale. The printing of a frame can be initiated by pressing the print button, by an external command or continuously when the print stream mode is activated. -
Page 34: Setpoint Controller
SETPOINT CONTROLLER The setpoint controller gives your scale the capability to output a signal to external equipment when certain conditions are met. This is particularly useful in filling operations, either to sound alarms or to control filling machinery. A Setpoint Command Set is a recipe of commands that the scale executes based on the current weight reading. In operation, if the displayed weight satisfies the recipe, the command set directs any of the outputs to switch on or off. -
Page 35: Creating And Editing Formulas
Cycle Mode – CYCLE=On/Off: The cycle option is used to create an operation cycle as described earlier in this section. Negative Reading – NEG=On/Off: The Negative option is used to determine if the scale needs to evaluate negative weight values. If NEG = Off, then the setpoint controller will not evaluate negative weights, as in it will treat both negative and positive weights the same. -
Page 36: Notes On Cycle Mode
> 5.20 <= 5.20 // Now the “over” (yellow) light to be on anytime the weight is above 5.2lb > 5.20 When this formula is executed, the scale evaluates each line in order. This calculation is done in memory only, and the outputs are not affected until the formula is complete. -
Page 37: Output Connector And Pin Diagram
Output Connector and Pin Diagram In most cases there will be a single cable with a 15-pin subminiature D type female connector added to the scale for interfacing to external equipment. Setpoint #4 Output Setpoint #5 Output Setpoint #6 Output Setpoint #7 Output Setpoint #8 Output Setpoint #3 Output... -
Page 38: Keypad Lock
Keypad Lock Press the menu button. Unlock keys by entering the current password, if necessary. Navigate to Options Setup and then scroll down to “Set Password”. “Enter new password” will appear on the display. Enter the desired password (4 digits long) Confirm the password by retyping the intended password. - Page 39 Scales warrants the equipment against faulty workmanship and defective materials. If any equipment fails to conform to these warranties, Arlyn Scales will, at their option, repair or replace such goods returned within the warranty period subject to the following conditions: •...
- Page 40 CONTROL DRAWINGS The following drawings, required for the installation of the MKE-5-IS Scale System, are listed below and are included on the following pages. Doc No Title 4010 MKE-5-IS General Dimensions 4013 MKE-5-IS Intrinsically Safe Scale System, Installation and Wiring Diagram 4011 MKE-5-IS Indicator Label Drawing 7213...
