4O3A Antenna Genius Quick Start Manual

Power

AG requires anywhere from 12 to 14 VDC and at least 300 mA of power.
Connect AG to your shack 13.8 VDC power supply paying attention to
proper polarity

Antenna Ports

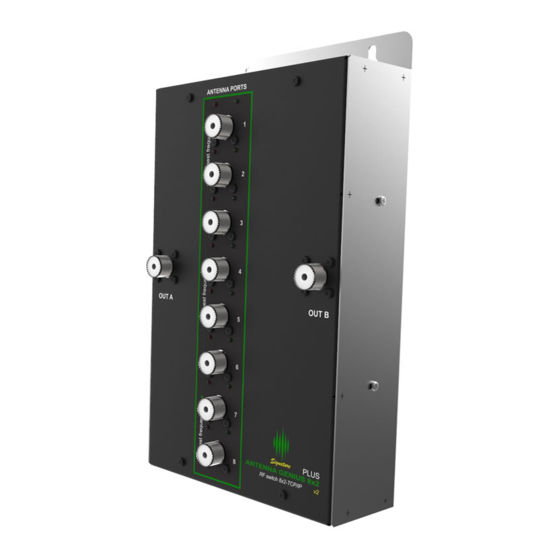

Antenna Ports are numbered from 1 to 8. Outer (top and bottom) antenna ports are best suited
for highest frequencies and the middle antenna ports for lowest frequencies.

Radio Ports

Radio Ports have the same isolation and can be used interchangeably.

PTT Ports

PTT Ports are a new feature designed to prevent hotswitching while transmitting.

DIP Switch Configuration

DIP Switches are used to configure how AG is controlled / gets its band data.
Port A configuration:
DIP 1 DIP 2 CONTROL
OFF OFF LAN – FlexRadio or Manual
OFF ON BCD Control
ON OFF Pin-to-Port Control
ON ON GSD control
LAN Control is used for obtaining band data from a FlexRadio. Use the AG Windows app to find
your FlexRadio on the network and connect it to it.
This mode is also used for selecting antennas manually by mouse clicks. If you wish to use this
functionality configure your antenna port band as None.
BCD protocol is used by traditional radios. Connector pinout is found at the end of the chapter.
Band 160M
1.8
Frequency
Band A H
Band B L
Band C L
Band D L
HEX Code 1
Antenna Genius Quick Start Guide
Current app version: 3.1.4
80M 40M 30M
3.5 7 10
L H L
H H L
L L H
L L L
2 3 4
Port B Configuration:
DIP 3 DIP 4
OFF OFF
OFF ON
ON OFF
ON ON
20M 17M 15M
14 18 21
H L H
L H H
H H H
L L L
5 6 7
CONTROL
LAN – FlexRadio or Manual
BCD Control
Pin-to-Port Control
GSD control
12M 10M 6M
24 10 50
L H L
L L H
L L L
H H H
8 9 A
None
L
L
L
L
0
