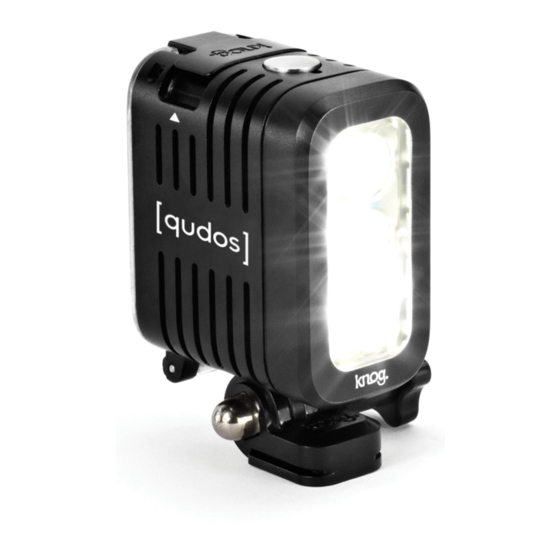

Knog qudos Action Light Quick Start Manual

Includes:
A. Light Unit
B. Rechargeable LiPo Battery
C. Action Camera Mount 2
D. Cold shoe + Tripod Adaptor
E. Mount Hardware (short)
F. Mount Hardware (long)
G. USB Extension Cord
H. 2 x Anti-Vibration Pads
4
Notes: Rechargeable LiPo battery already assembled into the Light Unit.
1
3+ models or any action camera with a GoPro-style mount.
models and can also be used for mounting directly to a tripod.
assembly onto the Light Unit surface that is mounted closest to the Action Camera.
Before first use:
Please fully charge the battery before you use the [qudos] Action Light for the first time.
Removing the Battery:
Battery removal and insertion should be carried out in a clean, dust-
free environment. Ensure your hands are clean. Should the area
around the seal become dirty whilst handling, the seal will become
compromised. Please refer to "waterproof seal care" section for
further details and to ensure your product warranty is not voided.
1. Rotate tab, 2. Lift tab to release battery door, 3. Open battery
door, 4. Remove battery from Light Unit.
Recharging the Battery:
1. Connect battery to USB Extension cord provided.
2. Connect USB to a computer USB port or other electronic device
with USB port.
A full charge cycle will take 5-6 hours. Battery charge status LED
located at bottom of the battery.
Wall charger Specifications:
If using a wall charger, use an approved USB charger only. AC input: 90-260VAC 50/60Hz. DC Output: 5VDC (+0.25V/-0.1V) 2A.
Use chargers with suitable approvals and certifications only. Charging conditions: Indoors only in temperatures above 10°C (50°F).
Mounting [qudos] Action Light:
There are a variety of mounting options and models that will enable
you to capture images and video at night.
Action Cameras:
Use parts C and E
Modes of use:
The On/Off switch is located on the top of the Light Unit. Press/hold for 2 seconds to turn it on and off. To switch between modes press the button
for 1 second or less.
1
3
A
DSLR Cameras:
Use parts D and E
Icon
B C
Suitable for use with Go Pro Hero 2, Hero 2+, Hero 3 and Hero
2
3 Cold shoe + Tripod Adaptor suitable for mounting onto a variety of Digital SLR
Anti-vibration pads of varying heights have been provided for optional use and
4
1
Note: Repeat steps in reverse to replace battery in Light Unit.
Scuba Diving applications:
Using the standard Action cam mount whilst scuba diving may
produce undesirable 'backscatter'. For a more desirable result, use of
a dedicated dive camera tray, placing the [qudos] Action light at least
30-50cm away from the Action Camera, is suggested.
Tripods:
Use parts D and E
Mode Beam Angle
Action Wide
Target Spot Narrow
Ambient Ultra wide
D E F
2 3
Lumens Runtime (hrs)
400 High / 225 Low 0.7 High / 1.3 Low
175 High / 100 Low 1.5 High / 2.8 Low
270 High / 70 Low 1.1 High / 4.3 Low
English
Page 1 / 2
G H
4
LED
