- Page 1 Installation Instructions and User Guide Infrared Automatic Soap Dispenser Models covered: IRSD1-CP, IRSD1-BN, IRSD1-BZ Please keep this booklet for future reference. Installer, when you have read these instructions please ensure you leave them with the user.
-
Page 2: Table Of Contents

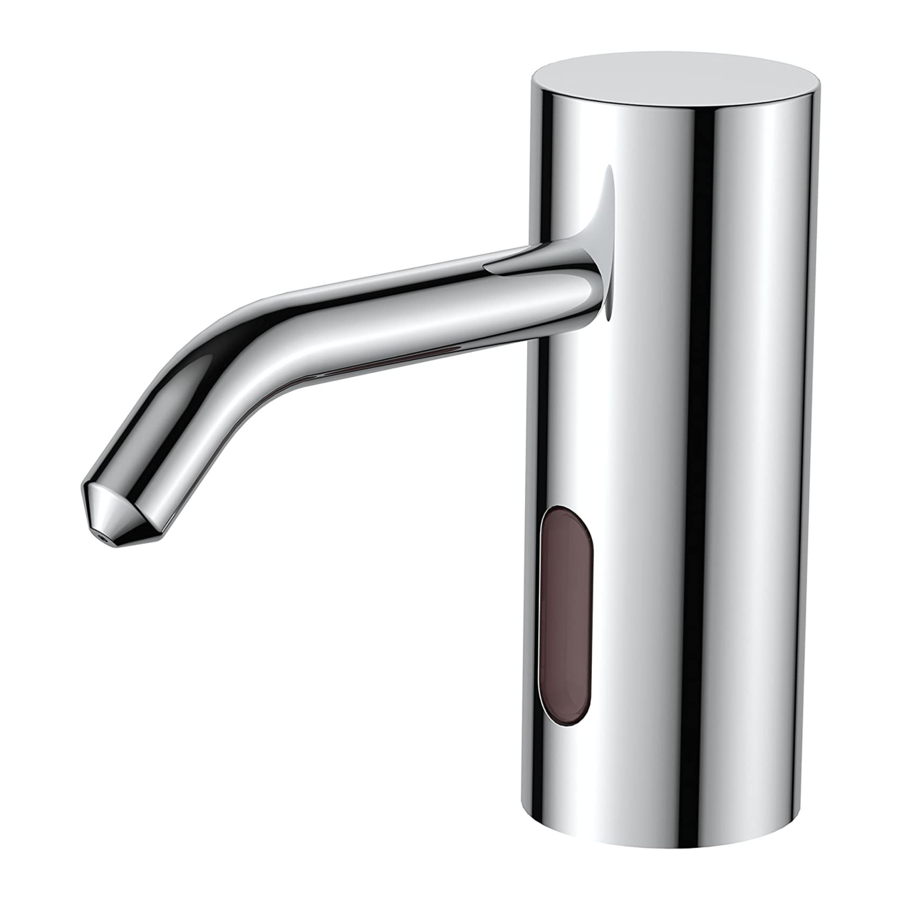

Contents Thank you for choosing Bristan, the UK’s leading showers and taps expert. Your Bristan Soap Dispenser has a non-touch control which uses infrared sensing technology to detect human presence. Once detected, the spout instantly dispenses a small amount of liquid soap into the users hands to eliminate unnecessary wastage, whilst creating a more hygienic washroom solution. -
Page 3: Important Safety Information
• Before starting any installation • All products manufactured and please consider the following: supplied by Bristan are safe before drilling into walls, check that provided they are installed, used there are no hidden electrical wires, correctly and receive regular cables or water supply pipes. -
Page 4: Product Features
Product Features More Hygienic The proximity sensor removes the need to touch the spout, reducing the spread of germs and reducing the chance of cross infection. Battery Override Your infrared soap dispenser is supplied with a back up battery pack. In the event of a power failure, the product will automatically switch to battery operated mode to ensure the... - Page 5 If the supply cord is damaged, it markings identifying the terminals must be replaced by a genuine in your connection unit proceed as Bristan supply cord. Contact Bristan follows;- Customer Services on 0330 026 6273 to request new spare parts.
-
Page 6: Installation
Installation 1. Fit The Spout Fit the spout to the sink / basin ensuring the dispensing cable and sensor cable are threaded through the hole in the sink / basin. 2. Secure Spout to Sink / Basin Screw the metal backnut onto the thread of the spout upto the underside of the sink / basin. - Page 7 Installation 4. Attach Pump to Bottle Ensure the dispenser tube is located inside the bottle and push the pump down firmly onto the bottle until a Pump loud ‘click’ is heard. To remove the pump from the bottle press the release button in on the side of the pump and pull the pump from the bottle.
- Page 8 Installation 7. Connect Power Supply Cable Before starting any electrical work ensure the power supply is isolated. Wire the electrical power cable into a switched fused spur off the ring main. The blue wire should be wired to the neutral connection and the brown wire should be connected to the live connection.
-
Page 9: Commissioning
Commissioning Commissioning Sequence Before using the soap dispenser for the first time the following sequence must be carried out. Fill the bottle full of liquid soap. Refer to specification section on page 3 for the correct liquid soap to be used. Dispense Button Important: Gels/sanitisers... -
Page 10: Operation
Operation Using the Automatic Soap Dispenser Place the users hands under the spout within the sensing range. Once the users hands have been detected a small amout of liquid soap will be dispensed from the spout into the users hands. Note: The sensing range 0-8cm from the sensor. -
Page 11: Maintenance
Maintenance This symbol on the product or General Cleaning packaging indicates that this product Your fitting has a high quality finish should not be disposed of with your and should be treated with care to other household waste. Instead, it is preserve the visible surfaces. -
Page 12: Troubleshooting
Troubleshooting Symptom Cause Remedy Spout does Sensor cable not Check that the sensor not dispense connected. cable is connected. If not soap. connected, connect sensor cable. Refer to ‘Installation’ section on pages 6-8. Possible blockage in Remove pump from bottle dispense tube or dispense and clean tube. - Page 13 Troubleshooting Symptom Cause Remedy Sensor light Sensor light faulty. Contact Bristan Customer not working. Services on 0330 026 6273. Batteries are exhausted. Replace batteries. Short cycles of Incorrect batteries fitted. Replace batteries. Ensure batteries. batteries are 1.5V AA (LR6) Alkaline batteries (preferably =>2000mAh) for good...
