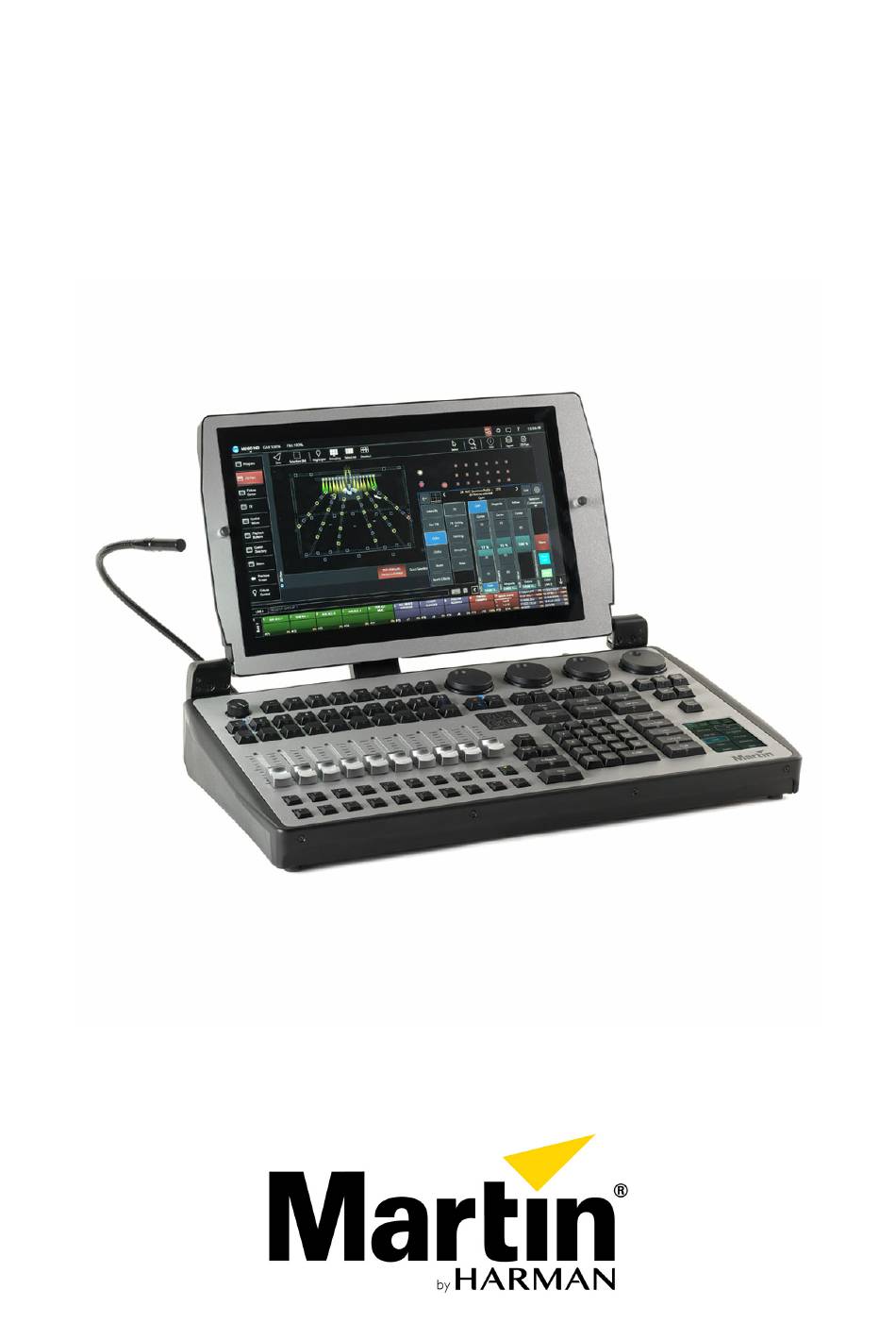

- Page 1 Martin M2GO HD Martin M2PC Safety and Installation Guide...
-
Page 2: Table Of Contents
Martin™, Harman™ and all other trademarks in this document pertaining to services or products by Martin Professional™ or its affiliates and subsidiaries are registered as the property of Harman International Industries. -
Page 3: Dimensions
Dimensions All dimensions are in millimeters © 2017 Martin Professional ApS Martin M2GO HD and M2PC Safety and Installation Guide... -
Page 4: Introduction
Introduction Thank you for purchasing the Martin M2GO HD - M2PC Lighting Control System. The system offers a powerful lighting controller with all the features of the M-Series of Martin controller in a small and compact housing. The M2GO HD is a complete lighting desk with an integrated processor, while the M2PC is a USB control surface that requires an external PC system. -
Page 5: Technical Support
Important! For certain support and warranty inquiries the user will need to provide the device serial number. To see the serial number, disconnect the console from power and from all external devices, lift it up carefully and turn it over. © 2017 Martin Professional ApS Martin M2GO HD and M2PC Safety and Installation Guide... -
Page 6: Safety Information
Caution: Risk of explosion if CMOS battery is replaced by an incorrect type. Dispose of used batteries according to local environmental regulations Caution: Do not expose CMOS battery to excessive heat such as sunshine or fire. © 2017 Martin Professional ApS Martin M2GO HD and M2PC Safety and Installation Guide... -
Page 7: Included Items
1.5 m (4.9 ft.) power cable, 3-pin IEC P/N 11501502 (with NEMA 15-5P plug for use within the USA and Canada) USB cable Safety and Installation Manual © 2017 Martin Professional ApS Martin M2GO HD and M2PC Safety and Installation Guide... -
Page 8: Software
Please check periodically for new releases that may add new functionality or resolve a bug. It is necessary to update to the latest release software before using the controller for the first time. © 2017 Martin Professional ApS Martin M2GO HD and M2PC Safety and Installation Guide... -
Page 9: Recommended Pc System For M2Pc
Without the touchscreen the system will provide a poor user experience and is difficult to use. The PC should meet these minimum recommendations: Windows 10 Operating System Intel Core i5 processor USB 2.0 connection 4GB RAM 1280x800 resolution touchscreen © 2017 Martin Professional ApS Martin M2GO HD and M2PC Safety and Installation Guide... -
Page 10: Setup And Assembly
Never place the controller onto a blanket or other soft surface as this would block the ventilation openings and cause overheating that would shut down the internal processor and possibly damage the controller. © 2017 Martin Professional ApS Martin M2GO HD and M2PC Safety and Installation Guide... -
Page 11: Power Connections
Power Connections The Martin M2GO HD - M2PC accepts AC mains power at 100-240V 50/60Hz. Do not connect it to power outside this range. Damage resulting from incorrect connection is not covered under warranty. North America: A cable with a NEMA 15-5P plug is provided for use with the M2GO - M2PC in the USA and Canada. -
Page 12: Connections
This card is optional on the M2PC controller. SMPTE The SMPTE device offers 3-pin XLR connectors for SMPTE In and Out signals. This card is optional on the M2PC controller. © 2017 Martin Professional ApS Martin M2GO HD and M2PC Safety and Installation Guide... -
Page 13: Rear Panel
3-pin XLR female, 12V, 500ma for Littlite type gooseneck desklights DMX 1-4 5-pin XLR female DMX Outputs, RDM compatible, bidirectional for DMX Input 1x USB-B input connection © 2017 Martin Professional ApS Martin M2GO HD and M2PC Safety and Installation Guide... -
Page 14: Service
Service The Martin M2GO HD - M2PC is designed as a rugged, roadworthy device. Occasional cleaning is the only service required of the user. For any other service-related concerns, please contact your Martin dealer or visit www.martin.com. Any service not described in this document must be carried out by a qualified Martin technician. -
Page 15: Specifications
MaxNet synchronized programming and playback support Physical Length: 300 mm (11.9 in.) Width: 540 mm (21.3 in.) Height: 99 mm (3.9 in.) Weight: 9 kg (19.8 lbs.) © 2017 Martin Professional ApS Martin M2GO HD and M2PC Safety and Installation Guide... - Page 16 Manual override available at all times Live 0-1000% override of global cue timings Live programmer timing (“Sneak”) Cuelists can be executed in tracking or non-tracking mode © 2017 Martin Professional ApS Martin M2GO HD and M2PC Safety and Installation Guide...
- Page 17 Flightcase for M2GO HD Console: P/N 91535085 Martin™ M-Play: P/N 90737030 Martin™ M-DMX Interface Box / Martin™ M-PC 2U package: P/N 90737070 Ordering Information Martin™ M2GO HD Console: P/N 90737080 © 2017 Martin Professional ApS Martin M2GO HD and M2PC Safety and Installation Guide...
-
Page 18: M2Pc
MaxNet synchronized programming and playback support Physical Length: 300 mm (11.9in.) Width: 540 mm (21.3 in.) Height with dust cover installed: 99 mm (3.9 in.) Weight: 4.6 kg (10.2 lbs.) © 2017 Martin Professional ApS Martin M2GO HD and M2PC Safety and Installation Guide... - Page 19 Manual override available at all times Live 0-1000% override of global cue timings Live programmer timing (“Sneak”) Cuelists can be executed in tracking or non-tracking mode © 2017 Martin Professional ApS Martin M2GO HD and M2PC Safety and Installation Guide...
- Page 20 Martin™ M-DMX Interface Box / Martin™ M-PC 2U package: P/N 90737070 Ordering Information Martin™ M2PC™ Console P/N 90737010 Optional Midi PCB P/N 91613038 Optional SMPTE Timecode PCB P/N 90703040 © 2017 Martin Professional ApS Martin M2GO HD and M2PC Safety and Installation Guide...
