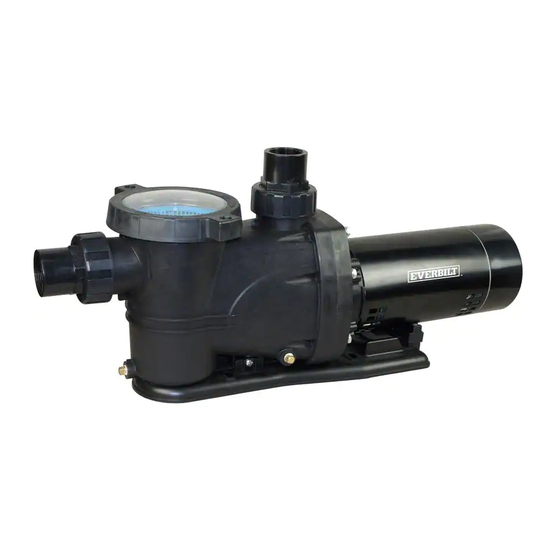

Summary of Contents for Everbilt SPP15002

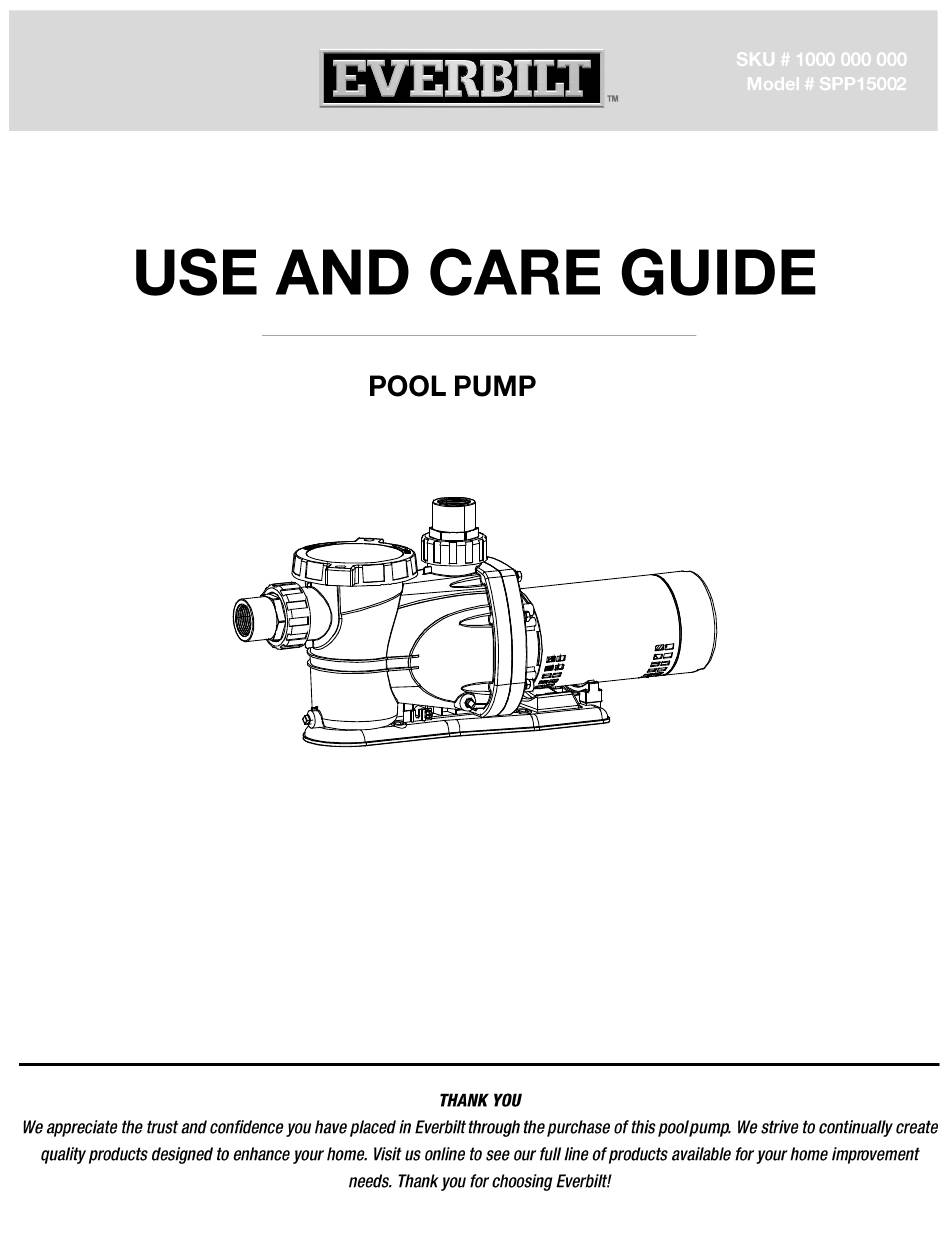

  • Page 1 Questions, problems, missing parts? Before returning to the store call Everbilt Customer Service 8 a.m. - 6 p.m., EST, Monday-Friday 1-844-241-5521 HOMEDEPOT.COM...
  • Page 2 Model Max. Lift 0 ft 10 ft. 20 ft. 30 ft. 40 ft. 50 ft. SPP15002 1 1/2 5300 5000 3920 3720 2700 1800 The manufacturer warrants the products to be free from defects in materials and workmanship for a period of one year from date of purchase. This warranty applies only to the original consumer purchaser and only to products used in normal use and service.
  • Page 3 :Risk of suction entrapment. Always turn off :Risk of hazardous pressure. Stand clear of all power to the pool pump before installing the cover or pump and filter during start-up. Pool and spa circulation working on any suction outlet. systems operate under high pressure. When any part of the This pump produces high levels of suction and creates a circulating system (i.e.
  • Page 4 :All work must be performed by a qualified Follow all local electrical and safety codes, pool professional, and must conform to all national, state, along with the National Electrical Code (NEC). In addition, all and local codes. Occupational Safety and Health Administration (OSHA) guidelines must be followed.
  • Page 5 APPLICATION This pump is for use with permanently installed pools and may also be used with hot tubs and spas if so marked. Do not use with storable pools. A permanently installed pool is constructed in or on the ground or in a building such that it cannot be readily disassembled for storage. A storable pool is constructed so that it may be readily disassembled for storage and reassembled to its original integrity.
  • Page 6 MATERIALS REQUIRED (NOT INCLUDED) SPECIFICATIONS SPP15002: 115V/230V, 60 HZ., 20 Amp Circuit Power supply Liquid temp. range 32 to 100° F (0- 38° C) Discharge size 1 -1/2 in. NPT For quick disconnect pipe connections, use the 1-1/2 in. Slip Half Union Kit included with the pump. Only qualified, licensed personnel should install pump and wiring.
  • Page 7 Thread sealant tape instructions: Use only new or clean PVC pipe fittings.  Wrap male pipe threads with one to two layers of PTFE tape. Cover entire threaded  portion of pipe. Do not over tighten or tighten past thread stop in pump port! ...
  • Page 8 Water Velocity The maximum water velocity through the suction fitting or cover for any suction outlet must be 1.5 ft. per second unless the outlet complies with the latest ASME/ANSI Specification for Suction Fittings For Use in Swimming Pools, Spas, Hot Tubs, and Whirlpool Bathtub Applications. In any case, do not exceed the suction fitting’s maximum designed flow rate.
  • Page 9 Model # Max Load Amps Voltage/Hz/Phase Rating Amps* (0-30) (30-60) (60-90) AWG Wire Size (mm SPP15002 1-1/2 17/8 115,230/60/1 12 (3) 8 (8.4) 6 (14) * Time delay fuses are recommended instead of standard fuses in any motor circuit. For Professional Technical Support call 1-844-241-5521...
  • Page 10 Risk of explosion. Before removing trap cover: with water before NEVER run pump dry. Running pump dry may damage seals, causing leakage and flooding. Fill pump starting motor. 1. Stop pump before proceeding. 2. Close gate valves in suction and discharge pipes. 3.
  • Page 11 Draining Pump Risk of electric shock. Can shock, burn or kill. Disconnect power before working on pump or motor. Pump down water level below all inlets to the pool. Risk of electric shock. Can shock, burn or kill. To avoid dangerous or fatal electrical shock hazard, turn OFF power to motor before draining pump.
  • Page 12 Pump Disassembly/Removing Old Seal Before disassembly, disconnect power to pump motor. Be sure gate valves on suction and return piping are closed. Release all pressure by opening all vents. 1. Drain pump by removing drain plugs on bottom of pump body and trap body. 2.
  • Page 13 If seat still will not locate properly, place a cardboard washer over the polished face and use a piece of 3/4 in. (19 mm) standard pipe for pressing purposes. Be sure not to scratch or mar polished surface or seal will leak. Replace slinger on end of motor shaft so that impeller sleeve will push it into position.
  • Page 14 Problem Possible Cause Corrective Action There is an error in the wiring or the Check voltage at motor terminals and at meter while pump is The pump may be running too voltage is not set correctly. running. If low, see wiring instructions or consult power slow.
