Eagle KEVA EEF 2001A Manual

Bmi machine
Hide thumbs Also See for KEVA EEF 2001A:
Table of Contents

Advertisement

Quick Links

Download this manual
BMI MACHINE

Advertisement

Table of Contents
loading

Related Manuals for Eagle KEVA EEF 2001A

Summary of Contents for Eagle KEVA EEF 2001A

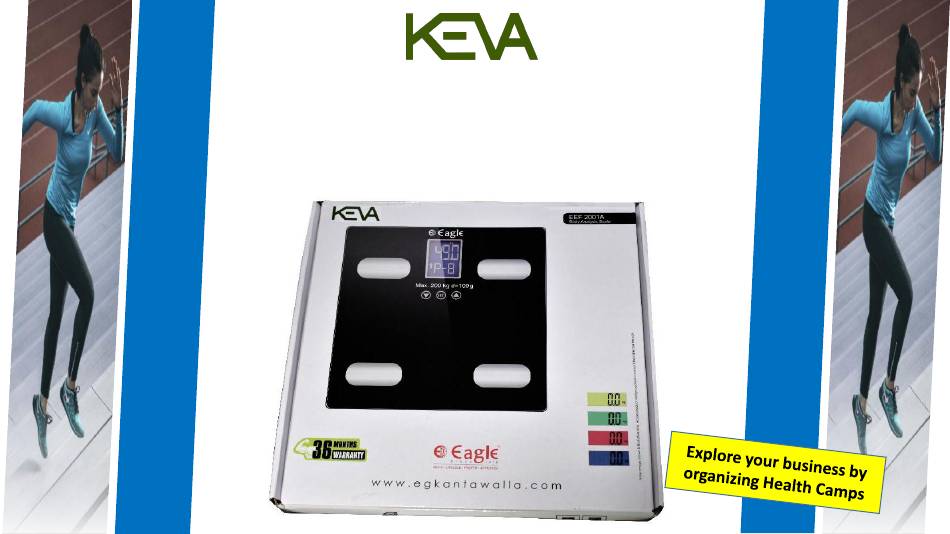

  • Page 1 BMI MACHINE...
  • Page 2 WHAT IS BMI? • BMI or BODY MASS INDEX is calculated using just your weight and height, so it is just an estimate of whether you're likely to fit within the healthy weight range. • Any BMI between 18.5 and 24.9 puts you within the normal range, while anything higher than this indicates you may be overweight.
  • Page 3 Body Mass Index • Body mass index, or BMI, is an easy-to-calculate measure of obesity based on the ratio of your weight and your height. • It's convenient to use -- just knowledge of your height and weight -- and it's useful for most people to get a general idea of your disease risk.

  • Page 4: Health Tips - About Body Fat

    HEALTH TIPS - ABOUT BODY FAT  Human body is made up of, amongst other things, a percentage of fat.  Body fat is vital for a healthy, functioning body, protects vital organs, helps regulate body temperature, stores vitamins and helps the body sustain itself when food is scarce.
  • Page 5 The table as follows may be used as a guide: The body fat ratio (Unit - %) : Standard for Men Rating 20-29 30-39 40-49 50-59 <13 <14 <16 <17 <18 Normal 13-20 14-21 16-23 17-24 18-25 Moderately 20.1-23 21.1-24 23.1-26 24.1-27 25.1-28...
  • Page 6 Standard for Women Rating 20-29 30-39 40-49 50-59 <19 <20 <21 <22 <23 Normal 19-28 20-29 21-30 22-31 23-32 Moderately 28.1-23 29.1-32 30.1-33 31.1-34 32.1-35 High High >31 >32 >33 >34 >35 The color of display becomes Red if the body fat is above normal range. The color of display becomes Green if the body fat is within normal range.

  • Page 7: Health Tips - About Body Water

    HEALTH TIPS - ABOUT BODY WATER • Body water is the single most important component of body weight. It represents over half of your total weight and almost two thirds of your lean body mass (predominantly muscle). • Water performs a number of important roles in the body. All the cells in the body, whether in the skin, glands, muscles, brain or anywhere else, can only function properly if they have enough water.
  • Page 8 The table as follows may be used as a guide: The body water ratio (Unit - %) : BF % RANGE OPTIMAL TBW % RANGE 4 to 14% 70 to 63% 15 to 21% 63 to 57% 22 to 24% 57 to 55% 25 and over 55 to 37%...

  • Page 9: Health Tips - About Muscle Mass

    HEALTH TIPS - ABOUT MUSCLE MASS According to the American College of Sports Medicine (ACSM), lean muscle mass may decrease by nearly 50 percent between the age of 20 and 90. If you do nothing with it you're losing muscle and increasing fat. It is also important to know your muscle mass % during weight reduction.

  • Page 10: Health Tips - About Bone Mass

    HEALTH TIPS - ABOUT BONE MASS • Regular exercise and a balanced diet can help maintain healthy bones. Like muscle, bone is a living tissue that can respond to exercise by becoming stronger. • For most people, bone mass peaks in their thirties. Then people begin to lose bone. Regular exercise can help prevent that loss.

  • Page 11: Health Tips - About Bmi

    HEALTH TIPS - ABOUT BMI • Maintaining proper weight is essential to healthy living. Obesity has been linked to a higher risk of heart disease, diabetes and some forms of cancer. • The Body Mass Index (BMI) is the most widely accepted measurement of weight according to health professionals.
  • Page 12 KEVA BMI MACHINE The Body Analysis Scale EEF 2001A offers you a seamless way to manage your health...

  • Page 13: Safety And Usage Information

    SAFETY AND USAGE INFORMATION The warning signs and symbols are essential to ensure correct and safe use of this product and to protect you and others from injury. Kindly find the meanings of the warning signs and symbols, which you may encounter on the scale and in the user manual, as follows:...
  • Page 14 CAUTION • The Body Analysis Scale EEF 2001A offers you a seamless way to manage your health. • Please be aware that this device is designed for adults' self-measuring and self-monitoring body fat level. Any information provided by this device is in no way meant to treat, cure or prevent any disease or illness from happening. This device should not be used by anyone who is acutely or chronically ill, suffering from a disease or taking medications that affect your water levels.
  • Page 15 Model No EEF2001A (Colour changing Display) Features : 1. Equipped with 4 high precision G- Measures : sensors 2. 6 mm Tempered glass 1. Weight 3. Equipped with 4 BIA sensors 2. Body Fat 4. Sense on Technology Auto on and off 3.
  • Page 16 Model No EEF2001A (Colour changing Display) Product approved from legal Metrology Dept. India. No need of license for using 36 months Warranty the product as per The Legal Metrology Dept. India...

  • Page 17: Safety Information

    SAFETY INFORMATION INDICATIONS FOR USE • The Body Analysis Scale measures weight, BMI and uses Bio-electrical Impedance Analysis (BIA) technology to estimate body fat, total body water percentage, bone mass and muscle mass in generally healthy children aged between 10-17 years old and healthy adults.
  • Page 18 SAFETY INFORMATION YOUR SCALE AND IT’S ENVIRONMENT To ensure your safety as well as the service life of your scale, please avoid using the scale under the following circumstances: • Slippery floor such as tile floor • Jumping onto the platform immediately after bath or with wet feet •...
  • Page 19 SAFETY INFORMATION EFFICIENT USE OF YOUR SCALE To ensure the accuracy of measurement, please follow below instructions when you start measurement. • Place the scale on a flat, hard surface. Soft surface such as carpet will affect the performance of the scale.

  • Page 20: Device Components

    DEVICE COMPONENTS List 1. Body Analysis Scale EEF 2001A 2. 2*CR2032 Battery (3V) 3. User Manual...

  • Page 21: Lcd Display

    OVERVIEW LCD DISPLAY...

  • Page 22: Initial Start-Up

    INITIAL START-UP • Body Analysis Scale EEF 2001A applies BIA (Bio-Impedance Analysis) technology. • A small amount of weak current flows through the human body so as to detect the bio-impedance and estimate BMI, body fat, total body water, muscle mass, bone mass and calorie.

  • Page 23: Insert The Battery

    INITIAL START-UP INSERT THE BATTERY • Open the battery cover on the back of the scale. • Remove insulating strip from beneath the battery. • Insert the battery. As the battery is inserted all segments in display gets lit up for a moment. •...
  • Page 24 INITIAL START-UP SET UP YOUR PROFILE The Body Analysis Scale EEF 2001A supports multiple users (Up to 8). You may follow below instructions to assign User ID and set up your own profile, including Gender, Height, and Age. 1. Assigning User ID •...
  • Page 25 INITIAL START-UP 2. Setting Gender • After confirming User ID, the system will show Gender setting automatically. • As pictured below, the portrait + blinks. The operator may press the function key A or v to select gender. (Male/Female ) •...
  • Page 26 INITIAL START-UP Setting Height • After confirming Gender, the system will show height setting automatically. • As pictured below, the digits "173" blinks. The operator may press the function key A or V to increase or decrease the numeral. ( 14 cm •...
  • Page 27 INITIAL START-UP 5. After confirming the Age, the LCD will display "0.0kg", then you can start measuring. 6. Repeat procedure for a second user, or to change user details. NOTE: To update or overwrite the memorized data, follow the same procedure and make the changes as required.

  • Page 28: Initializing Your Scale

    INITIAL START-UP INITIALIZING YOUR SCALE 1. Press the platform center and remove your foot. 2."0.0" will be displayed. 3. The scale will switch ON and is now ready for use. This initialization process must be repeated if the scale is moved to a new location. At all other times, step straight on the scale.
  • Page 29 INITIAL START-UP Weight Only Operation Your Body Analysis Scale will operate as a conventional weight reading scale. No special programming steps are required. For only weight - Once the scale is initialized, as previously described, you may simply step on the scale to measure your current weight. 1.

  • Page 30: First Measurement

    START MEASURING FIRST MEASUREMENT • Position scale on a firm flat surface. • Press "SET" key. • While the user id number of the latest measurement is flashing, select your user number by pressing A or V key. After 3s, the selected number is locked, the scale shows zero reading.
  • Page 31 START MEASURING STEP 2: Stand still on the scale. The weight data will be displayed on the LCD. The weight is flashing initially and after 2~3 seconds the weight data is locked and flashing stops. Keep full contact with the electrodes until the LCD stops displaying moving “o”. STEP 3 : The measurement results will be displayed in a sequence as shown below, i.e.

  • Page 32: Troubleshooting

    TROUBLE SHOOTING Error Prompt Solution Error Description Replace 2*CR2032 battery at the Low Battery. The device same time. Please purchase the will power OFF after three authorized battery for replacement. seconds. Stop using this scale for Overload. The device will measurement power OFF.

  • Page 33: When Measuring

    TROUBLE SHOOTING WHEN MEASURING PROBLEM ROOT CAUSE SOLUTION Abnormal measuring Please step on the platform Incorrect posture results: barefooted and stand still. • Too high; OR • Too low; OR The device is located on the soft • Huge difference between Please place the device on a flat, ground such as a carpet OR on a hard surface...
  • Page 34 TROUBLE SHOOTING WHEN MEASURING Please be barefooted during the Stepped onto the platform measurement, and keep full contact Cannot proceed to analyze wearing socks or shoes with the electrodes as well BMI, body fat, total body water, muscle mass} and bone mass.

  • Page 35: Specifications

    SPECIFICATIONS Specifications...

  • Page 36: About The Accuracy Of This Product

    SPECIFICATIONS Specifications ABOUT THE ACCURACY OF THIS PRODUCT • This product passes strict inspection before delivery and therefore its accuracy is guaranteed by the manufacturer. Please refer to the above table for the descriptions on accuracy. • This product is specially designed for body fat analysis as well as weight measurement.

  • Page 37: Maintenance

    MAINTENANCE When carrying out usual maintenance, please ensure practice of the following Do's and Don'ts: • DO use a dry soft cloth to wipe the dust. • DO use a wet soft cloth, dipped into water and wrung out, to wipe the dirt. Then use a dry soft cloth to dry up the device.
  • Page 38 THANK YOU...
