  • Page 1 USER GUIDE YOXIMO MOBILE...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS SECURITY REQUIREMENTS ................................ 3 1.1. ELECTROMAGNETIC.COMPATIBILITY.............................. 3 1.2. WHERE.WIRELESS.TECHNOLOGIES.ARE.USED..........................3 PRODUCT INFO .................................... 4 2.1. TERMINAL.OVERVIEW..................................4 2.2. DISPLAY.SYMBOLS....................................5 2.3. LOADING.STATION:.TABLE/WALL.INSTALLATION.AND.CLIP.HOLDER..................7 2.4. CHANGING.THE.RECHARGEABLE.BATTERY/INSTALLING.SIM.CARDS..................8 2.5. ABBREVIATIONS/INFORMATION................................ 9 2.6. MOBILE.CONNECTION..................................10 2.7.

  • Page 3: Security Requirements

    SECURITY REQUIREMENTS ELECTROMAGNETIC COMPATIBILITY When.connecting.additional.or.other.components.the.guidelines. of.the.“Electromagnetic.Compatibility.Directive”.(EMC).must.be. adhered.to. WHERE WIRELESS TECHNOLOGIES ARE USED WHILE DRIVING HEARING AIDS Radio.frequencies.can.interfere.with.electronic.systems.in.vehi­ Under.certain.circumstances,.terminals.can.cause.some.hear­ cles,.such.as.car.radios.or.security.devices,.etc.. ing.aids.to.malfunction..Contact.the.dealer/manufacturer.of. your.hearing.aid. VEHICLES EQUIPPED WITH AIRBAGS An.enormous.force.is.released.when.airbags.are.activated.. OTHER MEDICAL EQUIPMENT Therefore,.do.not.place.the.terminal.in.the.area.above.the.airbag. If.you.use.a medical.device,.please.contact.the.manufacturer.to. or.in.the.space.in.which.the.airbag.could.deploy..Terminals.that. determine.whether.it.is.sufficiently.protected.against.electro­ are.improperly.installed.can.cause.serious.injury.upon.deploy­ magnetic.waves..If.necessary,.your.attending.physician.could.be. ment.of.an.airbag. helpful.in.obtaining.this.information..Equipment.is.often.used. in hospitals,.medical.offices.and.other.facilities.which.is.highly. ELECTRONIC DEVICES sensitive.to.external.electromagnetic.waves..Do.not.use.the.

  • Page 4: Product Info

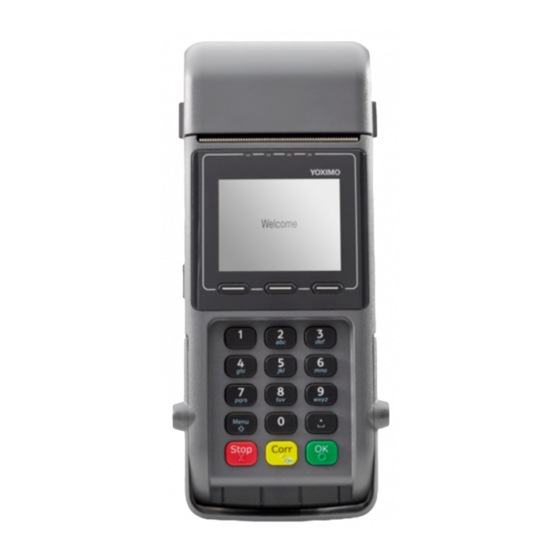

    PRODUCT INFO TERMINAL OVERVIEW Thermal printer Magnetic strip reader (on the side) For.cards.with.magnetic.strips. Display The.next.step.to.be.taken.is.always.shown.on.the.display. Contactless reader (RFID) For.contactless.paying. Special case <Confirmation.special.signalization>. Navigation buttons You.can.use.these.three.buttons.to.navigate.through.the.menu.. (up/down/confirm). <Menu> button Change.the.keyboard.settings.using.the.<Menu>.button. <OK> button All.entries.must.be.confirmed.using.the.<OK>.. b utton. <Corr/On> button •. Incorrect.entries.can.be.corrected.using.the.<Corr>.button. •. Press.the.button.to.activate.the.terminal.from.stand­by.mode. •.

  • Page 5: Display.symbols

    DISPLAY SYMBOLS BATTERY Battery.level.95 – 100% Battery.level.66 – 95%. Battery.level.33 – 66% Battery.level.10 – 33% Battery.level.0 – 10% If the battery symbol does not appear, the battery is empty. Recharging:.The.symbols.are.shown.in.the.following.order.when.the.battery.is.recharging: WLAN Only.appears.when.WLAN.communication.is.used. WLAN.is.connected.to.an.access.point,.the.IP.address.is.valid,.and.the.reception.strength.. is.100%. WLAN.is.connected.to.an.access.point,.the.IP.address.is.valid,.and.the.reception.strength. is greater than.66%. WLAN.is.connected.to.an.access.point,.the.IP.address.is.valid,.and.the.reception.strength. is greater than.33%. WLAN.is.connected.to.an.access.point,.the.IP.address.is.valid,.but.reception.is.poor. If the WLAN symbol flashes, there is a connection to the access point, but the IP address is invalid. If the WLAN symbol does not appear, either WLAN is not available or there is no connection to the access point.
  • Page 6 MOBILE COMMUNICATION RECEPTION STRENGTH Icon.only.appears.if.you.are.within.the.coverage.area.of.the.mobile.network. There.is.a connection.to.the.network.and.the.reception.strength.is.100%. There.is.a connection.to.the.network.and.the.reception.strength.is.greater.than.80%. There.is.a connection.to.the.network.and.the.reception.strength.is.greater.than.60%. There.is.a connection.to.the.network.and.the.reception.strength.is.greater.than.40%. There.is.a connection.to.the.network.and.the.reception.strength.is.greater.than.20%. If the mobile communication symbol does not appear, 3G/GPRS is not assigned to a network or reception is too poor to set up a connection. The.reception.strength.is.supplemented.by.one.symbols.shown.below. GSM.is.in.use,.3G/GPRS.is.not.available/in.use. If the mobile communication symbol flashes, it is in use but offline. GSM/GPRS.is.in.use.(GPRS.mode).

  • Page 7: Loading.station:.table/Wall.installation.and.clip.holder

    LOADING STATION: TABLE/WALL INSTALLATION AND CLIP HOLDER TABLE LOADING STATION INSTALLATION 1.. Loading station.with.power.supply. 2.. The.electrical current.is.supplied.through.the.cable.that. connects.directly.with.the.loading.station.. WALL MOUNT INSTALLATION 1.. The.loading.station.is.screwed.to.the.wall mounting. . c omponent.(screw.holes.. p rovided,.see.back.of.loading. . s tation). 2.. Wall mounting.(screw.holes.provided).. 3.. After.the.loading.station.has.been.positioned.on.the.wall,. connect.it.to.the.power supply.using.the.cable.provided.. INSERTING THE YOXIMO INTO THE LOADING STATION 1..

  • Page 8: Changing.the.rechargeable.battery/Installing.sim.cards

    CHANGING THE RECHARGEABLE BATTERY/INSTALLING SIM CARDS The.lifespan.of.the.rechargeable.battery.is.three.years..Replacement.batteries.can.be.obtained.from.SIX . P ayment . S ervices.Ltd. The rechargeable battery can be replaced in four steps: 1.. Press.the.tag.with.your.thumb.and.remove.the.cover. 2.. Remove.the.rechargeable.battery.. 3.. Insert.the.new.rechargeable.battery.and.press.it.into.place.. 4.. Slide.the.cover.back.into.position. INSTALLING SIM CARDS (generally.performed.by.SIX . P ayment . S ervices.Ltd,.see.point.2.6.Mobile.connection) 1.. Remove.the.rechargeable.battery. 2.. Remove.the.SIM.card.(to.the.left!).and.insert.the.new.card.. Replace.the.cover.and.close.

  • Page 9: Abbreviations/Information

    ABBREVIATIONS/INFORMATION Cards.with.a chip Cards.which.store.the.information.needed.for.electronic.payment.on.a chip.must.be.inserted.in.a chip.reader,. depending.on.the.terminal.model..If.the.terminal.is.equipped.with.a motor.reader,.then.the.card.is.automatically. drawn.in.and.read. Cards.with.a . c ontactless.chip Cards.that.have.a chip.featuring.a contactless.function.can.be.held.up.to.contactless.. r eaders.to.speed.up. the payment.process. Cards.with.a . m agnetic.stripe Cards.which.store.the.information.needed.for.electronic.payment.on.a . m agnetic.stripe.must.be.pulled.through. the.swipe.reader,.depending.on.the.terminal.model..If.the.terminal.is.equipped.with.a motor.reader,.then.the. card.is.automatically.drawn.in.and.read. Computer.center Credit.card.company CLP. Contactless.payment Credit.cards CVC/CVV. Card.Verification.Code  / Card.Verification.Value.number.used.to.identify.the.card. DCC. Dynamic.Currency.Conversion..Foreign.cardholders.can.pay.in.their.domestic.currency. EFT/POS. Electronic.Funds.Transfer.at.the.Point.Of.Sale EMV. Global.specifications.from.Eurocard,.Mastercard.and.Visa.based.on.a chip.card. ep2. <EFT/POS.2000>,.Swiss.standard.based.on.the.EMV.standard.in.electronic.payment.traffic. GPRS General.Packet.Radio.Service.(GPRS).is.a packet­oriented.transmission.. s ervice.that.is.used.in.the.field.of. mobile.telephone.systems.

  • Page 10: Mobile.connection

    MOBILE CONNECTION yoximo MOBILE Flex requires a mobile data subscription with •. The.reception.signal.can.vary.greatly,.depending.on.the. a mobile communications provider. mobile.communications.provider.and.usage.environment..It.is. possible.that.the.signal.may.be.weakened.to.the.point.that. The.PIN/PUK.must.usually.only.be.entered.once..This.is.done. communications.are.impossible.in.cellars,.houses.with.thick. when.the.terminal.is.commissioned.at.the.SIX . P ayment . S ervices. walls.or.steel.walls... production.facility..Keep.your.PIN.and.PUK.for.your.data.sub­ If.there.is.no.reception,.you.must.change.your.location. scription.handy.in.case.of.a malfunction.. •. Communications.while.in.motion.(in.trains,.cars,.boats,.etc.). can.become.instable.and.lead.to.a broken.connection. •. We.recommend.you.sign.up.for.the.mobile.subscription. via SIX.Payment.Services. WLAN Several.tips.for.working.with.a WLAN.terminal: •. We.recommend.that.you.inspect.the.location.before.installing. the.terminal..Determine.where.the.terminal.functions.in.your. •. Please.read.the.installation.instructions. building.and.where.the.radio.signal.is.limited.

  • Page 11: Setting.mobile.communication

    SETTING MOBILE COMMUNICATION yoximo.FLEX.automatically.switches.between.2G.and.3G.depend­ ing.on.which.signal.is.stronger..If.there.are.problems.with. switching.in.your.area,.you.can.set.a mobile.communication.type. <4> Settings <5> Network Setup <Password> <2> MOBILE NET <8> Mobile Net Type 2.10 STAND-BY OPERATION The.terminal.is.always.ready.for.operation.if.it.is.connected.to.the. matically.switch.to.stand­by.mode.if.not.used.for.approximately. power.supply.(transformer.or.loading.. s tation)..If.the.terminal. 60.seconds.to.preserve.the.battery..Make.the.terminal.opera­ is to.be.used.in.mobile.mode.on.battery.power,.then.it.will.auto­ tional.again.by.pressing.the.<Corr/On>.button. 2.11 PAYMENT PROCEDURE WITH EP2 CAUTION FOR OFFLINE TRANSACTIONS! The.payment.process.at.the.point.of.sale.is.standardised.for.all. cards.with.ep2..A.variety.of.card.types.are.in.cir.

  • Page 12: Start-Up

    START-UP INSTALLATION FIRST INITIALISATION SUBSEQUENT INITIALISATION The.yoximo.will.generally.already.have.been.commissioned.by. Should.it.be.necessary.to.re­initialise.a device.for.any.reason,. the.SIX . P ayment . S ervices.production.facility..Additional.instruc­ proceed.as.outlined.on.page.23. tions.are.provided.to.you.in.the.“Configuration.instructions.for. yoximo”.delivered.along.with.the.terminal. The.following.symbols.are.used.in.the.descriptions.in.this.document. Function.selection.by.choosing.the.corresponding.number.or.using.the.cursor.and.the.<OK>.button....Insert.card.. Depending.on.the.card.type,.it.must.be.inserted.in.the.chip.card.reader,.held.up.to.the.contactless.reader. or pulled.through.the.magnetic.swipe.reader. Remove.card. Sales.slip.printout. Request.the.customer’s.signature. Processing.and/or.communication. Manual.entry.of.the.card.data. Press.function.button.

  • Page 13: Menu Tree (Illustration)

    MENU TREE (ILLUSTRATION) MAIN MENU To.enter.the.menu.tree.below,.press.the.<STOP>.button. Main menu <1> Transactions Balances <2> Balances <1> Begin shift <3> Queries <2> End user shift <4> Settings <3> Daily closing ▲ <5> Setup <4> Transmit. Trx data <6> Additional services ¹ Queries <1> Shift counter <2>...

  • Page 14: Transactions

    TRANSACTIONS Transactions <1> Purchase <2> Purch. phone auth. ▲ <3> Reversal ▲ <4> Credit <5> Reservation <6> Purchase reserv. <8> Cash advance <0> Other transact. Other transactions <3> Reserv. adjustment. <4> Conf. Phone auth. <5> Mobile Voucher <6> Mobile Coupon <7>...

  • Page 15: Transactions

    TRANSACTIONS PURCHASE <1> PURCHASE •. Depending.on.the.CCC,.minimum/maximum.amounts,.day. The.purchase.is.the.most.common.transaction.type.in.electronic. limits,.etc..may.vary. payment.traffic. •. The.“manual.recording.of.card.data”.and.“sub. s equent. . c ancellation”.functions.are.either.activated.or.deactivated,. depending.on.the.CCC. CASHIER HANDLING Press.“1”..“Purchase”.will.be.activated. 1:.Purchase If.the.“foreign.currency”.function.is.activated.on.your.terminal,.you.must.select.the.desired.currency. <Currency> *.Menu.only.appears.if.2.or.more.currencies.are.activated. Enter.the.amount.and.confirm.with.<OK>.. Amount   The.amount.must.be.separated.with.a decimal.point.. For.amounts.below.CHF.1.00,.a zero.“0”.must.be.entered.first.(e.g.,.CHF.0.55). If.the.cardholder.prefers.to.make.a transaction.in.CHF,.this.can.be.selected.with.the.“CHF”.function.button. (DCC)¹ Proceed.with.card.processing.as.detailed.on.pages.17.and.18,.or.enter.manually.as.detailed.on.page.16. ¹. . T his.menu.item.is.only.shown.if.DCC.is.activated..The.terminal.automatically.recognizes.if.the.card.is.one.that.is.in.a DCC­capable.foreign.currency.and.automatically.chooses.DCC.. Otherwise,.the.transaction.will.be.processed.in.CHF..If.the.cardholder.. p refers.to.make.a transaction.in.CHF,.this.can.be.selected.with.the.“CHF”.function.button..As.soon.as.the.card. has.been.read.in,.CHF.can.no.longer.be.selected! Sample sales slip: Certain.fields.may.differ.according.to.the.purchase.type. Company Example Your.company.data,.which.will.be.printed.out.on.the.sales.slip.
  • Page 16 CASHIER: MANUAL CARD DATA ENTRY Card . V erification.Value)..This.3­digit.code.is.printed.on.the. reverse.side.of.the.card.(the.last.three.numbers). Should.a credit card.be.unreadable,.the.card.data.can.be. entered.manually.. After.you.have.chosen.the.transaction.mode.and.confirmed. this by.pressing.<OK>,.manual.entry.can.be.activated.using. To.do.so,.you.need.the.card.number,.the.expiry.date,.and. the corresponding.function.button. for newer.cards,.the.CVC/CVV.(Card.Verification.Code/ If.the.“foreign.currency”.function.is.activated.on.your.terminal,.you.must.select.the.desired.currency. <Currency> *.Menu.appears.only.if.two.or.more.currencies.are.activated. Enter.the.amount.and.confirm.with.<OK>. Amount   The.amount.must.be.separated.with.a decimal.point.. For.amounts.below.CHF.1.00,.a zero.“0.”.must.be.entered.first. Press.the.“Manual”.button.for.manual.recording. Enter.the.card.number.and.press.<OK>. Card.number   Enter.the.card.expiry.date.and.confirm.with.<OK>. Expiry.date   CVC2/CVV2. Enter.the.CVC2.respectively.CVV2.and.confirm.with.<OK>. if.present Tip! For.cards.without.a CVC,.press.<OK>.without.entering.the.CVC. Payment.is.recorded.and.authorised.online,.if.this.function.is.activated. A.sales.slip.is.printed.out. The.sales.slip.must.be.signed.by.the.customer.    If.a copy.is.desired.➞ press.1.. 1.:.Copy If.no.copy.is.desired.➞...
  • Page 17 After.the.cashier.enters.the.amount,.the.cus­tomer.is.prompted. Depending.on.the.card.type,.the.two.following.procedures. by.the.terminal.to.use.his.or.her.card.. are possible: •. Customer.handling:.card.without.PIN. •. Customer.handling:.card.with.PIN.(see.page 18). CUSTOMER HANDLING: CARD WITHOUT PIN The.amount.is.shown. Depending.on.the.card.type,.it.must.be.inserted.in.the.chip.card.reader,.held.up.to.the.contactless. reader.or.pulled.through.the.magnetic.swipe.reader..If.the.customer.uses.the.wrong.reader.for.his.or. her card,.that.person.is.instructed.to.use.the.proper.reader. If.the.TIP.function.is.activated,.after.the.original.amount.is.confirmed,.the.option.of.entering.a tip.is.also. Tip:.    (TIP)¹ offered.and.confirmed.by.pressing.<OK>..If.the.guest.does.not.wish.to.give.a tip,.he/she.can.continue. without.entering.an.amount.by.pressing.<OK>. Customer.chooses.whether.he/she.wishes.to.pay.with.DCC.or.in.CHF. 1. CHF 100.00 (DCC)² Choice? ex. rate: 1.463486 The.amount.is.shown..Confirm.the.amount.with.<OK>. Payment.is.recorded.and.authorized.online.if.necessary. Remove.the.card. The.sales.slip.is.printed.out. The.sales.slip.must.be.signed.by.the.customer.    If.a copy.is.desired.➞ press.1. 1.:.Copy If.no.copy.is.desired.➞...
  • Page 18 CUSTOMER HANDLING: CARD WITH PIN The.amount.is.shown. Depending.on.the.card.type,.it.must.be.inserted.in.the.chip.card.reader,.held.up.to.the.contactless. reader.or.pulled.through.the.magnetic.swipe.reader..If.the.customer.uses.the.wrong.reader.for.his.or. her card,.that.person.is.instructed.to.use.the.proper.reader. If.the.TIP.function.is.activated,.after.the.original.amount.is.confirmed,.the.option.of.entering.a tip.is.also. Tip:.    (TIP)¹ offered.and.confirmed.by.pressing.<OK>..If.the.guest.does.not.wish.to.give.a tip,.he/she.can.continue. without.entering.an.amount.by.pressing.<OK>. Customer.chooses.whether.he/she.wishes.to.pay.with.DCC.or.in.CHF. 1. CHF 100.00 (DCC)² Choice? ex. rate: 1.463486 The.total.is.displayed.and.the.customer.is.requested.to.enter.the.PIN.code.(4-.to.6­digit).and.to.confirm. <PIN>   (CLP)³ with.<OK>..If.the.amount.is.incorrect,.the.transaction.can.be.aborted.using.<STOP>.. Timeout: The.process.will.be.aborted.if.the.processing.does.not.occur.within.30.seconds. Payment.is.recorded.and.authorized.online.if.necessary. Remove.the.card. The.sales.slip.is.printed.out. The.sales.slip.must.be.signed.by.the.customer.    If.a copy.is.desired.➞.press.1. 1.:.Copy If.no.copy.is.desired.➞ press.2. If.no.button.is.pressed,.the.copy.will.be.automatically.printed.out.after.10.seconds. 2.:.No.copy ¹.

  • Page 19: Purchase.authorized.per.phone

    PURCHASE AUTHORIZED PER PHONE <2> PHONE AUTHORISED CCC representative.by.telephone..With.the.function.“Phone. This.purchase.mode.is.used.when.the.authorisation.cannot. authorised”,.the.transaction.will.be.recorded.later. be made.automatically..The.authorisation.code.is.issued.by.a. CASHIER HANDLING Press.“2”..The.“Phone.authorized”.function.is.activated. 2:.Phone.authorized If.the.“foreign.currency”.function.is.activated.on.this.terminal,.then.the.desired.currency.must.be.select. <Currency> *.Menu.only.appears.if.2.or.more.currencies.are.activated. Enter.the.amount.and.confirm.with.<OK>.. Amount   The.amount.must.be.separated.with.a decimal.point.. For.amounts.below.CHF.1.00,.a zero.“0”.must.be.entered.first.(e.g.,.CHF.0.55). If.the.cardholder.prefers.to.make.a transaction.in.CHF,.this.can.be.selected.with.the.“CHF”.function.button. (DCC)¹ Enter.the.authorization.code.and.confirm.with.<OK>. Authorization.code   Card.handling.according.to.pages.17.and.18,.or.page.16.for.manual.entry. ¹. . T his.menu.item.is.only.shown.if.DCC.is.activated..The.terminal.automatically.recognizes.if.the.card.is.one.that.is.in.a DCC­capable.foreign.currency.and.automatically.chooses.DCC.. Otherwise,.the.transaction.will.be.processed.in.CHF..If.the.cardholder.. p refers.to.make.a transaction.in.CHF,.this.can.be.selected.with.the.“CHF”.function.button..As.soon.as.the.card. has.been.read.in,.CHF.can.no.longer.be.selected! CANCELLATION <3> CANCELLATION •. With.some.CCC’s.this.function.may.not.be.activated. The.purchase.which.has.just been made.can.be..

  • Page 20: Credit

    CREDIT <4> CREDIT A.purchase.that.has.been.made.can.be.corrected.using.the. “Credit”.function..This.is.used.if.a cancellation.is.no.longer. . p ossible. CASHIER HANDLING Press.“4”..“Credit”.will.be.activated. 4.:.Credit Enter.the.password.and.confirm.with.<OK>.. Password   (See.the.configuration.sheet.for.the.password) If.the.“foreign.currency”.function.is.activated.on.this.terminal,.then.the.desired.currency.must be selected. <Currency> *.Menu.only.appears.if.2.or.more.currencies.are.activated. Enter.the.amount.and.confirm.with.<OK>.. Amount   The.amount.must.be.separated.with.a decimal.point.. For.amounts.below.CHF.1.00,.a zero.“0”.must.be.entered.first.(e.g.,.CHF.0.55). If.DCC.is.activated,.then.the.date.of.the.original.transaction.must.also.be.entered. Orig..Trx.date (DCC) (YYYYMMDD) The.amount.is.shown.and.the.card.requested. Card.handling.according.to.pages.17.and.18,.or.page.16.for.manual.entry.. The cashier signs the sales slip! ADDITIONAL TRANSACTIONS In.addition.to.the.payment.types.described,.your.terminal.also. <7> CASH ADVANCE contains.other.functions.that.are.generally.only.used.very.rarely..

  • Page 21: Balances

    BALANCES START USER SHIFT/END USER SHIFT, DAILY CLOSING, DATA TRANSMISSION <STOP> <2> BALANCES You.can.enter.the.terminal’s.main.menu.using.the.<STOP>.button..Select.the.“Balances”.function.<2>.. You.then.have.the.following.options: <STOP> <2> <1> START USER SHIFT (O) You.can.start.a user.shift.autonomously.when.you.begin.working..If.you.attempt.to.make.a trans. a ction.after.the.end.of.a shift. or daily.closing,.then.the.terminal.automatically.starts.a new.shift. <STOP> <2> <2> END USER SHIFT (O) With.the.“End.user.shift”.function.you.end.the.current.shift..Delivery.of.the.transactions.is.carried.out.automatically.. The.daily.closing,.however,.remains.open. ➞ No further cancellations can be made after a shift end. ➞...

  • Page 22: Queries (Totals), Settings

    QUERIES (TOTALS), SETTINGS <STOP> <3> QUERIES You.can.enter.the.terminal’s.main.menu.using.the.<STOP>.button..Select.the.“Queries”.function.<3>.. You.then.have.the.following.options: <STOP> <3> <1> SHIFT COUNTER The.current.status.of.the.active.shift.is.printed.out.. <STOP> <3> <2> DAILY COUNTER The.current.status.since.the.last.daily.closing.is.printed.out.. <STOP> <3> <3> TRX LOG INFO The.current.status.of.transactions.since.the.last.data.transmission.is.listed.. <STOP> <3> <5> PRINT LAST TICKET A.copy.of.the.last.sales.slip.is.printed.out. <STOP> <4> SETTINGS You.can.enter.the.terminal’s.main.menu.using.the.<STOP>.button..Select.the.“Settings”.function.<4>.. You.then.have.the.following.options: <STOP> <4> <1> TRM LANGUAGE The.terminal.language.can.be.adjusted..

  • Page 23: Setup

    SETUP <STOP> <5> SETUP ➞ PASSWORD IS REQUESTED You.can.enter.the.terminal’s.main.menu.using.the.<STOP>.button..Select.the.<Setup>.function.<5>.. The.following.terminal­specific.functions.can.be.carried.out..The.following.functions.require.a password.. You.can.find.your.password.in.the.“Configuration.instructions.for.yoximo”. <STOP> <5> <1> CONFIGURATION The.terminal.calls.the.service.centre.and.obtains.the.latest.configuration.parameters.in.the.event.that.they.have.changed.. <STOP> <5> <2> INITIALISATION You.can.re­initialise.individual.or.all.activated.card.products. <STOP> <5> <3> SW UPDATE The.terminal.calls.the.service.host.and.downloads.the.latest.software.version,.if.one.exists.. The.software.download.may.require.. s everal.minutes..Please.connect.the.terminal.to.the.power.supply.for.this.purpose. <STOP> <5> <4> TRM RESET This.function.is.only.available.to.the.service.technicians.and.is.protected.by.a separate.password. <STOP> <5> <5> INFO The.terminal.ID.and.the.current.software.version.are.displayed.

  • Page 24: Additional Services

    ADDITIONAL SERVICES <STOP> <6> ADDITIONAL SERVICES Pressing.the.<STOP>.button.takes.you.to.the.main.menu.of.the.terminal..Select.function.<6>.. A dditional.services.. The.terminal­specific.functions.indicated.can.be.executed. <STOP> <6> <1> TFS SETTINGS This.menu.leads.to.the.Tax­Free.Service.settings. <STOP> <6> <2> <1> ACTIVATE TAX-FREE In.this.sub­menu,.the.Tax­Free.Service.of.the.desired.provider.can.be.activated. <STOP> <6> <2> <5> DEACTIVATE TFS In.this.sub­menu,.the.Tax­Free.Service.of.the.provider.used.can.be.deactivated. MAINTENANCE AND HANDLING 10.1 IDENTIFYING AND SOLVING ERRORS NO DISPLAY HOST TIMEOUT If.the.terminal.is.not.placed.on.the.loading.station.or.programmed.

  • Page 25: Improve.the.battery.life

    10.2 IMPROVE THE BATTERY LIFE To.save.even.more.energy.when.operating.your.terminal,. In.order.to.improve.the.battery.life.of.the.terminal,.first.activate. SIX Payment.Services.has.developed.a setting.whereby.the. Powermanagement.. . t erminal.automatically.switches.to.standby.mode.when.set. to the.appropriate.programme.. Select.the.following.entries.on.the.menu.in.your.terminal.using. the.keypad: <4> Settings <5> Powermanagement Enter Terminal Selection <Password> <1> Power saving <2> Best performance <3> Balanced Confirm using <OK> button Reboot Terminal Your.selected.option.will.only.come.into.effect.once.you.have.rebooted.the.terminal. The.following.settings.for.Powermanagement.are.available: Best.performance/Balance •.
  • Page 26 YOUR LOCAL POINT OF CONTACT CAN BE FOUND AT: six-payment-services.com/contacts six-payment-services.com worldline.com 110.0270.02.INT_EN/09.2020...
