Reading The Serial Number - Pro DVX APPC-10SLB Firmware Update

Reading the serial number

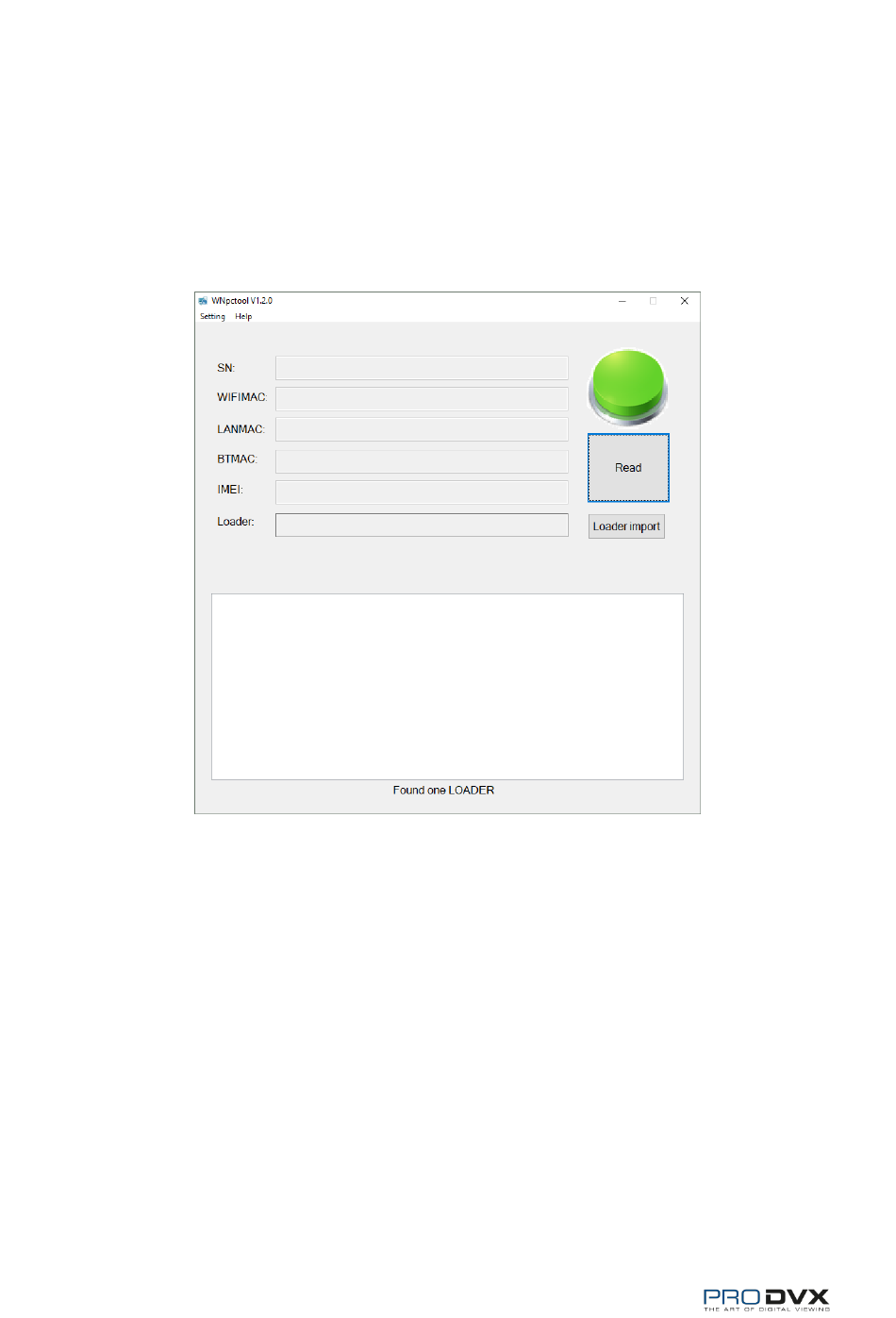

Unpack WNpctool_Setup_V1.2.0.0522.zip and run the installation file
WNpctool_Setup_V1.2.0.0522.exe. Follow the wizard an set your preferred installation. WNpctool
will now start.
Connect the device with pc with the USB-cable while keeping the plus part of the volume control
pressed. Keep it pressed and simultaneously turn the device on. If done correctly the red button will
turn green and at the bottom of the window "Found one LOADER" will be displayed.
Go to Setting menu and be sure the option Read is checked. select Mode to open the Mode window
and check the select box on the SN tab. Optionally you can check the boxes of the MAC address tabs
if you also want to read the MAC addresses on the device.
3
