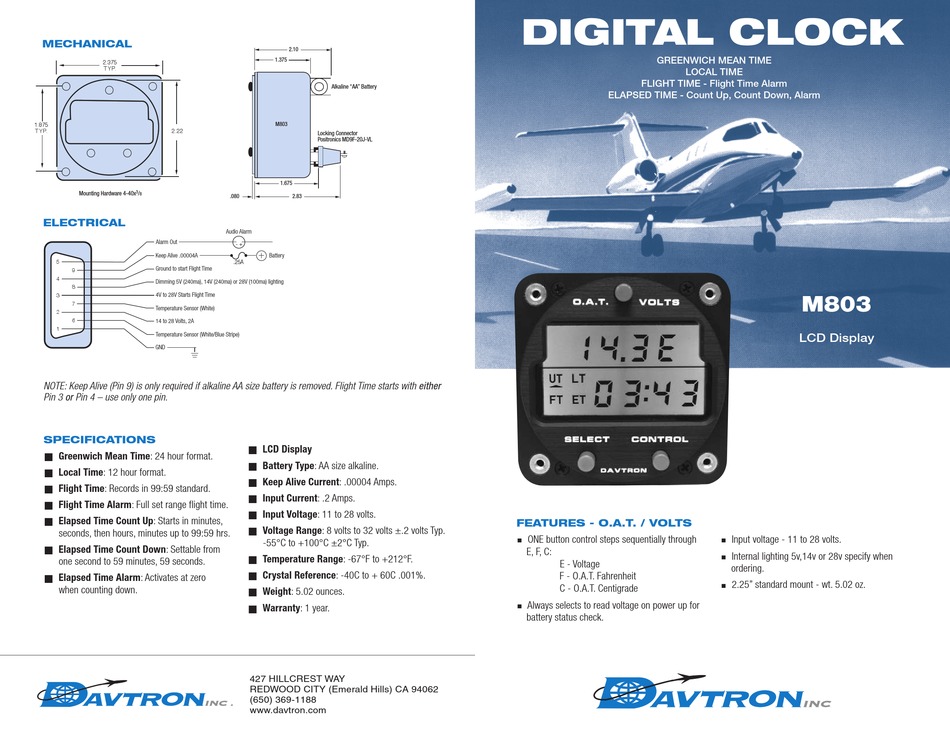

Davtron M803 Quick Start Manual

MECHANICAL
2.375
TYP.
1.875
TYP. 2.22
3
Mounting Hardware 4-40x /
8
ELECTRICAL
Alarm Out
Keep Alive .00004A
5
Ground to start Flight Time
9
4
Dimming 5V (240ma), 14V (240ma) or 28V (100ma) lighting
8
4V to 28V Starts Flight Time
3
7
Temperature Sensor (White)
2
6 14 to 28 Volts, 2A
1
Temperature Sensor (White/Blue Stripe)
GND
NOTE: Keep Alive (Pin 9) is only required if alkaline AA size battery is removed. Flight Time starts with either
Pin 3 or Pin 4 – use only one pin.
SPECIFICATIONS
Greenwich Mean Time: 24 hour format.
n
n Local Time: 12 hour format.
n Flight Time: Records in 99:59 standard.
n Flight Time Alarm: Full set range flight time.
Elapsed Time Count Up: Starts in minutes,
n
seconds, then hours, minutes up to 99:59 hrs.
n Elapsed Time Count Down: Settable from
one second to 59 minutes, 59 seconds.
n Elapsed Time Alarm: Activates at zero
when counting down.
2.10
1.375
Alkaline "AA" Battery
M803
Locking Connector
Positronics MD9F-20J-VL
1.675
.080 2.83
Audio Alarm
- +
+
Battery
.25A
LCD Display
n
n Battery Type: AA size alkaline.
Keep Alive Current: .00004 Amps.
n
n Input Current: .2 Amps.
n Input Voltage: 11 to 28 volts.
n Voltage Range: 8 volts to 32 volts ±.2 volts Typ.
-55°C to +100°C ±2°C Typ.
Temperature Range: -67°F to +212°F.
n
n Crystal Reference: -40C to + 60C .001%.
n Weight: 5.02 ounces.
n Warranty: 1 year.

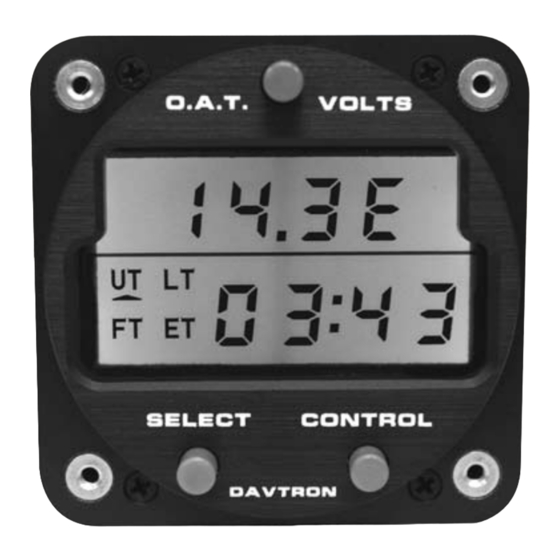

DIGITAL CLOCK
GREENWICH MEAN TIME
LOCAL TIME
FLIGHT TIME - Flight Time Alarm
ELAPSED TIME - Count Up, Count Down, Alarm
FEATURES - O.A.T. / VOLTS
ß ONE button control steps sequentially through
E, F, C:
E - Voltage
F - O.A.T. Fahrenheit
C - O.A.T. Centigrade
ß Always selects to read voltage on power up for
battery status check.
M803
LCD Display
ß Input voltage - 11 to 28 volts.
ß Internal lighting 5v,14v or 28v specify when
ordering.
ß 2.25" standard mount - wt. 5.02 oz.
