FLIR Raymarine CPT-90DVS Installation Instructions

CPT-90DVS / CPT-100DVS
Installation instructions
Warning: Product installation and
operation
• This product must be installed and operated in
accordance with the instructions provided. Failure
to do so could result in personal injury, damage to
your vessel and/or poor product performance.
• Raymarine recommends certified installation
by a Raymarine approved installer. A certified
installation qualifies for enhanced product
warranty benefits. Contact your Raymarine dealer
for further details, and refer to the separate
warranty document packed with your product.
Warning: High voltages
This product may contain high voltages. Do NOT
remove any covers or otherwise attempt to access
internal components, unless specifically instructed
in the documentation provided.
Warning: Switch off power supply
Ensure the vessel's power supply is switched OFF
before starting to install this product. Do NOT
connect or disconnect equipment with the power
switched on, unless instructed in this document.
Caution: Service and maintenance
This product contains no user serviceable
components. Please refer all maintenance
and repair to authorized Raymarine dealers.
Unauthorized repair may affect your warranty.
Caution: Transducer cable
• Do NOT use the transducer cable to lift or
suspend the transducer; always support the
transducer body directly during installation.
• Do NOT cut, shorten, or splice the transducer
cable.
• Do NOT remove the connector.
If the cable is cut, it cannot be repaired. Cutting
the cable will also void the warranty.
Caution: Product cleaning
When cleaning products:
• Lightly rinse or flush with clean, cool fresh
water.
• If your product has a display screen, do NOT
wipe the screen with a dry cloth, as this could
scratch the screen coating.
• Do NOT use: abrasive, acidic, ammonia,
solvent of chemical based cleaning products.
• Do NOT use a jet wash.
Document number: 88065-2 AA;3945;2017-05-11T09:30:39

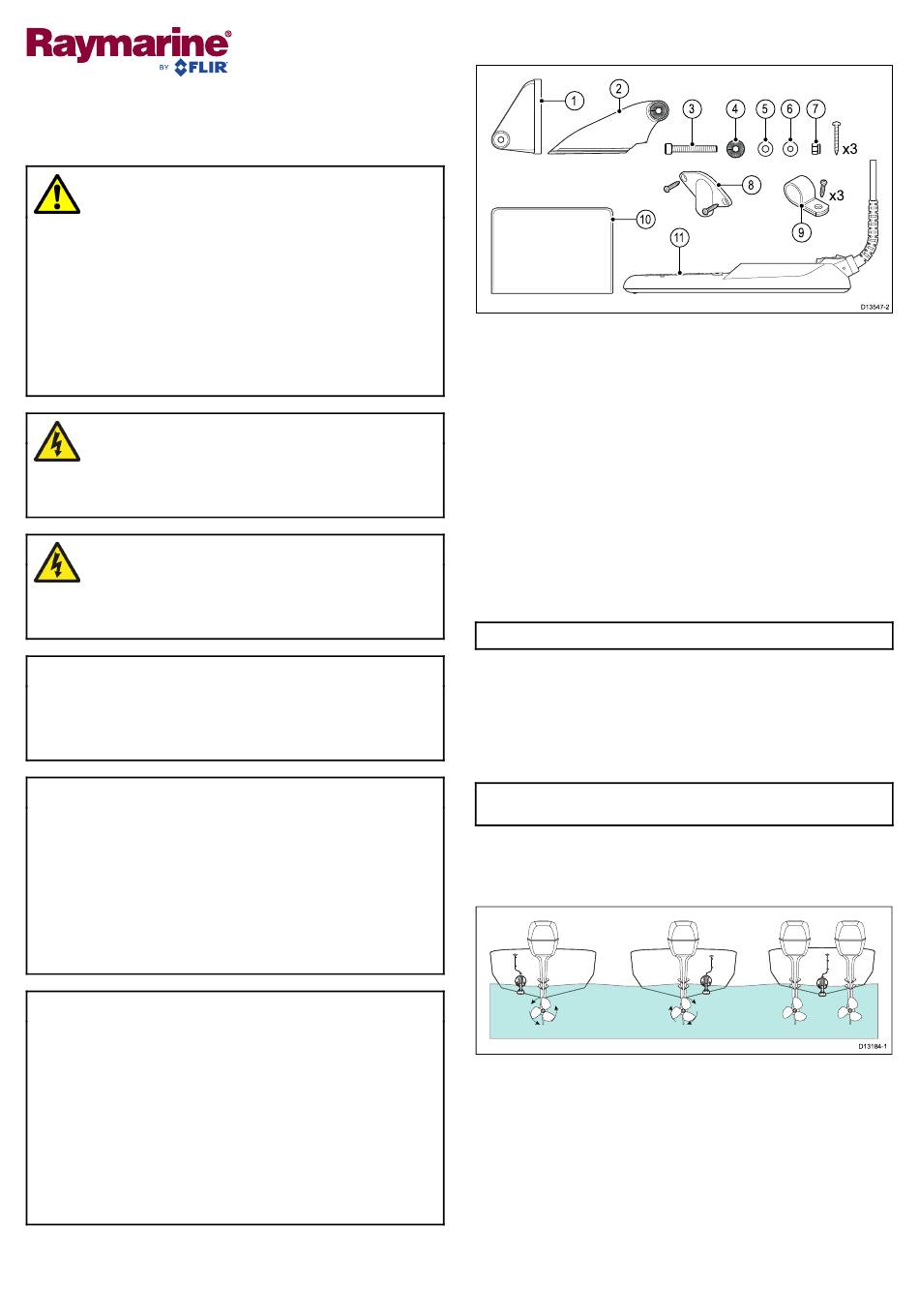

Parts supplied
1. Mounting bracket
2. Ratchet arm
3. M5 Hex ratchet bolt
4. Ratchet plate
5. Compression washer
6. M5 washer
7. M5 locking nut
8. *Escutcheon (for through-transom cable routing), plus 2
screws
9. *P-clips and 3 screws
10. Documentation
11. Transducer with cable
Note: * NOT supplied with CPT-90DVS variant.
Selecting a location for the transducer
This product is supplied with a transom mount transducer. The
guidelines below should be followed when selecting a location
for the transducer.
Note: The transducer is not suitable for mounting on vessels
where the transom is aft of the propeller(s).
For best performance the transducer must be installed in a
location with the least turbulence and aeration. The most effective
way to determine this is by checking the water flow around the
transom whilst underway.
• Mount close to the keel (centerline), in a position where the
transducer element will be fully submerged when the vessel
is planing and turning.
• Mount a suitable distance from the propeller(s) to avoid wake.
• For clockwise rotating propellers, mount the transducer on the
starboard side, for counter-clockwise, mount on the port side.
• On a twin engine vessel mount the transducer between the
engines.
• Turbulence can be caused by a number of other factors such
as steps (1), ribs (2), rows of rivets (3) and strakes (4). The
turbulence appears aft of these locations.
Date: 05-2017
