Airtel Xstream User Manual

USER
MANUAL
Inclusions

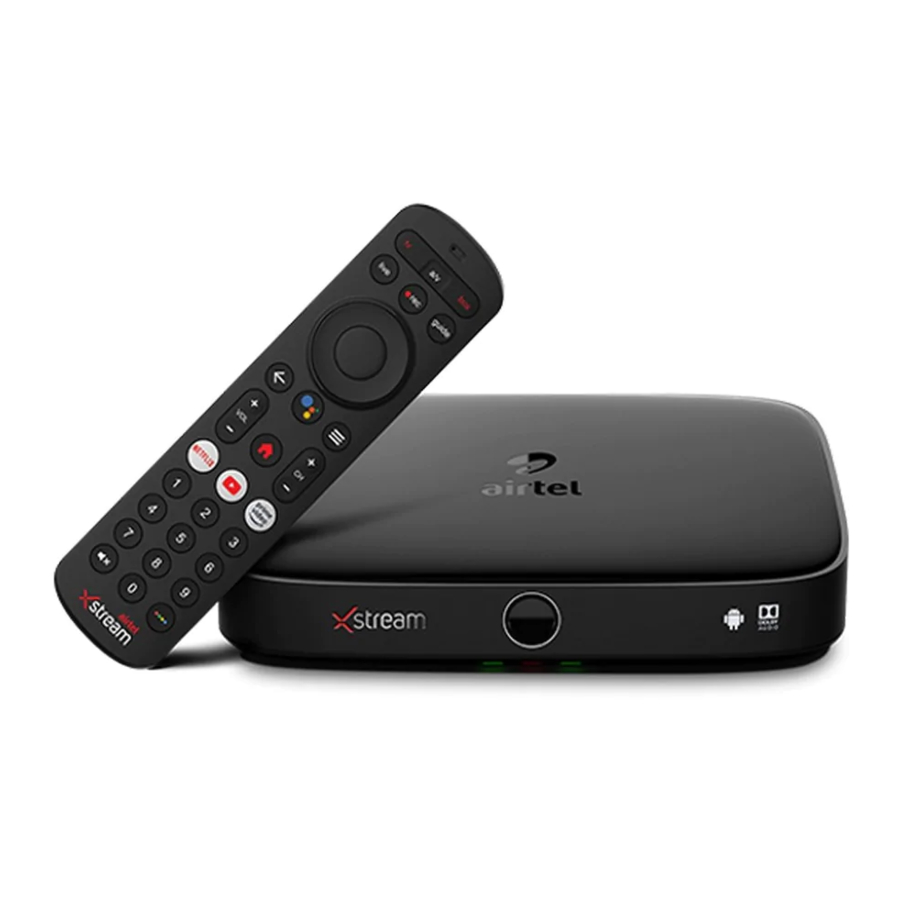

Xstream Box (A)
HDMI Cable (B)
Remote (C)
Power Adaptor (D)
Know your Xstream Box
Rear Panel
4
7
6
2
1 5 8
3
1. SAT IN 4. SPDIF
2. Audio Out (L/R) 5. HDMI Out
Connect to the Audio
3. Video Out
Connect to the Video in
6. USB Port
Jack on a TV or monitor
*Airtel Xstream Box supports latest HDMI 2.0 with backward compatibility. Customer's TV should
be HDCP compliant to use the Amazon Prime, Netflix or any other app which demands the same.
Getting Started
1
Connect HDMI cable (provided with
box) to HDMI port (2) at rear of
Xstream box.
3
Connect other end of power adaptor to
DC IN port (4) at rear of Xstream box.
5
Front Panel
Wifi
7. ETHERNET
8. Power
Connect to the HDMI IN Connect the supplied
Jack on an HDMI compatible AC adaptor
TV or monitor
I
Connect your signal cable (coming
from antenna) to SAT IN port(1) at rear
of Xstream box.
II
III
Connect other end of HDMI cable
to TV's HDMI port (3).
IV 4
V
Connect power adaptor to power
switch(5), turn on TV & Xstream box.
Power
2
