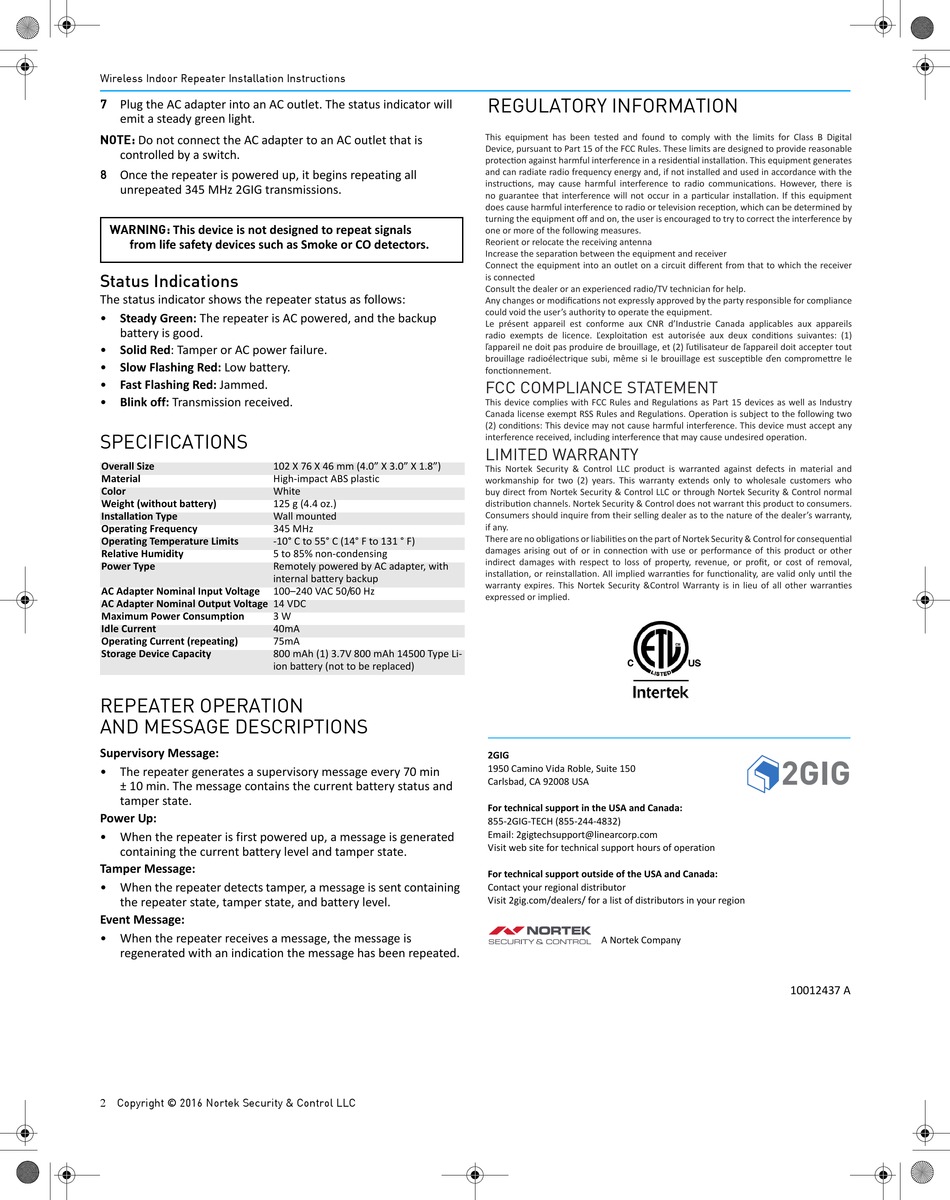

Wireless Indoor Repeater Installation Instructions
Plug the AC adapter into an AC outlet. The status indicator will
7
emit a steady green light.
Do not connect the AC adapter to an AC outlet that is
NOTE:
controlled by a switch.
8 Once the repeater is powered up, it begins repeating all
unrepeated 345 MHz 2GIG transmissions.
WARNING: This device is not designed to repeat signals
from life safety devices such as Smoke or CO detectors.

Status Indications

The status indicator shows the repeater status as follows:
• Steady Green: The repeater is AC powered, and the backup
battery is good.
• Solid Red: Tamper or AC power failure.
• Slow Flashing Red: Low battery.
• Fast Flashing Red: Jammed.
• Blink off: Transmission received.

SPECIFICATIONS

Overall Size 102 X 76 X 46 mm (4.0" X 3.0" X 1.8")
Material High‐impact ABS plastic
Color White
Weight (without battery) 125 g (4.4 oz.)
Installation Type Wall mounted
Operating Frequency 345 MHz
Operating Temperature Limits ‐10° C to 55° C (14° F to 131 ° F)
Relative Humidity 5 to 85% non‐condensing
Power Type Remotely powered by AC adapter, with
internal battery backup
AC Adapter Nominal Input Voltage 100–240 VAC 50/60 Hz
AC Adapter Nominal Output Voltage 14 VDC
Maximum Power Consumption 3 W
Idle Current 40mA
Operating Current (repeating) 75mA
Storage Device Capacity 800 mAh (1) 3.7V 800 mAh 14500 Type Li‐
ion battery (not to be replaced)
REPEATER OPERATION
AND MESSAGE DESCRIPTIONS
Supervisory Message:
• The repeater generates a supervisory message every 70 min
± 10 min. The message contains the current battery status and
tamper state.
Power Up:
• When the repeater is first powered up, a message is generated
containing the current battery level and tamper state.
Tamper Message:
• When the repeater detects tamper, a message is sent containing
the repeater state, tamper state, and battery level.
Event Message:
• When the repeater receives a message, the message is
regenerated with an indication the message has been repeated.
2
Copyright © 2016 Nortek Security & Control LLC
REGULATORY INFORMATION
This equipment has been tested and found to comply with the limits for Class B Digital
Device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protec on against harmful interference in a residen al installa on. This equipment generates
and can radiate radio frequency energy and, if not installed and used in accordance with the
instruc ons, may cause harmful interference to radio communica ons. However, there is
no guarantee that interference will not occur in a par cular installa on. If this equipment
does cause harmful interference to radio or television recep on, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures.
Reorient or relocate the receiving antenna
Increase the separa on between the equipment and receiver
Connect the equipment into an outlet on a circuit diff erent from that to which the receiver
is connected
Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifi ca ons not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. Ľexploita on est autorisée aux deux condi ons suivantes: (1)
ľappareil ne doit pas produire de brouillage, et (2) ľu lisateur de ľappareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage est suscep ble ďen comprome re le
fonc onnement.
FCC COMPLIANCE STATEMENT
This device complies with FCC Rules and Regula ons as Part 15 devices as well as Industry
Canada license exempt RSS Rules and Regula ons. Opera on is subject to the following two
(2) condi ons: This device may not cause harmful interference. This device must accept any
interference received, including interference that may cause undesired opera on.
LIMITED WARRANTY
This Nortek Security & Control LLC product is warranted against defects in material and
workmanship for two (2) years. This warranty extends only to wholesale customers who
buy direct from Nortek Security & Control LLC or through Nortek Security & Control normal
distribu on channels. Nortek Security & Control does not warrant this product to consumers.
Consumers should inquire from their selling dealer as to the nature of the dealer's warranty,
if any.
There are no obliga ons or liabili es on the part of Nortek Security & Control for consequen al
damages arising out of or in connec on with use or performance of this product or other
indirect damages with respect to loss of property, revenue, or profi t, or cost of removal,
installa on, or reinstalla on. All implied warran es for func onality, are valid only un l the
warranty expires. This Nortek Security &Control Warranty is in lieu of all other warran es
expressed or implied.
2GIG
1950 Camino Vida Roble, Suite 150
Carlsbad, CA 92008 USA
For technical support in the USA and Canada:
855‐2GIG‐TECH (855‐244‐4832)
Email: 2gigtechsupport@linearcorp.com
Visit web site for technical support hours of operation
For technical support outside of the USA and Canada:
Contact your regional distributor
Visit 2gig.com/dealers/ for a list of distributors in your region
