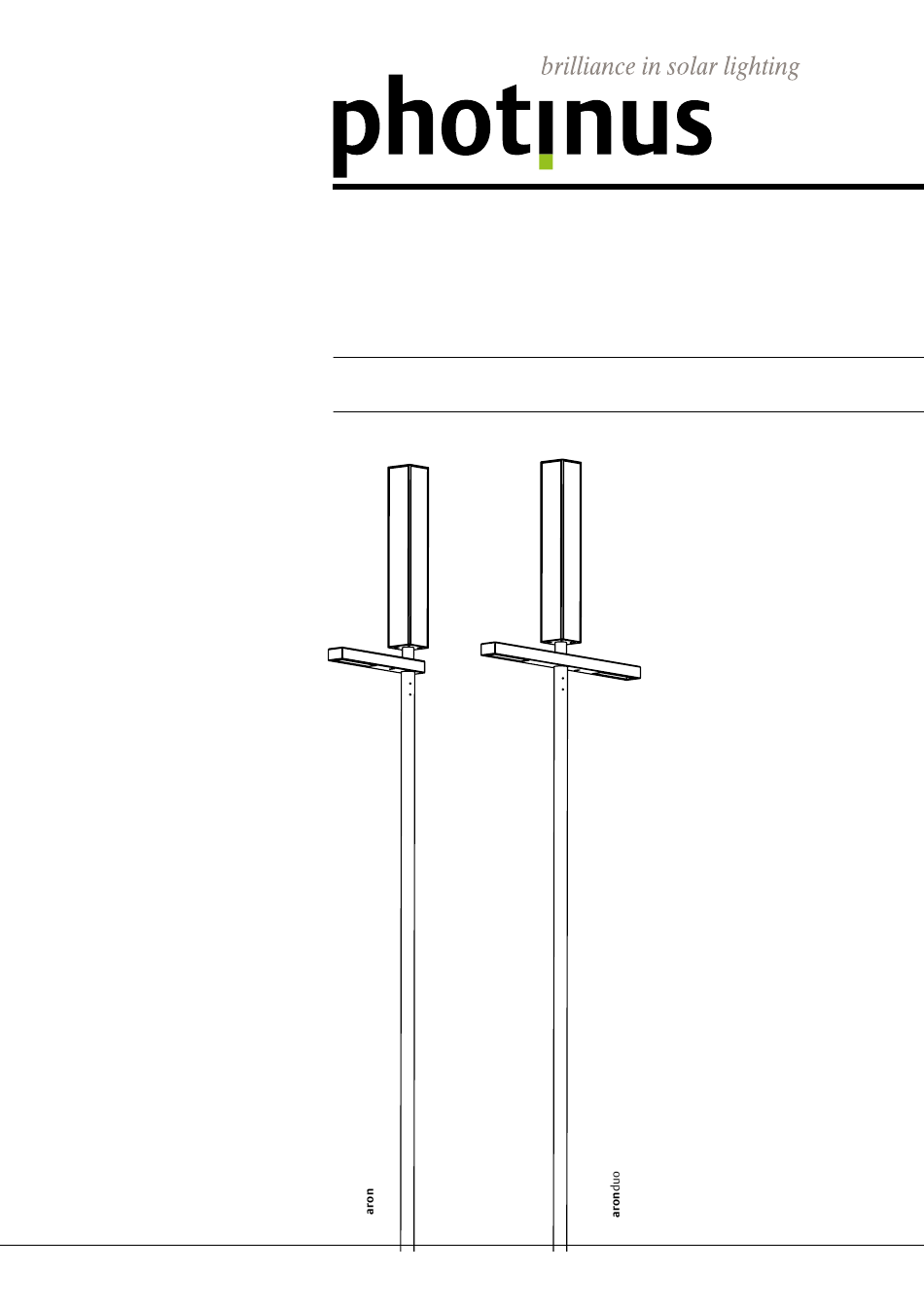

- Page 1 INSTALLATIONSANLEITUNG INSTALLATION INSTRUCTION V.1|2019 aron www.photinus.at...
- Page 2 LIEFERUMFANG / INCLUDED PARTS J-6x BENÖTIGTES WERKZEUG IHRERSEITS / TOOLS REQUIRED 1 Inbusschlüssel / Allen Wrench 4 www.photinus.at | Installation aron | 2019...
- Page 3 AKKU UND LICHTMAST / BATTERY AND POLE Akku / Battery Akku / Battery www.photinus.at | Installation aron | 2019...
- Page 4 PHOTOVOLTAIK MODUL / PHOTOVOLTAIC MODULE www.photinus.at | Installation aron | 2019...
- Page 5 MOUNTING POSSIBILITY 1 - PIPE FOUNDATION MAST DURCHMESSER 90mm POLE DIAMETER 90mm BETONRING 10cm CONCRETE RING 10cm BETONROHR 30cm Ø CONCRETE PIPE 30cm Ø AKKU / BATTERY ERDREICH / SOIL KIES / GRAVEL /SAND DRAINAGE (KIES/GRAVEL) CA DN 300 www.photinus.at | Installation aron | 2019...
- Page 6 MONTAGEMÖGLICHKEIT 2 - SCHRAUBFUNDAMENT MOUNTING POSSIBILITY 2 - GROUND SCREW FOUNDATION KRINNER Screw Foundation Art. 26160: KSF E140x1600-E76-100 Art. 26813: Exzentersatz - E90 MAST DURCHMESSER 90 mm POLE DIAMETER 90 mm AKKU / BATTERY ERDREICH / SOIL www.photinus.at | Installation aron | 2019...
