Cordless Pistol Drill
Product Instructions
Part number
6151762130
6151762150
6151762170
6151762530
6151762540
6151762550
WARNING
Printed Matter No. 6159929520_EN
Issue No.
01
Date
12/2020
Page
1 / 16
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Desoutter XPB-1000
Summary of Contents for Desoutter XPB-1000

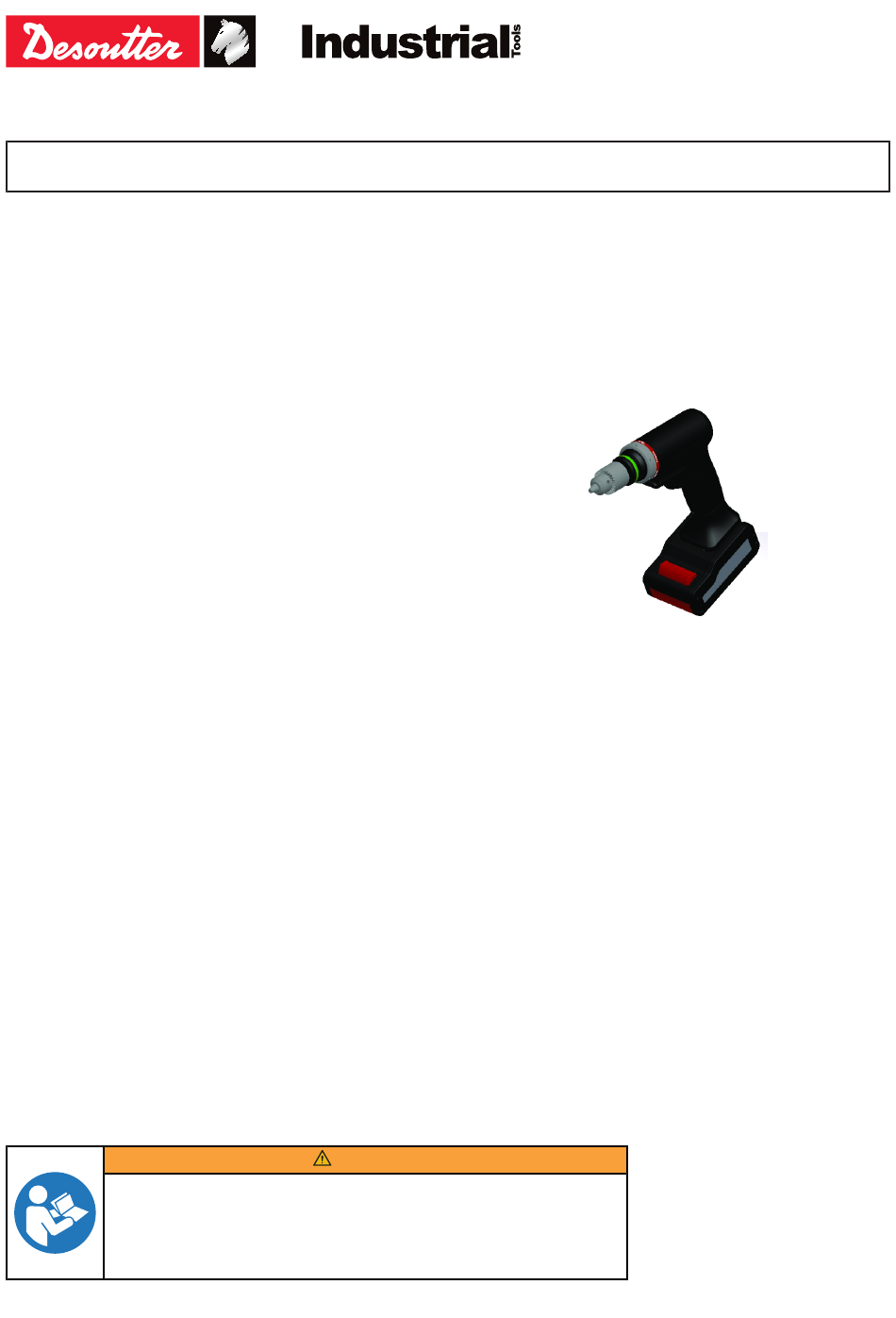

- Page 1 Printed Matter No. 6159929520_EN Issue No. Date 12/2020 Page 1 / 16 Cordless Pistol Drill Product Instructions Model Part number XPB-1000 6151762130 XPB-3000 6151762150 XPB-6000 6151762170 XPB-1000-C6.5 6151762530 XPB-3000-C6.5 6151762540 XPB-6000-C6.5 6151762550 Download the latest version of this document at http://www.desouttertools.com/info/6159929520_EN...
-
Page 2: Table Of Contents
Table of Contents Product Information .......................... 3 General Information......................... 3 Warranty.......................... 3 Website .......................... 3 Information about spare parts .................... 3 Dimensions .......................... 4 CAD files .......................... 4 Overview ............................ 4 General overview ......................... 4 Product description ...................... 5 Technical data........................ 5 Accessories.......................... 6 Installation.............................. 7 Installation Instructions........................ 7 Inserting the battery pack..................... 7 How to connect the tool to XPB Config ................ 7 Operation.............................. 8 Configuration Instructions........................ 8 How to get information about the tool .................. 8... -
Page 3: Product Information
• The product warranty relies on the correct use, maintenance, and repair of the tool and its component parts. • Damage to parts that occurs as a result of inadequate maintenance or performed by parties other than Desoutter or their Certified Service Partners during the warranty period is not covered by the warranty. -
Page 4: Dimensions
Product Information Dimensions Model -1000 44.5 -3000 44.5 -6000 44.5 Model -1000 -3000 -6000 Model -1000 7.68 1.75 6.34 1.81 2.05 -3000 7.24 1.75 6.34 1.81 2.05 -6000 7.24 1.75 6.34 1.81 2.05 Model -1000 1.50 1.26 1.81 7.24 -3000 1.50 1.26 1.81... -
Page 5: Product Description

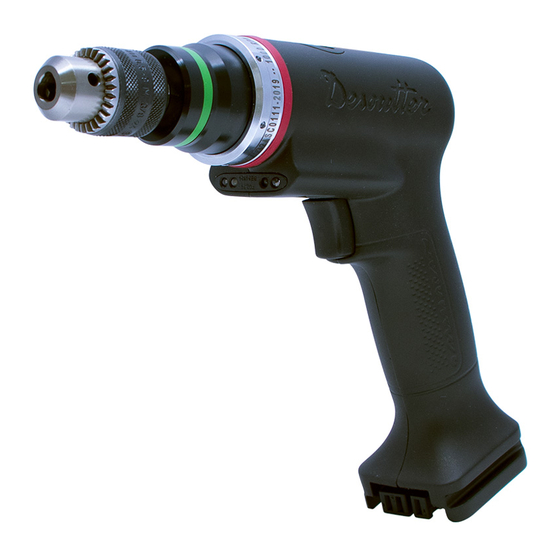

Product Information They are hand-held by the operator and powered by a Desoutter battery pack. Tools are equipped with a double-step trigger which allows to adjust the drilling speed to the material. Tool settings are done with XPB Config. At the end of the drilling cycle, the Pulse mode feature (enabled by default) allows to free the cutting tool from chips stuck in the drilling hole. -
Page 6: Accessories
Product Information Model (kg) (lb) XPB-1000-C6.5 0.96 2.12 XPB-3000-C6.5 0.89 1.96 XPB-6000-C6.5 0.90 1.98 The weight is given without the battery pack. Storage and use conditions Storage temperature -20 to +70 °C (-4 to +158 F) Operating temperature 0 to 45 °C (32 to 113 F) -
Page 7: Installation
Installation Installation Installation Instructions Inserting the battery pack Insert the battery pack in front or behind the tool until a locking sound can be clearly heard. There is no ON/OFF switch: the tool is ready to operate as soon as a battery pack is mounted. When the tool is powered on, tool LEDs are blinking. -
Page 8: Operation
How to get information about the tool Connect the tool to XPB Config. Go to the tab Tool configuration. The following information is displayed. • Desoutter serial number • Tool firmware version • Battery level • Number of drilling cycles executed (Counter) since the manufacturing date. -
Page 9: How To Set Up Speeds
Operation The counter of the number of drillings done with the current cutting tool is displayed. You can reset this counter by clicking Reset counter. In the box Cycle counter limit, enter the number of drilling cycles (from 0 to 1,000,000) at which the tool will be stopped. -
Page 10: Operating Instructions
Operation Pulse mode is enabled by default. At the end of the drilling cycle, this feature allows to free the cutting tool from chips stuck in the drilling hole. Click this button to update the tool. Operating Instructions How to use the tool WARNING Do not start the tool before assuring that the drill head is correctly assembled to the drive unit. -
Page 11: Service
500,000 drilling cycles Upgrading tool firmware Contact your Desoutter representative to get the last version of firmware (.zip file). The firmware version of the tool is displayed in the screen Tool configuration. Copy/paste the .zip file at C:\Program Files (x86)\Desoutter\XPB Config (directory by default) . -
Page 12: Troubleshooting
4 red flashing lights and blue LED on Maintenance - Tool counter reached Send the tool to plant maintenance. 5 red flashing lights Battery pack Change the battery pack. Lights flashing indefinitely Configuration error or hardware failure Contact your Desoutter representative. 12 / 16 12/2020... - Page 16 Original instructions Founded in 1914 and headquartered in France, Desoutter Industrial Tools is a global leader in electric and pneumatic assembly tools serving a wide range of assembly and manufacturing operations, including Aerospace, Automotive, Light and Heavy Vehicles, Off-Road, General Industry.
