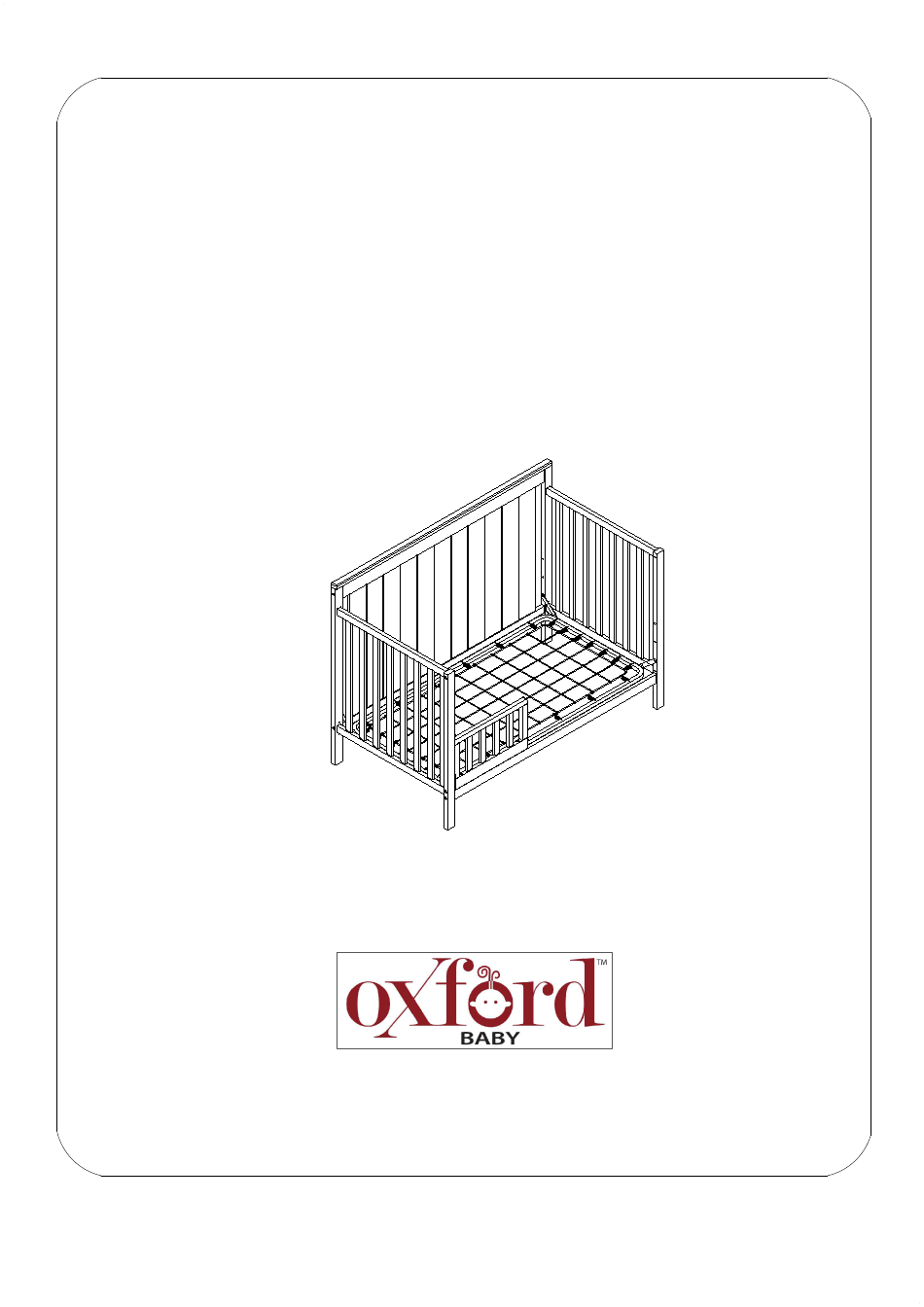

- Page 1 ASSEMBLY INSTRUCTIONS for Guard Rail LAZIO 4 IN 1 CONVERTIBLE CRIB Model #11795 90-11795-V-01 1 of 5...
- Page 2 (D) Allen key (1 pc) (length may vary) (C) Spring washer (3 pcs) Do not fully tighten all bolts until all parts are in place. (please add an extra 1/2 revolution to the bolts when using spring washer after tightening) 90-11795-V-01 2 of 5...
- Page 3 STEP 1 " UNINSTALL FOOTBOARD FRAME" THIS STEP REQUIRES: THIS STEP REQUIRES (D) Allen key (1 pc) FIG.1 Remove the Footboard frame (5) by unscrewing (4 pcs) Allen bolt. 90-11795-V-01 3 of 5...
- Page 4 - Remove the Allenbolt 9/16"(15 mm) (K) on the Mattress spring. - Move Mattress spring to the lowest position as shown in FIG.2. - Attach the Allenbolt 9/16"(15 mm) (K) on the lowest hole of Sideboard. -Final position as shown in FIG.3. 90-11795-V-01 4 of 5...
- Page 5 Insert the Allenbolt 1-3/4"(45 mm) (F) through the hole of middle position of mattress spring in the Footboard post and side rail of Guardrail (A) as shown in FIG.5. Tighten all bolts with Allen key (D). Assembly complete as shown in FIG.6. Thank You! 90-11795-V-01 5 of 5...
