MODEL:
CSP
CHILLED SERVER
WITH PUMP-
1 OUNCE
120V
Series 12G
94060
230V Continental Europe
Series 12G
94142
230V Australia
Series 12G
94143
230V United Kingdom
Series 12G
94144
PUMP, CSP-1 OZ
Series 12G
94040
EZ-CREAM
5/16 OUNCE
120V
Series 13E
94160
PUMP, CSP-5/16 OZ,
EZ-CREAM
Series 13E
94150
01672-REVE_102813_ENGLISH

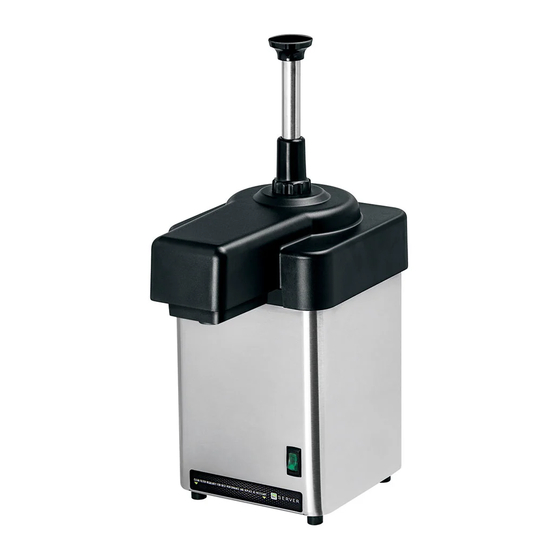

CHILLED SERVER
WITH PUMP-
2 OUNCE
120V
Series 12G
94050
230V Continental Europe
Series 12G
94145
230V Australia
Series 12G
94146
230V United Kingdom
Series 12G
94147
PUMP, CSP-2 OZ
Series 12G
94140
Advertisement
Table of Contents
Related Manuals for Server CSP
Summary of Contents for Server CSP
- Page 1 230V Australia Series 12G Series 12G 94143 94146 230V United Kingdom 230V United Kingdom Series 12G Series 12G 94144 94147 PUMP, CSP-1 OZ PUMP, CSP-2 OZ Series 12G Series 12G 94040 94140 EZ-CREAM 5/16 OUNCE 120V Series 13E 94160 PUMP, CSP-5/16 OZ,...
- Page 2 INSERT PRODUCT VESSEL INTO BASIN OF UNIT. temperature the product is required to maintain. FOOD PRODUCT MUST ALWAYS BE INSIDE Server Products, Inc. can not be responsible for PRODUCT VESSEL. NEVER PLACE FOOD PRODUCT the serving of potentially hazardous product.
-
Page 3: Unit Take-Down
LIFT OFF FILTER HOLDER BY PULLING IT OFF FROM ONE EDGE. REMOVE FILTER AND CLEAN OR REPLACE. • Server Products Inc. Pack of 5 Replacement filters: 86067 • Filter can be cleaned with hot water and dishwashing detergent. Fully rinse. -
Page 4: Pump Disassembly
PUMP DISASSEMBLY IMPORTANT PUMP AREAS TO CLEAN: CLEAN ALL SIDES OF STAINLESS STEEL BALLS BEFORE FIRST USE AND AFTER USE DAILY, CLEAN VALVE BODY PASSAGEWAY DISASSEMBLE AND CLEAN PUMP. CLEAN VALVE BODY OPENINGS PUMP OUT ALL (IF ANY) REMAINING FOOD PRODUCT FROM INSIDE PUMP BODY. -
Page 5: Pump Cleaning
CLEAN-IN-PLACE PROCEDURE PUMP CLEANING FOR PUMPS BEFORE FIRST USE AND AFTER USE DAILY, DISASSEMBLE AND CLEAN PUMP. CLEAN-IN-PLACE IS A BASIC FOUR STEP PUMP STAINLESS STEEL PARTS CAN CORRODE. FLUSHING PROCESS: CLEAN, RINSE, SANITIZE, AND IT IS IMPORTANT TO CLEAN, RINSE, SANITIZE, AND RINSE. -
Page 6: Unit Troubleshooting
cone washer valve cover VALVE COVER ASSEMBLY INSTALL CONE WASHER INTO VALVE COVER. INSTALL VALVE COVER, WITH CONE WASHER INSIDE, ONTO DISCHARGE TUBE THREADING. ROTATE VALVE COVER CLOCKWISE TO SECURE TO THREADS OF DISCHARGE TUBE. Do not use any sharp tools for assembly, this can damage parts. -
Page 7: Pump Assembly
PUMP ASSEMBLY BEFORE FIRST USE AND AFTER USE DAILY, DISASSEMBLE AND CLEAN PUMP. ASSEMBLE PLUNGER: INSTALL SEAL O-RING INSIDE SEAL. • Apply food equipment lubricant on seal o-ring. INSTALL SEAL ASSEMBLY ONTO PISTON HEAD. • Apply food equipment lubricant inside seal assembly. -
Page 8: Unit Cleaning
OR RETURNS BEFORE FIRST USE AND AFTER USE DAILY, DISASSEMBLE AND CLEAN UNIT AND PUMP. STAINLESS Before sending any item to Server Products for service, STEEL PARTS CAN CORRODE. IT IS IMPORTANT TO repair, or return, contact Server Products customer CLEAN, RINSE, SANITIZE, AND DRY THESE PARTS DAILY service to request a Return Authorization Number.
