  • Page 1 INSTRUCTION MANUAL...
  • Page 2 This manual is valid for the InTENSity 5000 Hybrid TENS Stimulator This user manual is published by Roscoe Medical, Inc. Roscoe Medical does not guarantee its contents and reserves the right to improve and amend it at any time without prior notice.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1. SAFETY INFORMATION 1.1 General 1.2 Medical background 2. PARTS 3. GENERAL WARNINGS AND SAFETY 4. INSTRUCTIONS FOR USE 4.1 Battery 4.2 Connect electrodes to lead wires 4.3 Connect lead wires to device 4.4 Electrode 4.5 Turn ON 4.6 Select the therapeutic program 4.7Adjust the pulse width and the pulse rate 4.8 Select therapy time...

  • Page 4: Safety Information

    1. SAFETY INFORMATION 1 .1 Ge ne r a l The InTENSity™ 5000 Hybrid is a battery operated TENS device that sends electrical impulses through electrodes to the body and reaches the nerves causing pain. The device is provided with two controllable output channels, each independent of each other.
  • Page 5 EXPLANATION OF TENS Transcutaneous Electrical Nerve Stimulation (TENS) is a non- invasive, drug free method of controlling pain. TENS uses tiny electrical impulses sent through the skin to nerves to modify your pain perception. TENS does not cure any physiological problem; it only helps control the pain.

  • Page 6: Parts

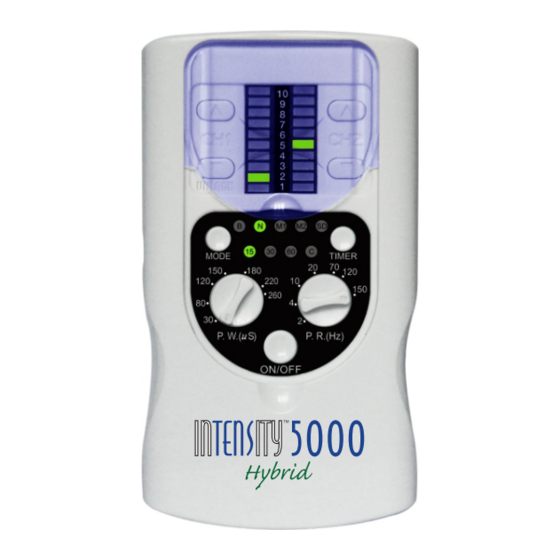

    2. PARTS About the InTENSity™ 5000 Hybrid Your InTENSity Hybrid contains: DESCRIPTION QUANTITY InTENSity™ 5000 Hybrid unit 1 PCS Electrode pads 4 PCS Cable 2 PCS User Manual 1 PCS 9 V battery, type 6F22 1 PCS Carrying case 1 PCS Main Unit Parts 1.
  • Page 7 9. Use to set the therapy mode 10. Use to set the therapy time 11. Therapy time LED indicator 12. Use to set and adjust the pulse width 13. Use to set and adjust the pulse rate 14. ON/OFF button 15.

  • Page 8: General Warnings And Safety

    3. GENERAL WARNINGS AND SAFETY B e for e y ou sta r t Please carefully read and understand the following warnings and cautions to ensure the safe and correct use of this device and to prevent injury. • Make sure the batteries are installed correctly. •...
  • Page 9 8. Do not apply stimulation over, or in proximity to, cancerous lesions. 9. Do not apply stimulation over open wounds or rashes, or over swollen, red, infected, or inflamed areas or skin eruptions (e.g., phlebitis, thrombophlebitis, varicose veins). 10. Do not apply stimulation in the presence of electronic monitoring equipment (e.g., cardiac monitors, ECG alarms), as they may not operate properly when the electrical stimulation device is in use.

  • Page 10: Instructions For Use

    experience any adverse reactions form this device, e.g. skin irritation. Adverse Reactions 1. You may experience skin irritation and burns beneath stimulation electrodes applied to your skin. 2. You may experience headache and other painful sensations during or following the application of electrical stimulation near your eyes and to your head and face.

  • Page 11: Connect Electrodes To Lead Wires

    4.1.2 Disposal of battery Dispose of used batteries according to the current federal, state and local regulations. As a consumer, you are obligated by law to discard spent batteries appropriately. CAUTION: 1. Swallowing a battery may be fatal. Keep the battery and the device out of the reach of children.

  • Page 12: Connect Lead Wires To Device

    CAUTION: Always use the electrodes with CE mark, or which are legally marketed in the U.S. under 510(K) procedure. 4.3 Connect Lead Wires to Device Before proceeding to this step, be sure the device is completely turned OFF. Insert the wires provided with the system into the jack sockets located on top of the device.
  • Page 13 4.4.2 Place Electrodes on Skin Apply electrodes to the exact site indicated by your physician or therapist. Before applying electrodes, be sure the skin surface over which electrodes are placed is thoroughly cleaned and dry. Make sure the electrodes are pressed firmly to the skin and make good contact between the skin and the electrodes.

  • Page 14: Select The Therapeutic Program

    Every patient responds to electrical stimulation differently and their needs may vary from the conventional settings suggested here. If the initial results are not positive, speak to your physician about alternative stimulation settings and/or electrode placements. Once an acceptable location has been achieved, mark down the electrode sites and the device settings, so the patient can easily continue treatment on their own.

  • Page 15: Select Therapy Time

    4.7 Select therapy time There are 4 therapy times (15, 30, 60, C) for you to select. Press the [TIMER] button, the appropriate time LED indicator will be lit. Press [TIMER] button cycle to select the therapy time. 4.9 Adjust channel intensity Press the intensity control button [▲] and [▼] to control the intensity output and you will hear a “beep”...

  • Page 16: Specification

    5. PECIFICATIONS 5 .1 Te c hnic a l infor m a tion Technical description Mechanism Dual, isolated between channels Channel Power Supply One 9 Volt Battery Adjustable,0-80 mA 03 Pulse Amplitude peak into 500 ohm load each channel Adjustable, from 2 to 150 Hz Pulse Rate Burst rate: 0.5Hz (Burst mode) Adjustable,...
  • Page 17 Modulation 2 mode is a pulse rate modulation. The pulse rate is automatically varied in a cycle pattern over an interval of nominally 10 seconds. Pulse rate decreases over Modulation 2 a period of 5 seconds from the control mode (M2) setting value to a value which is 40% less, then increase over a 5 seconds period to its original value.

  • Page 18: The Waveforms Of The Stimulation Programs

    5 .2 The wav e for m s of the s tim ula tion pr ogr a m s B ur s t(B ) 2 Burst per second 10 pulses per Burst Normal (N) Puls e Width Modula tion Puls e R a te M odula tion Cycle time SD (Strength-Duration) 10 seconds...

  • Page 19: Program

    6. PROGRAM Modulation Pulse Treatment Mode Program Frequency Method Width Time 100 Hz 15,30,60 min, Burst 30-260µs Burst: 0.5 Hz continuous 15,30,60 min, Continuous 2-150 Hz 30-260µs continuous TENS Pulse Width 15,30,60 min, 2-150 Hz 30-260µs Modulation continuous Pulse Rate 15,30,60 min, 2-150 Hz 30-260µs...

  • Page 20: Cleaning The Device

    7.2 Cleaning the Device 1. Remove the battery from the device before you clean the device. 2. Clean the device after use with a soft, slightly moistened cloth. For hard to clean situations, you can also moisten the cloth with mild soapy water. 3.
  • Page 21 TO USE THESE ELECTRODES: 1. Attach the electrode to the lead wire. 2. Remove the protective backing from the electrode surface. Do no throw away the protective backing because it can be reused after the treatment session has been completed. 3.

  • Page 22: Cleaning The Electrodes Cords

    7.4 Cleaning the Electrode’s Cords Clean the electrode cords by wiping them with a damp cloth. Coating then lightly with talcum powder will reduce tangles and prolong their life. 7.5 Maintenance 1. Maintenance and all repairs should only be carried out by an authorized agency.

  • Page 23: Troubleshooting

    8. TROUBLESHOOTING If your device does not seem to be operating correctly, refer to the chart below to determine what may be wrong. Problem Possible Cause Solution 1. Try fresh batteries. 2. Ensure batteries are inserted correctly. Check LED indicator Battery contact the following contacts: fail to light up...
  • Page 24 3. If still intermittent after replacing lead wire, a component may have failed. Call the repair department. 4. Some programs will seem intermittent. This is expected. Improper electrode Reposition electrode Stimulation and applicator and applicator. is ineffective. placement Contact clinician. unknown.

  • Page 25: Maintenance And Cautions

    9. MAINTENANCE AND CAUTIONS Do not immerse the device in water or any liquid. Do not drop or throw the device. After using the device, please remove the output plug from the output socket and re-attach the electrode pads to the protective transparent film.

  • Page 26: Glossary Of Symbols

    12. GLOSSARY OF SYMBOLS Batch code Serial number Attention: Read the operating instruction before use! Electrical devices are recyclable material and should not be disposed of with household waste after their useful life! Help us to protect the environment and save resources and take this device to the appropriate collection points.

  • Page 27: Warranty

    13. WARRANTY Please contact your dealer in case of a claim under the warranty. If you have to send the unit back to your provider, enclose a copy of your receipt and state what the defect is. The following warranty terms apply: 1.
  • Page 28 Manufactured for: Roscoe Medical 21973 Commerce Parkway Strongsville, Ohio 44149 Ph: (800)871-7858 www.roscoemedical.com...

Table of Contents
