Page 1: Instruction Manual
TOP TENS™ (DT6030) Instruction Manual Please keep this instruction manual safe for future use. -
Page 2: Table Of Contents
TABLE OF CONTENTS INDICATIONS AND CONTRAINDICATIONS…..……………….…………………… 1 WARNINGS AND PRECAUTIONS..………………………………………….……… 2 PACKAGE CONTENTS.………………..……………………………………….……… 7 ABOUT the TOP TENS™ ………...…………………………………………………… 7 STEP BY STEP OPERATION GUIDE FOR TREATMENT.…..…………………….8 Preparing the Skin for Treatment ….…………………………………..…..……… 8 Inserting 3 AAA Batteries..…………………………………………..…………….… 8 Connecting the Lead Wires to the TOP TENS™ ……………………………..… 9 Turning ON the TOP TENS™... -
Page 3: Indications And Contraindications
INDICATIONS AND CONTRAINDICATIONS Read the operation manual before using. Read instruction manual before using. Be sure to comply with all “CAUTIONS” and “WARNINGS” in the manual. Failure to follow instructions can cause harm to the user or the TOP TENS™ unit. INDICATIONS FOR USE This device is intended for temporary relief of pain associated with sore and aching muscles in the upper and lower extremities due to strain from exercise or normal household and work activities. -
Page 4: Warnings And Precautions
WARNINGS AND PRECAUTIONS Warnings ● If you are under the care of a Physician, consult with your Physician before using the TOP TENS™. ● The long-term effects of the TOP TENS™ are not known. ● Do not place the electrodes on or close to your heart. ●... - Page 5 stimulation intensity under the smaller electrode. Some programs may require the use of different sized electrodes for treatment. ● Do not use in the bath or shower, or in an environment of elevated humidity (e.g. sauna, hydrotherapy, etc). ● Operation in close proximity, such as 3 feet (1 meter), to shortwave or microwave therapy equipment may produce instability in the TOP TENS™...
- Page 6 - A menstruating or pregnant uterus. - Patient experiences skin irritation due to electrical stimulation or the electrical conductive medium used, turn off the TOP TENS™ device to discontinue stimulation, remove the electrodes, and consult your physician. Irritation may be reduced by an alternative conductive medium or an alternative electrode placement.
- Page 7 ● You take insulin for diabetes. ● You use the TOP TENS™ as part of a rehabilitation program. ● If you have suspected or diagnosed heart problem. ● If you have suspected or diagnosed epilepsy. ● If you have a tendency to bleed internally following an injury. ●...
-
Page 8: Adverse Reactions
with your TOP TENS™. Any others may not be compatible with your unit and could degrade the minimum safety levels. Use only the electrode placements and stimulation settings prescribed by your Healthcare Practitioner. ● This TOP TENS™ is for external use only. Note: If you are in any doubt about using TOP TENS™... -
Page 9: Package Contents

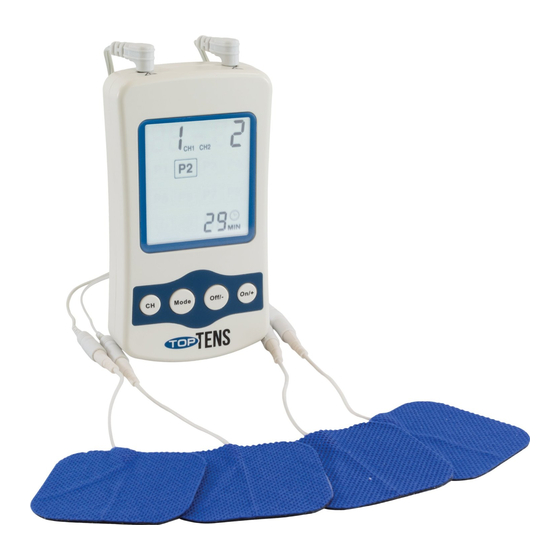

PACKAGE CONTENTS 1. DT6030 TOP TENS™ Device 4. 2 lead wires 2. 1 pack of 4 Electrodes 5. Instruction Manual. 3. 3 AAA batteries 6. Quick Start Guide TOP TENS™ device 4pcs of Electrodes 2 lead wires 3 of AAA batteries Instruction Manual ABOUT THE TOP TENS™... -
Page 10: Step By Step Operation Guide For Treatment
STEP BY STEP OPERATION GUIDE FOR TREATMENT Preparing the Skin for Treatment Proper preparation of the skin covered by the electrodes allows more stimulation to reach targeted tissues, prolongs electrode life, and reduces the risk of skin irritation. After connecting the lead wire(s) to the stimulator, use the following steps to prepare your skin at the electrode placement sites: 1. -
Page 11: Connecting The Lead Wires To The Top Tens
Connecting the Lead Wires to the TOP TENS™ Hold the insulated portion of the electrode connector and push the plug end of the lead wire into the electrode connector. Repeat for all 4 electrodes. After connecting each electrode, plug the other end of the lead wire into the TOP TENS™. -
Page 12: Turning Off The Top Tens
screen) will blink, while blinking press the On/+ (increase) or Off/- (decrease) button to adjust stimulation intensity for Channel 2. If using only one channel, you can simply leave Channel 2 at zero. • Press CH again to lock in treatment intensity. Note: You will feel intensity increase or decrease as you select the intensity level. -
Page 13: Special Features
SPECIAL FEATURES Treatment Time The TOP TENS™ offers 12 preset times: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60 minutes and C (continuous). Count down minutes is shown on the display. ● The TOP TENS™ turns off automatically when the therapy time has elapsed. ●... -
Page 14: Care And Maintenance
CARE AND MAINTENANCE The TOP TENS™ unit The TOP TENS™ may be wiped clean with a small amount of soapy water on a clean cloth. Do not submerge the TOP TENS™ in liquids or expose it to large amounts of water. ●... -
Page 15: Trouble Shooting
Trouble Shooting Always check the TOP TENS™ and accessories before use to prevent damage and defects; these are some of the simple checks: 1. Make sure the battery has sufficient charge and is in proper condition. 2. Make sure the lead wires fit tightly into the connection sockets of the TOP TENS™. The table below shows some common defects. -
Page 16: Technical Specifications / Program Details
Technical Specifications Channel : Dual, isolated between channels Pulse Intensity : Adjustable 0 – 100mA peak into 500 Ω load each channel Pulse Rate : 2 - 60Hz Pulse Width : 156 – 260uS Timer : 5-60 min (optional, 5-minute increments) and C (continuous) Wave Form : Symmetrical Bi-Phasic square pulse Power Source : 3 x AAA / 4.5 Volt batteries *All electrical specifications are ±20% at 500Ω... -
Page 17: Warranty
Warranty This TOP TENS™ device carries a one-year warranty from the date of purchase. The warranty does not apply to damage resulting from failure to follow the operating instructions, accidents, abuse, alterations or disassembly by unauthorized individuals. The warranty applies to the main device and necessary parts and labor relating thereto. Batteries, lead wires, electrodes, and other accessories are warranted to be free from defects in workmanship and materials at the time of delivery. - Page 18 Manufactured for Current Solutions, a Roscoe Medical Company 21973 Commerce Parkway Strongsville, OH 44149 1-800-871-7858 www.currentsolutionsnow.com www.roscoemedical.com Model No. WL-2407 IM-24-036 RevA12 FDA-2407...
