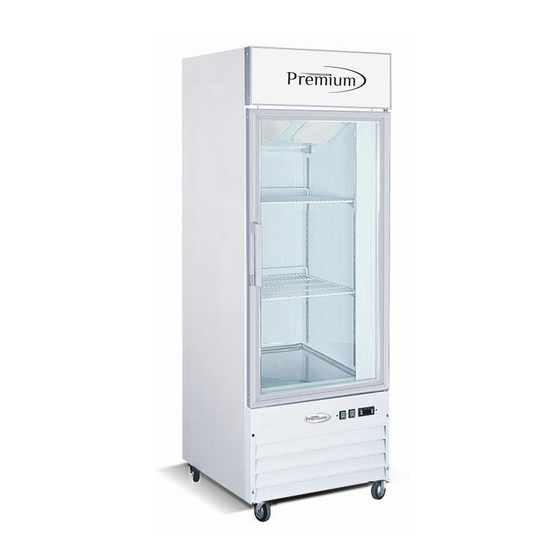

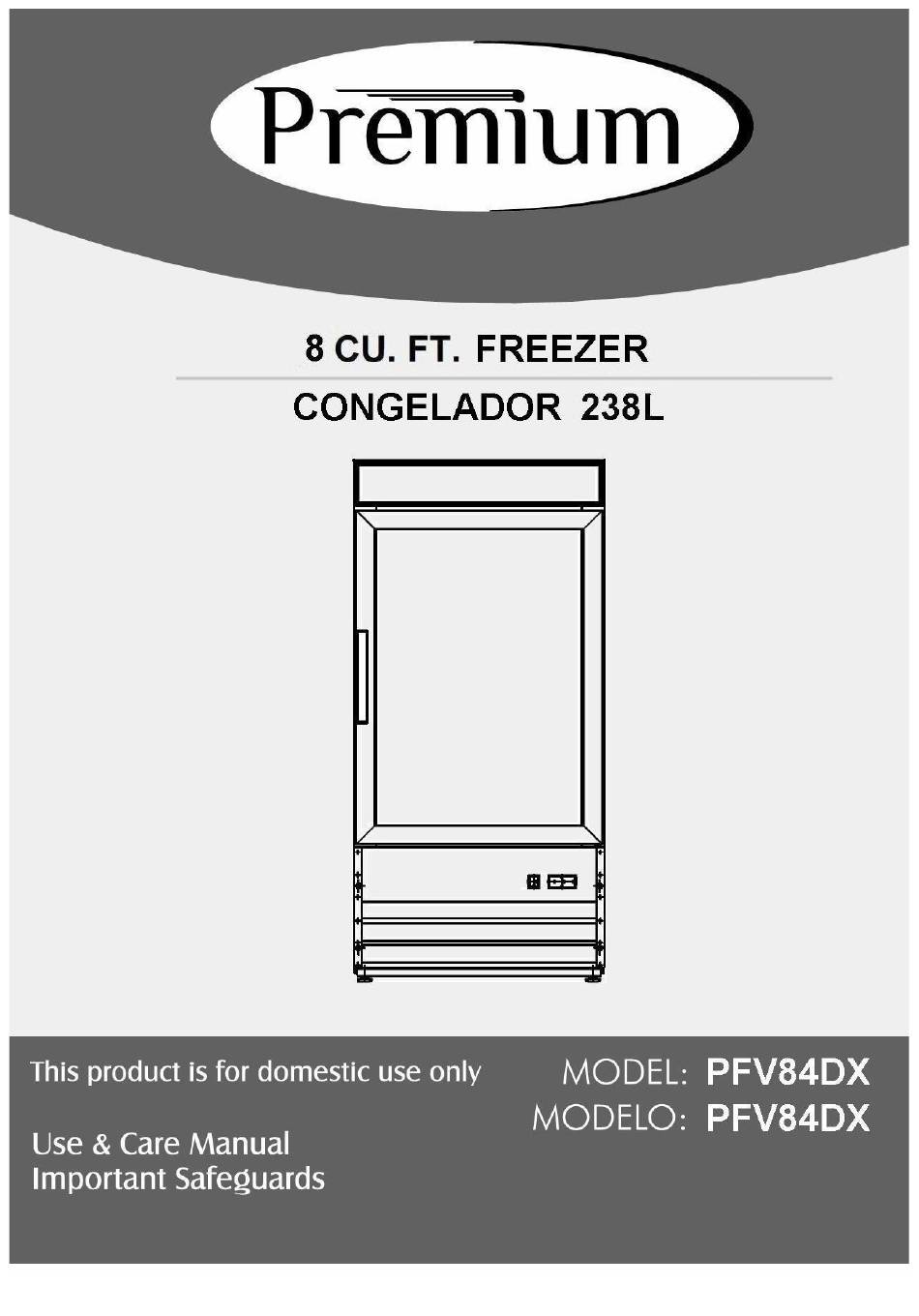

Summary of Contents for Premium PFV84DX
-
Page 2: Table Of Contents
TABLE OF CONTENTS ◆ INSTALLATION & OPERATION…………………….……………………… 1 Cabinet location and installation guidelines…………………………………. 1 Electrical ………………………………………………………………………... 3 ◆ SAFETY / WARNINGS ………………………………………………………. 5 ◆ REGULAR MAINTENANCE ………………………………………………… 6 Cleaning the condenser coil…………………………………………………..6 Cleaning the fan blade and motor …………………………………………..6 Cleaning the interior of unit…………………………………………………….. -
Page 3: Installation & Operation
IMPORTANT SAFETY INSTRUCTIONS, READ CAREFULLY AND KEEP FOR FUTURE REFERENCE INSTALLATION & OPERATION IMPORTANT!!! PLEASE READ BEFORE INSTALLATION ■ If the unit has recently been transported. Please, let unit stand still for a minimum of 24 hours before plugging it in. ■... - Page 4 ■ The appliance shall not be exposed to rain, sun CAUTION: PROBLEMS CAUSED BY UNPROPER POSITION OF UNITS ARE NOT COVERED BY WARRANTY ■ Shelf installation A. Hook shelf clips onto clip hanger B. Place shelves on shelf clips making sure all corners are seated properly C.
-
Page 5: Electrical
■ Remove the glass door bracket from the door before use ■ Caster or adjustable feet are available for the units -- Adjustable feet -- Caster with brake The caster has a brake, turn it to different side can lock or unlock the castor. - Page 6 ■ All units should be plugged into a grounded and properly-sized electrical outlet with appropriate overcurrent protection. Please refer to the electrical requirement on the nameplate. NEMA plugs NEMA 5-15P NEMA 5-20P If you do not have the right outlet have a certified electrician install the correct power source.
-
Page 7: Safety / Warnings
6) press the SET button again to confirm the new value. SAFETY / WARNINGS Please pay close attention to the safety notices in this section. Disregarding these notices may lead to serious injury and/or damage to the unit. ATTENTION ■ To minimize shock and fire hazards, be sure not to overload outlet. Please designate one outlet for your unit. -
Page 8: Regular Maintenance
REGULAR MAINTENANCE CLEANING THE CONDENSER COIL ■ For efficient operation, it is important that the condenser surface be kept free of dust, dirt, and lint. ■ We recommend cleaning the condenser coil and fins at least once per month. ■ Clean with a commercial condenser coil cleaner, available from any kitchen equipment retailer. -
Page 9: Trouble Shooting
WARNING Disconnect power cord before cleaning any parts of the unit. TROUBLE SHOOTING Before requesting any service on your unit, please check the following points. Please note that this guide serves only as a reference for solutions to common problems. SYMPTOM POSSIBLE CAUSE CORRECTIVE ACTION... - Page 10 Excessive amount of warm product Allow adequate time for placed in cabinet. product to cool down. Fuse blown or circuit breaker tripped. Replace fuse or reset circuit breaker. Dirty condenser coil. Clean the condenser coil. Prolonged door opening or door ajar. Ensure doors are closed when not in use.
